Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Basic 6-inch Suspension Lift Kit
- Front Lift - 6.0 Inch; Rear Lift 5.0 Inch
- Corrects Factory Rake for a Level Stance
- Increases Ground Clearance for Improved Off-Roading
- Twin Tube Performance Rear Shocks
- Extended Length Ductile Iron Steering Knuckles
- Coilover Spacers and Rear Lift Blocks
- Heavy Duty Steel Crossmembers
- Accommodates up to 35-inch Tall Tires
- Straight Forward Bolt-on Installation
- Not for use with OEM Wheel and Tires
- Will Not Fit Adaptive Ride Control Models
- Fits 2019-2025 2WD Sierra 1500 Crew Cab w/ Short Box, Excluding AT4 & Denali
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Lifted Stance. Add a commanding, lifted off-road stance to your 2019-2025 2WD GMC Sierra by upgrading to a Fabtech 6-Inch Basic Suspension Lift Kit that includes Performance Shocks. With 6.0 inches of lift, this kit can accommodate tires up to 35 x 12.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This Fabtech Basic Lift Kit features extended length steering knuckles as well as lift blocks, coilover spacers and lower control arm crossmembers. What’s more, the included Performance Rear Shocks provide a highly comfortable ride, even across the roughest terrain.
Performance Shocks. Fabtech included rear Performance Shocks in this kit to ensure controlled dynamics with improved handling. Each shock features a twin-tube hydraulic configuration with hardened chrome piston rods. In addition, the high-flow 9-stage valving offers reinforced damping capabilities and the closed-cell inserts reduce shock fade at high speeds.
Iron Steering Knuckles. Fabtech includes a set of heavy duty, extended length steering knuckles in their 6-inch Basic Suspension Lift Kit. These steering knuckles are manufactured from ductile iron for superior strength. The knuckles have a near stock track width that keeps your tires under the fenders for a clean appearance.
Lift Blocks and Coilover Spacers. Front lift is obtained by relocating the factory Coilovers with heavy duty lower mounts to raise the vehicle while retaining the stock ride quality. This positions the Coilover properly to provide 6 inches of lift without coil bind or over extending the travel that can lead to damaged suspension parts in the future. Rear lift is accomplished by removing the factory blocks and replacing them with the included 5-inch lift blocks and u-bolts.
Crossmembers. The lower control arm crossmembers are constructed from 1/4-inch thick steel plate for superior strength. The welded box design of these lower control arm crossmembers will provide additional strength to the front suspension. These crossmembers retain factory alignment cams for easy adjustment.
No Welding Required. Fabtech engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 6 hours time.
Application. This Fabtech 6-Inch Basic Suspension Lift Kit with Performance Shocks is designed to fit 2019-2025 2WD GMC Sierra 1500 Crew Cab models with Short Box, excludes AT4 and Denali.
Technical Note. Will not fit models equipped with adaptive ride control. Not for use with OEM wheels and tires.
Recommended Tire Wheel Sizes.
Performance Shocks. Fabtech included rear Performance Shocks in this kit to ensure controlled dynamics with improved handling. Each shock features a twin-tube hydraulic configuration with hardened chrome piston rods. In addition, the high-flow 9-stage valving offers reinforced damping capabilities and the closed-cell inserts reduce shock fade at high speeds.
Iron Steering Knuckles. Fabtech includes a set of heavy duty, extended length steering knuckles in their 6-inch Basic Suspension Lift Kit. These steering knuckles are manufactured from ductile iron for superior strength. The knuckles have a near stock track width that keeps your tires under the fenders for a clean appearance.
Lift Blocks and Coilover Spacers. Front lift is obtained by relocating the factory Coilovers with heavy duty lower mounts to raise the vehicle while retaining the stock ride quality. This positions the Coilover properly to provide 6 inches of lift without coil bind or over extending the travel that can lead to damaged suspension parts in the future. Rear lift is accomplished by removing the factory blocks and replacing them with the included 5-inch lift blocks and u-bolts.
Crossmembers. The lower control arm crossmembers are constructed from 1/4-inch thick steel plate for superior strength. The welded box design of these lower control arm crossmembers will provide additional strength to the front suspension. These crossmembers retain factory alignment cams for easy adjustment.
No Welding Required. Fabtech engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 6 hours time.
Application. This Fabtech 6-Inch Basic Suspension Lift Kit with Performance Shocks is designed to fit 2019-2025 2WD GMC Sierra 1500 Crew Cab models with Short Box, excludes AT4 and Denali.
Technical Note. Will not fit models equipped with adaptive ride control. Not for use with OEM wheels and tires.
Recommended Tire Wheel Sizes.
- 35/12.50R18 - 18x9 with 5-inch backspacing, with minor trimming
- 295/70R18 - 18x9 with 5-inch backspacing, with minor trimming
- 35/12.50R20 - 20x9 with 5-inch backspacing, with minor trimming
- 295/65R20 - 20x9 with 5-inch backspacing, with minor trimming
Fitment:
- 2019 GMC Sierra 1500
- 2020 GMC Sierra 1500
- 2021 GMC Sierra 1500
- 2022 GMC Sierra 1500
- 2023 GMC Sierra 1500
- 2024 GMC Sierra 1500
- 2025 GMC Sierra 1500
Fabtech K1150
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

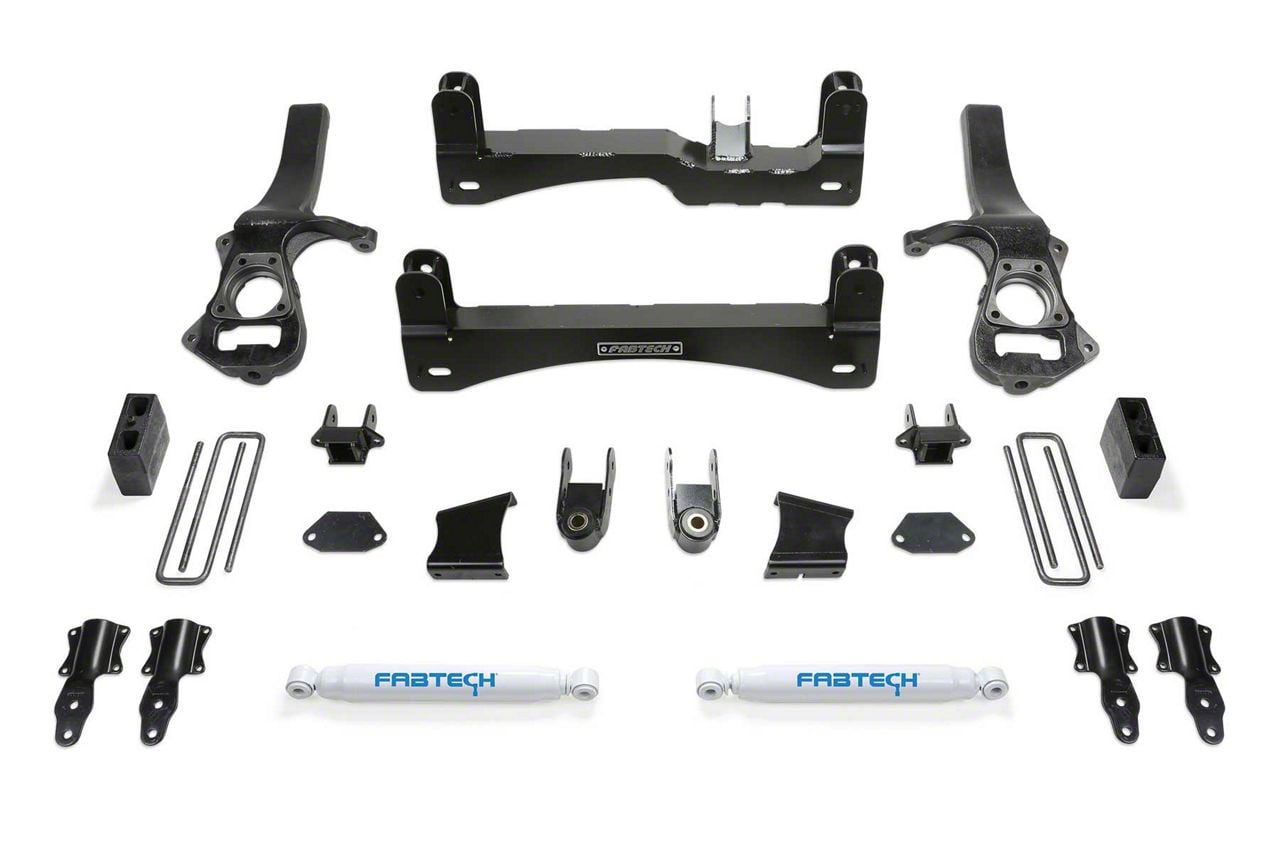

Installation & What's in the Box
Installation Info
What's in the Box
- (1) Front Crossmember
- (1) Rear Crossmember
- (1) Sway Bar Frame Bracket - Driver Side
- (1) Sway Bar Frame Bracket - Passenger Side
- (1) Steering Knuckle Spindle - Driver Side
- (1) Steering Knuckle Spindle - Passenger Side
- (2) Rear Lift Blocks
- (4) U Bolts
- (2) Axle Spacers
- (2) Tie Rod Ends
- (2) Rear Brake Line Brackets
- (2) Rear Bumpstop Spacers
- (2) Rear Performance Shocks
- Installation Hardware
