Find 3 Inch to 5 Inch Lift Kits for your Sierra 1500
Fabtech 4-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks (19-25 Sierra 1500 AT4, Excluding Diesel)Find parts that fit my vehicle
Item S511519
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
24 Reviews
Our Price
$4,351.92 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Performance 4-inch Suspension Lift Kit
- Front Lift - 4.0 Inch; Rear Lift 3.0 Inch
- Corrects Factory Rake for a Level Stance
- Increases Ground Clearance for Improved Off-Roading
- Dirt Logic 2.5 Reservoir Front Coil-Overs
- Dirt Logic 2.25 Rear Shocks
- Extended Length Ductile Iron Steering Knuckles
- Steel Rear Lift Blocks
- Heavy Duty Steel Crossmembers and Skid Plate
- Accommodates up to 35-inch Tall Tires
- Straight Forward Bolt-on Installation
- Not for use with OEM Wheel and Tires
- Will Not Fit Adaptive Ride Control Models
- Fits 2019-2025 GMC Sierra 1500 AT4 4WD, Excluding Diesel
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Lifted Stance. Add a commanding, lifted off-road stance to your 2019-2025 AT4 Sierra by upgrading to a Fabtech 4-Inch Performance Suspension Lift Kit that includes Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks. With 4.0 inches of lift, this kit can accommodate tires up to 35 x 12.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This Fabtech Performance Lift Kit features extended length steering knuckles as well as lift blocks, front differential skid plate and lower control arm crossmembers. What’s more, the included Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks provide incredible dampening capacity for aggressive off-road driving.
Dirt Logic 2.5 Reservoir Front Coil-Overs. Fabtech includes Dirt Logic 2.5 Reservoir Front Coil-Overs in this kit to ensure controlled dynamics with improved handling. These Coil-Overs have 2.5-inch OD stainless steel bodies with a 2.25-inch OD billet aluminum piston and 7/8-inch NitroSteel® black piston rods. With an adjustable Coil-over construction, these Coil-Overs feature cold wound coil springs and 5/8-inch spherical ball mounting ends. Additionally, these Coil-overs feature a 2.50-inch OD aluminum reservoir with -8 stainless steel O-ring hose.
Dirt Logic 2.25 Rear Shocks. Fabtech Dirt Logic 2.25 Rear Shocks ensure a superior ride, both on and off road. These Rear Shocks have 2.25-inch OD stainless steel bodies with a 2.0-inch OD billet aluminum piston and 7/8-inch NitroSteel® black piston rods. These Shocks are specifically pre-tuned for Fabtech suspensions, accounting for larger tires, providing the finest all around damping.
Iron Steering Knuckles. Fabtech includes a set of heavy duty, extended length steering knuckles in their 4-inch Performance Suspension Lift Kit. These steering knuckles are manufactured from ductile iron for superior strength. The knuckles have a near stock track width that keeps your tires under the fenders for a clean appearance.
Rear Lift Blocks. Rear lift is accomplished by removing the factory blocks and replacing them with the included 5-inch lift blocks and u-bolts. The included u bolts and fasteners allow for a straight forward installation. These lift blocks are cast from iron steel for superior strength.
Skid Plate and Crossmembers. Both the front differential skid plate and lower control arm crossmembers are constructed from 1/4-inch thick steel plate for superior strength. The skid plate will protect the front differential from rocks and obstacles, while the lower control arm crossmembers will provide additional strength to the front suspension. The crossmembers retains factory alignment cams for easy adjustment.
No Welding Required. Fabtech engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 6 hours time.
Application. This Fabtech 4-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks is designed to fit 2019-2025 Sierra 1500 AT4 4WD models, excluding diesel.
Technical Note. Will not fit models equipped with adaptive ride control. Not for use with OEM wheels and tires.
Recommended Tire Wheel Sizes.
Dirt Logic 2.5 Reservoir Front Coil-Overs. Fabtech includes Dirt Logic 2.5 Reservoir Front Coil-Overs in this kit to ensure controlled dynamics with improved handling. These Coil-Overs have 2.5-inch OD stainless steel bodies with a 2.25-inch OD billet aluminum piston and 7/8-inch NitroSteel® black piston rods. With an adjustable Coil-over construction, these Coil-Overs feature cold wound coil springs and 5/8-inch spherical ball mounting ends. Additionally, these Coil-overs feature a 2.50-inch OD aluminum reservoir with -8 stainless steel O-ring hose.
Dirt Logic 2.25 Rear Shocks. Fabtech Dirt Logic 2.25 Rear Shocks ensure a superior ride, both on and off road. These Rear Shocks have 2.25-inch OD stainless steel bodies with a 2.0-inch OD billet aluminum piston and 7/8-inch NitroSteel® black piston rods. These Shocks are specifically pre-tuned for Fabtech suspensions, accounting for larger tires, providing the finest all around damping.
Iron Steering Knuckles. Fabtech includes a set of heavy duty, extended length steering knuckles in their 4-inch Performance Suspension Lift Kit. These steering knuckles are manufactured from ductile iron for superior strength. The knuckles have a near stock track width that keeps your tires under the fenders for a clean appearance.
Rear Lift Blocks. Rear lift is accomplished by removing the factory blocks and replacing them with the included 5-inch lift blocks and u-bolts. The included u bolts and fasteners allow for a straight forward installation. These lift blocks are cast from iron steel for superior strength.
Skid Plate and Crossmembers. Both the front differential skid plate and lower control arm crossmembers are constructed from 1/4-inch thick steel plate for superior strength. The skid plate will protect the front differential from rocks and obstacles, while the lower control arm crossmembers will provide additional strength to the front suspension. The crossmembers retains factory alignment cams for easy adjustment.
No Welding Required. Fabtech engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 6 hours time.
Application. This Fabtech 4-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks is designed to fit 2019-2025 Sierra 1500 AT4 4WD models, excluding diesel.
Technical Note. Will not fit models equipped with adaptive ride control. Not for use with OEM wheels and tires.
Recommended Tire Wheel Sizes.
- 35/12.50R18 - 18x9 with 5-inch backspacing, with minor trimming
- 295/70R18 - 18x9 with 5-inch backspacing, with minor trimming
- 35/12.50R20 - 20x9 with 5-inch backspacing, with minor trimming
- 295/65R20 - 20x9 with 5-inch backspacing, with minor trimming
Fitment:
- 2019 GMC Sierra 1500
- 2020 GMC Sierra 1500
- 2021 GMC Sierra 1500
- 2022 GMC Sierra 1500
- 2023 GMC Sierra 1500
- 2024 GMC Sierra 1500
- 2025 GMC Sierra 1500
Fabtech K1141DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

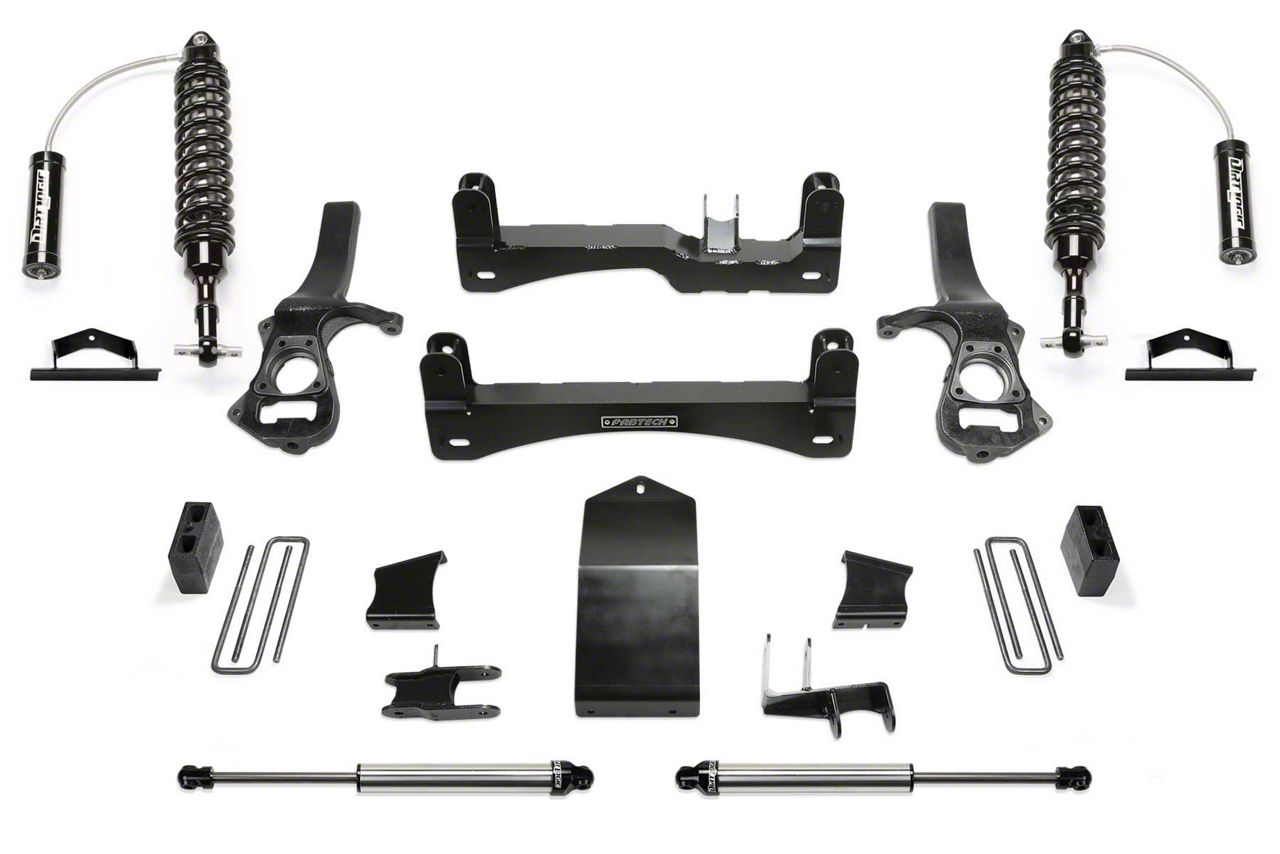

What's in the Box
- (1) Front Crossmember
- (1) Rear Crossmember
- (1) Differential Bracket - Driver Side
- (1) Differential Bracket - Passenger Side
- (1) Sway Bar Frame Bracket - Driver Side
- (1) Sway Bar Frame Bracket - Passenger Side
- (1) Differential Skid Plate
- (1) Steering Knuckle Spindle - Driver Side
- (1) Steering Knuckle Spindle - Passenger Side
- (2) Rear Lift Blocks
- (4) U Bolts
- (2) Axle Spacers
- (2) Tie Rod Ends
- (2) Rear Brake Line Brackets
- (2) Rear Bumpstop Spacers
- (2) Dirt Logic 2.5 Reservoir Coilover Front Shocks
- (2) Dirt Logic 2.25 Rear Shocks
- Installation Hardware
4.6
Customer Reviews (24)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 1500
- 3.0L I6 Duramax - 20, 21, 22, 23, 24
- 5.3L V8 - 19, 20, 21
- 6.2L V8 - 19, 20, 21, 22, 23, 24, 25
