Find 1-2" Lift Kits for your Sierra 1500

Fabtech 1.50-Inch Ball Joint Upper Control Arm Lift Kit with Performance Shocks (19-25 Sierra 1500 AT4, Excluding Diesel)Find parts that fit my vehicle

Item S511508
Product Image
Fabtech 1.50-Inch Ball Joint Upper Control Arm Lift Kit with Performance Shocks (19-25 Sierra 1500 AT4, Excluding Diesel)
Verify parts fit and get product recommendations.
Sierra 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
24 Reviews
Our Price

$814.81 kit

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Suspension Lift Kit
      • Front Lift - 1.5 Inch; Rear Lift 1.0 Inch
      • Corrects Factory Rake for a Level Stance
      • Increases Ground Clearance for Improved Off-Roading
      • Tubular Upper Control Arms with Heavy Duty Ball Joints
      • Twin Tube Performance Rear Shocks
      • Aluminum Strut Spacer
      • Steel Rear Lift Blocks
      • Accommodates up to 33-inch Tall Tires
      • Straight Forward Bolt-on Installation
      • Not for use with OEM Wheel and Tires
      • Will Not Fit Adaptive Ride Control Models
      • Fits 2019-2024 GMC Sierra 1500 AT4 4WD, Excluding Standard Cab and Diesel

      Description

      Bolder Stance. Give your AT4 Sierra a commanding, off-road stance by upgrading to a Fabtech 1.5-Inch Ball Joint Upper Control Arm Lift Kit that includes Rear Performance Shocks. With 1.5 inches of lift, this kit can accommodate tires up to 33 x 12.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This Fabtech Lift Kit features tubular upper control arms with heavy-duty ball joints, as well as lift blocks and strut spacers. What’s more, the included Performance Rear Shocks provide a highly comfortable ride, even across the roughest terrain.

      Performance Shocks. Fabtech included rear Performance Shocks in this kit to ensure controlled dynamics with improved handling. Each shock features a twin-tube hydraulic configuration with hardened chrome piston rods. In addition, the high-flow 9-stage valving offers reinforced damping capabilities and the closed-cell inserts reduce shock fade at high speeds.

      Upper Control Arms. This Fabtech Lift Kit includes a set of tubular Upper Control Arms equipped with heavy-duty ball joints for improved directional stability and better handling. These upper ball joints allow for extended travel to eliminate binding and provide a smooth quiet ride.

      Lift Blocks and Spacers. Lift is obtained with the use of an aluminum spacer at the top and a small preload spacer under the coil of the factory Coilover shock. This positions the Coilover properly to provide additional height without coil bind or over extending the travel that can lead to damaged suspension parts in the future. Rear lift comes from 1-inch blocks and u bolts.

      No Welding Required. Fabtech engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 4 hours time.

      Application. This Fabtech 1.50-Inch Ball Joint Upper Control Arm Lift Kit with Performance Shocks is designed to fit 2019-2024 GMC Sierra 1500 AT4 4WD models, excluding standard cab and Diesel.

      Technical Note. Will not fit models equipped with adaptive ride control. Not for use with OEM wheels and tires.

      Recommended Tire Wheel Sizes.

      • 33/12.50R18 - 18x9 with 5-inch backspacing, with minor trimming
      • 295/65R18 - 18x9 with 5-inch backspacing, with minor trimming
      • 33/12.50R20 - 20x9 with 5-inch backspacing, with minor trimming
      • 295/55R20 - 20x9 with 5-inch backspacing, with minor trimming

      Fitment:

      Details

      Fabtech K1152

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

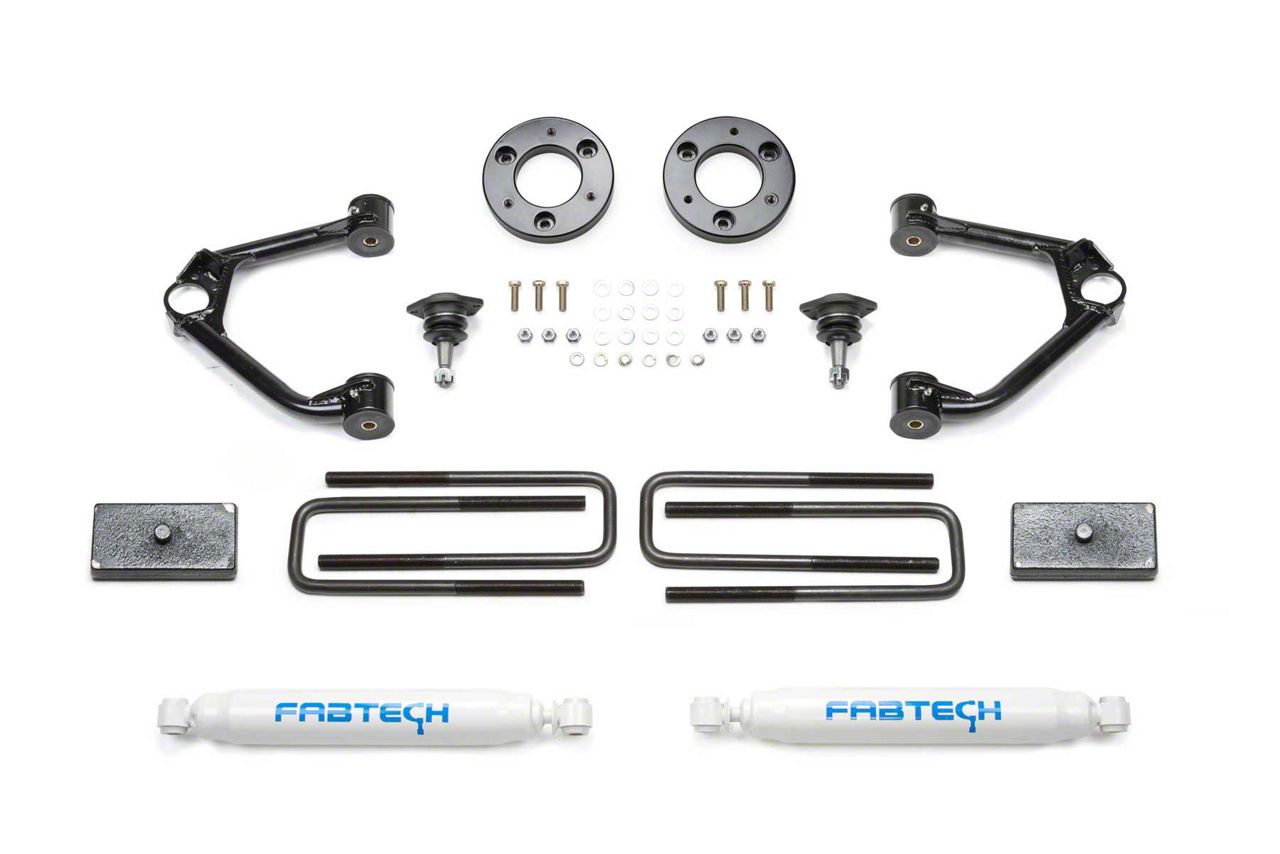

      What's in the Box

      • (2) Ball Joints
      • (2) Upper Shock Spacers
      • (1) Upper Control Arm - Driver Side
      • (1) Upper Control Arm - Passenger Side
      • (2) Rear Lift Blocks
      • (4) U Bolts
      • (2) Rear Performance Shocks
      • Installation Hardware
      4.6

      Customer Reviews (24)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 1500

      • 3.0L I6 Duramax - 20, 21, 22, 23, 24
      • 5.3L V8 - 19, 20, 21
      • 6.2L V8 - 19, 20, 21, 22, 23, 24
