2019-2024
2009-2018
2002-2008
Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Ram 1500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find 6 Inch to 8 Inch Lift Kits for your Ram 1500
Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks (19-24 4WD RAM 1500 w/o Air Ride, Excluding EcoDiesel, Rebel, RHO & TRX)Find parts that fit my vehicle
Item R111860
$0.00
24 Reviews
Our Price
$4,835.84 kit
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Overall Lift of 6 Inches
- Elevates Ground Clearance Increasing Off-Road Capabilities
- Front 2.50 Dirt Logic Reservoir Coilover Shocks
- Rear 2.25 Dirt Logic Shocks
- Hefty Cast Iron Steering Knuckles
- Sturdy Steel Rear Coil Spring Spacers
- Massive Front and Rear Steel Crossmembers
- Accommodates up to 37-Inch Wide Tires
- Straightforward Installation
- Fits 2019-2024 4WD RAM 1500s, Excluding Diesel and Rebel Models
- Does Not Fit 2019+ RAM 1500 Classic Models
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Extreme Off-Road Performance. Take your RAM 1500’s off-road performance to the extreme with the Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks. This lift kit provides a massive 6 inches of overall lift giving you the capability to take on the toughest off-road trails with relative ease. These 6 inches of ground clearance also allow you to run up to 37 inch wide tires, giving you even more performance capabilities. Best of all, this kit is designed to maintain handling and suspension geometry at near factory levels so you can still your truck on everyday errand runs.
Front Dirt Logic Reservoir Coilover Shock Absorbers. This lift kit includes a pair of high-performance Dirt Logic 2.50-inch reservoir coilover shocks. These coilover shocks feature a monotube, pressurized nitrogen gas design with an aluminum reservoir. This monotube design provides more immediate damping while the remote reservoir technology ensures superior heat dissipation. This translates to superior performance and pinpoint handling. Meanwhile, the shocks’ 2.50-inch outer diameter stainless steel shock bodies provide exceptional durability and long service life. Finally, these coilovers include a pair of high-quality springs that provide maximum support.
Rear Dirt Logic Shock Absorbers. This kit also comes with a pair of premium Dirt Logic 2.25-inch rear shock absorbers. Just like the front coilovers, these rear shocks utilize a monotube, pressurized nitrogen gas design for faster damping response and accurate handling. Additionally, these shocks come with 2.25-inch outer diameter stainless steel shock bodies and 0.875 NitroSteel piston rods for extreme strength and corrosion resistance.
Hefty Steering Knuckles. Front lift is provided by a pair of extended length steering knuckles. These knuckles are designed to help maintain proper steering geometry and near-stock track width. This helps keep your truck’s factory handling manners for superior driving feel. Moreover, these components are cast from high-grade ductile iron for optimum durability.
Sturdy Rear Coil Spring Spacers. Rear lift is achieved via a pair of sturdy coil spring spacers. These spring spacers feature a fabricated steel construction to deliver superior durability and an accurate fit. Additionally, these components are finished in a tough black powder coating, keeping these protected from corrosion and thus extending their service life.
Massive Front and Rear Steel Crossmembers. This lift kit also includes front and rear fabricated steel crossmembers that provide extra stiffness to your underchassis even as it helps improve off-road performance and handling. Specifically, these crossmembers’ arched design provides proper clearance when going off-road. What’s more, the front crossmember is designed to accommodate your factory lower control arms, helping maintain proper geometry and articulation.
Straightforward Install Procedure. Installing this lift kit will require some drilling and cutting, as well as advanced mechanical knowledge in order to ensure an efficient procedure. That being said, this kit’s components will mount onto preexisting locations on your truck and includes all necessary mounting hardware for a relatively straightforward install.
Application. The Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks fits all 2019 to 2024 4WD RAM 1500 models without the Air Ride and excluding Diesel and Rebel models.
Application Notes. Your factory wheels and tires will not work with this lift kit.
Fitment:
- 2019 Dodge Ram 1500
- 2020 Dodge Ram 1500
- 2021 Dodge Ram 1500
- 2022 Dodge Ram 1500
- 2023 Dodge Ram 1500
- 2024 Dodge Ram 1500
Fabtech K3088DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

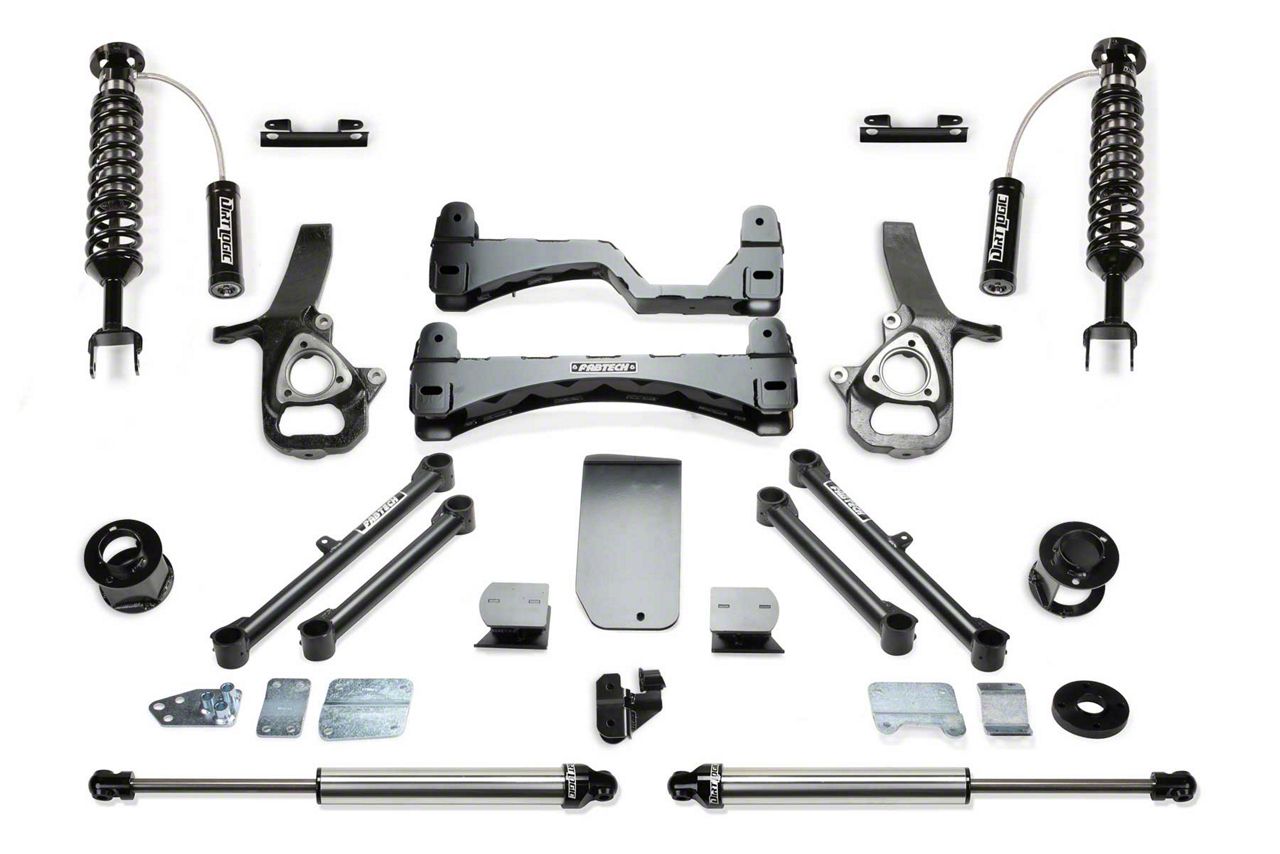

Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Coilover Shocks
- (2) Rear Shocks
- (1) Drive Shaft Spacer
- (1) Skid Plate
- (1) Track Bar Drop Brackets
- (1) Front Crossmember
- (1) Rear Crossmember
- (1) Rear Brake Line Bracket (2020 Models only)
- (2) Front Differential Mounts, Driver and Passenger Side
- (2) Steering Knuckles, Driver and Passenger Side
- (2) Sway Bar Drop Brackets, Driver and Passenger Side
- (2) Brake Line Brackets, Driver and Passenger Side
- (2) Rear Bump Stop Spacers, Driver and Passenger Side
- (2) Rear Coil Spacers, Driver and Passenger Side
- (2) Rear Differential Mounts
- (2) Rear Upper Links
- (2) Rear Lower Links
- (2) Tie Rod Ends
- (2) Shock Spacers
- (2) Axle Spacers
- (2) Spacer Sleeves
- (2) Bushing Kits
- (2) Sway Bar Links
- (2) Track Bar Nut Tabs
- (4) Sleeves
- Mounting Hardware
4.6
Customer Reviews (24)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 1500
- 3.6L V6 - 19, 20, 21, 22, 23, 24
- 5.7L V8 - 19, 20, 21, 22, 23, 24
