Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Sierra 1500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find 6 Inch to 8 Inch Lift Kits for your Sierra 1500
Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 4.0 Coil-Overs and Shocks (14-18 2WD/4WD Sierra 1500 Double Cab, Crew Cab, Excluding Denali)Find parts that fit my vehicle
Item S501162
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
24 Reviews
Our Price
$4,329.58 - $4,870.80
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 6" Performance Lift System
- Set Includes Dirt Logic 4.0 Shocks
- Lower Control Arm Crossmembers
- Offset Ductile Steering Knuckles
- Relocated Front Differential with Heavy Bracketry
- ¼” Thick Steel Skid Plate
- Works with Other Fabtech Suspension System Parts
- Fits 2014-2018 GMC Sierra 2WD/4WD Crew and Double Cab, Excludes Denali
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Developed Using the Latest Technology. The Fabtech 6" Performance Lift System was made using the company's state of the art software, cutting-edge fabrication equipment, and stringent quality control procedures. All these result in a high-performance system that's great for everyday consumers and car enthusiasts alike.
Made to Last. This performance lift system was especially made to withstand the wear and tear of aggressive off-road driving. The kit's skid plate and all of its bracketry are constructed from ¼" thick steel to provide maximum strength and optimal reliability. Meanwhile, to reduce the reduction when driving at higher speeds, the front differential was relocated and premium Dirt Logic Shocks were added to the system.
Clean Look, Easy Installation. The Fabtech 6" Performance Lift System w/ Dirt Logic 4.0 Coilovers & Shocks retains your vehicle's factory track for easy installation. In conjunction with the offset ductile steering knuckles, this also keeps the tires under the fenders for a much cleaner appearance.
Two Versions Available. This Fabtech Kit is available in two versions. There is an option for Sierras equipped with an Aluminum Alloy or Stamped Steel Front Suspension. And there is an option for Sierra models equipped with a Cast Steel Front Suspension. Please be sure to choose your suspension from the options listed above.
Application. The Fabtech 6" Performance Lift System is designed for 2014-2018 2WD/4WD GMC Sierra crew cab and double cab models. Does not fit Denali models equipped with Magnetic Ride Control.
Please Note. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
Made to Last. This performance lift system was especially made to withstand the wear and tear of aggressive off-road driving. The kit's skid plate and all of its bracketry are constructed from ¼" thick steel to provide maximum strength and optimal reliability. Meanwhile, to reduce the reduction when driving at higher speeds, the front differential was relocated and premium Dirt Logic Shocks were added to the system.
Clean Look, Easy Installation. The Fabtech 6" Performance Lift System w/ Dirt Logic 4.0 Coilovers & Shocks retains your vehicle's factory track for easy installation. In conjunction with the offset ductile steering knuckles, this also keeps the tires under the fenders for a much cleaner appearance.
Two Versions Available. This Fabtech Kit is available in two versions. There is an option for Sierras equipped with an Aluminum Alloy or Stamped Steel Front Suspension. And there is an option for Sierra models equipped with a Cast Steel Front Suspension. Please be sure to choose your suspension from the options listed above.
Application. The Fabtech 6" Performance Lift System is designed for 2014-2018 2WD/4WD GMC Sierra crew cab and double cab models. Does not fit Denali models equipped with Magnetic Ride Control.
Please Note. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
- 2014 GMC Sierra 1500
- 2015 GMC Sierra 1500
- 2016 GMC Sierra 1500
- 2017 GMC Sierra 1500
- 2018 GMC Sierra 1500
Fabtech K1072DL
K1073DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

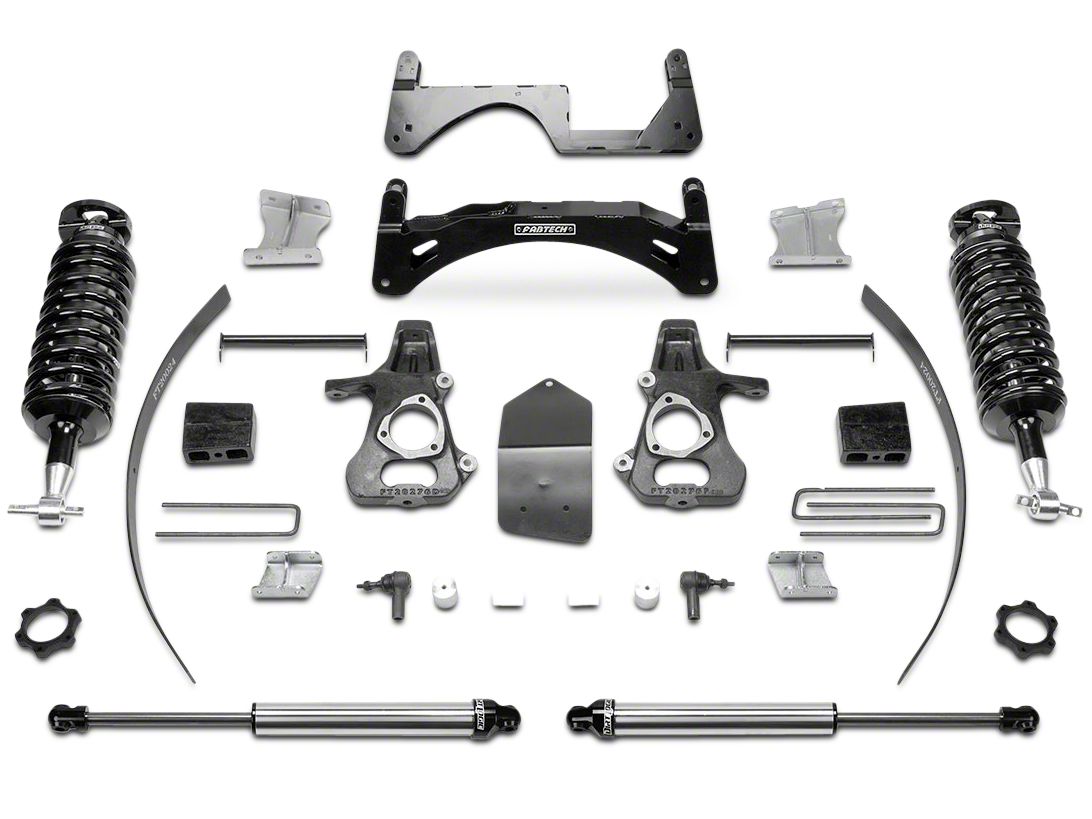

What's in the Box
- (1) Diff Skid Plate
- (1) Sway Bar Frame Bracket (Drv.)
- (1) Sway Bar Frame Bracket (Pass.)
- (1) Diff Bracket (Drv.)
- (1) Diff Bracket (Pass.)
- (1) Front Crossmember
- (1) Rear Crossmember
- (2) Crossmember Support Tubes
- (1) Hdwr Sub-Assembly Kit
- (1) Hardware Kit
- (1) Drv. Spindle
- (1) Pass. Spindle
- (4) U-Bolts
- (2) Block 5.0”
- (2) C.V. Spacers
- (2) Rear Add-a-Leaf
- (2) Rear Bumpstop Spacers
- (1) Hdwr Sub-Assembly Kit
- (2) Front Dirt Logic SS 4.0 Coilovers
- (2) Rear Dirt Logic 2.25 Shocks
Tech Guides:
4.6
Customer Reviews (24)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 1500
- 4.3L V6 - 14, 15, 16, 17, 18
- 5.3L V8 - 14, 15, 16, 17, 18
- 6.2L V8 - 14, 15, 16, 17, 18
Does NOT fit on Denali Models equipped with Magnetic Ride Control. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
