2019-2025
2014-2018
2007-2013
1999-2006
Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Guaranteed 12/24 Delivery Still Available see item page for details! available on most items - Details
Talk to a Sierra 1500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find 6 Inch to 8 Inch Lift Kits for your Sierra 1500
Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Coil-Overs and Shocks (14-18 2WD/4WD Sierra 1500 Double Cab, Crew Cab, Excluding Denali)Find parts that fit my vehicle
Item S501165
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
24 Reviews
Our Price
$3,712.14 - $4,176.17
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 6" Performance Lift Kit
- Kit Includes Dirt Logic 2.5 Coilovers
- Lower Control Arm Crossmembers
- Offset Ductile Steering Knuckles
- Includes Crossmember Cross Tubes for Support
- Relocated Front Differential with Heavy Bracketry
- ¼” Thick Steel Skid Plate
- Works with Other Fabtech Suspension System Parts
- Fits 2014-2018 GMC Sierra 2WD/4WD Crew and Double Cab, Excludes Denali
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Superior Performance Guaranteed. This kit showcases Fabtech's two decades of experience in the aftermarket suspension market. The company's 6 " Performance Lift System is made using the latest methods and has undergone rigorous quality control procedures, resulting to a performance lift system that both regular drivers and offroaders can enjoy.
Made for the Great Outdoors. The lift system's skid plate and bracketry are all constructed from ¼" thick steel for extra strength and optimal reliability. Meanwhile, the kit's relocation of the front differential results in a noticeable reduction in vibration when driving at higher speeds. These details contribute to smoother handling in even the most extreme conditions.
A Clean Look. The lift kit features longer offset ductile steering knuckles, helping it fit with the factory track width. It also keeps the tires under the fender for a clean near-factory appearance.
Two Versions Available. This Fabtech Kit is available in two versions. There is an option for Sierras equipped with an Aluminum Alloy or Stamped Steel Front Suspension. And there is an option for Sierra models equipped with a Cast Steel Front Suspension. Please be sure to choose your suspension from the options listed above.
Application. The Fabtech 6" Performance Lift System is measured for 2014-2018 GMC Sierra 2WD and 4WD double cab or crew cab models. It does not fit on Denali Models equipped with Magnetic Ride Control.
Please Note. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
Made for the Great Outdoors. The lift system's skid plate and bracketry are all constructed from ¼" thick steel for extra strength and optimal reliability. Meanwhile, the kit's relocation of the front differential results in a noticeable reduction in vibration when driving at higher speeds. These details contribute to smoother handling in even the most extreme conditions.
A Clean Look. The lift kit features longer offset ductile steering knuckles, helping it fit with the factory track width. It also keeps the tires under the fender for a clean near-factory appearance.
Two Versions Available. This Fabtech Kit is available in two versions. There is an option for Sierras equipped with an Aluminum Alloy or Stamped Steel Front Suspension. And there is an option for Sierra models equipped with a Cast Steel Front Suspension. Please be sure to choose your suspension from the options listed above.
Application. The Fabtech 6" Performance Lift System is measured for 2014-2018 GMC Sierra 2WD and 4WD double cab or crew cab models. It does not fit on Denali Models equipped with Magnetic Ride Control.
Please Note. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
- 2014 GMC Sierra 1500
- 2015 GMC Sierra 1500
- 2016 GMC Sierra 1500
- 2017 GMC Sierra 1500
- 2018 GMC Sierra 1500
Fabtech K1067DL
K1068DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

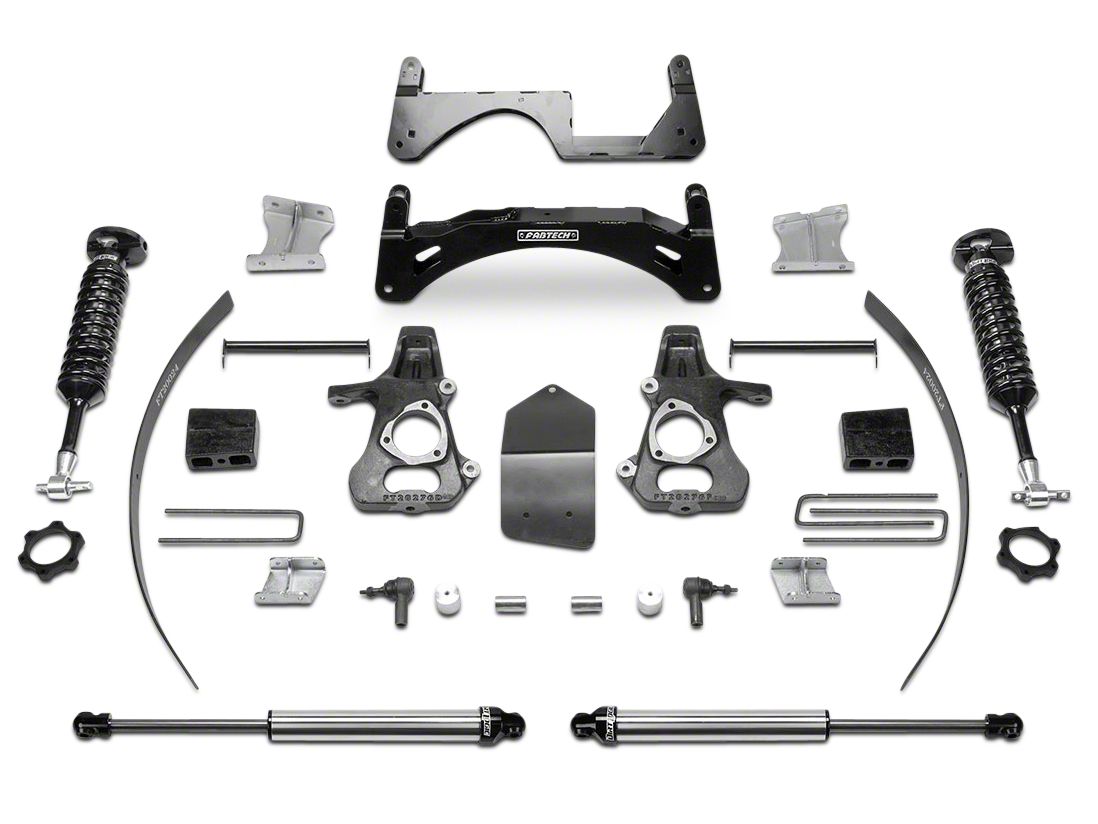

What's in the Box
- (1) Diff Skid Plate
- (1) Sway Bar Frame Bracket (Drv.)
- (1) Sway Bar Frame Bracket (Pass.)
- (1) Diff Bracket (Drv.)
- (1) Diff Bracket (Pass.)
- (1) Front Crossmember
- (1) Rear Crossmember
- (2) Crossmember Support Tubes
- (1) Hdwr Sub-Assembly Kit
- (1) Hardware Kit
- (1) Drv. Spindle
- (1) Pass. Spindle
- (4) U-Bolts
- (2) Block 5.0”
- (2) C.V. Spacers
- (2) Rear Add-a-Leaf
- (2) Rear Bumpstop Spacers
- (1) Hdwr Sub-Assembly Kit
- (1) Front Dirt Logic 2.5 Coilovers
- (2) Rear Dirt Logic 2.25 Non Resi
Tech Guides:
4.6
Customer Reviews (24)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 1500
- 4.3L V6 - 14, 15, 16, 17, 18
- 5.3L V8 - 14, 15, 16, 17, 18
- 6.2L V8 - 14, 15, 16, 17, 18
Does NOT fit on Denali Models equipped with Magnetic Ride Control. Some vehicle may experience front driveline vibration while in 4WD. To correct that issue, you'll need Fabtech CV Driveshaft Kit, part# FTS21192.
