Find 1-2" Lift Kits for your Sierra 1500
Fabtech 2-Inch Uniball Upper Control Arm System with Dirt Logic Coil-Over Reservoirs and Shocks (07-13 2WD/4WD Sierra 1500 Extended Cab, Crew Cab)Find parts that fit my vehicle
Item S502323-A
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
24 Reviews
Our Price
$3,156.95 kit
Out of Stock
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 2" Uniball UCA System
- Designed for Desert Racing
- Level Lift Maintained
- Performs Well in Off-Road Conditions
- Arms Provide Additional Strength and Alignment
- Flex Reduced with Chromoly Tubing
- Dirt Logic Coil Over Reservoirs and Shocks
- Basic Installation
- 5/60 Powertrain Warranty
- Fits 2007-2013 2WD/4WD Extended Cab, Crew Cab GMC Sierra Models
| Brand | Fabtech |
| Lift Height | 2.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 33 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Ideal for Off-Roading. Your GMC Sierra will have superior control in your off-roading adventures with the Fabtech 2-inch Uniball Upper Control Arm System with Dirt Logic Coilover Reservoirs and Shocks. These arms directly replace the stock arms and deliver supplemental strength and alignment capacity.
Desert Designed Shocks. The desert racing experience behind the Fabtech design of the Dirt Logic 2.5 front shocks makes them perfect for aggressive off-roading. Various coilover applications are featured in these front shocks. These shocks deliver augmented dampening capacity that greatly improves the off-roading experience. The factory shocks are replaced by these rear shocks, which provide better configuration. Fabtech pre-tunes these shocks for their specific suspension.
Enhanced Align-ability. These control arms are direct replacements for the stock arms. They provide extra strength and align-ability. The 1-inch ID stainless American uniball replaces the upper ball joint. The arms have an additional cast that delivers enhanced align-ability and provides help with leveling alignments. They'll provide boosted wheel travel when used in conjunction with the Dirt Logic 2.5 Coilover Shocks.
Steel Uniball Pin. The 17-4 stainless steel uniball pin is heat treated. No modifications are needed to the spindle as it fits into the stock ball joint taper. This provides a simple reversal to the stock feature.
Straight Forward Installation. You can complete the straight forward installation with some mechanical knowledge.
Powertrain Warranty. Fabtech provides a 5/60 powertrain warranty on this product. Check the manufacturer's warranty for details since some limitations may apply.
Application. The Fabtech 2-inch Uniball Upper Control Arm System with Dirt Logic Coilover Reservoirs and Shock was designed to fit 2007-2013 Extended Cab and Crew Cab GMC Sierra models.
Desert Designed Shocks. The desert racing experience behind the Fabtech design of the Dirt Logic 2.5 front shocks makes them perfect for aggressive off-roading. Various coilover applications are featured in these front shocks. These shocks deliver augmented dampening capacity that greatly improves the off-roading experience. The factory shocks are replaced by these rear shocks, which provide better configuration. Fabtech pre-tunes these shocks for their specific suspension.
Enhanced Align-ability. These control arms are direct replacements for the stock arms. They provide extra strength and align-ability. The 1-inch ID stainless American uniball replaces the upper ball joint. The arms have an additional cast that delivers enhanced align-ability and provides help with leveling alignments. They'll provide boosted wheel travel when used in conjunction with the Dirt Logic 2.5 Coilover Shocks.
Steel Uniball Pin. The 17-4 stainless steel uniball pin is heat treated. No modifications are needed to the spindle as it fits into the stock ball joint taper. This provides a simple reversal to the stock feature.
Straight Forward Installation. You can complete the straight forward installation with some mechanical knowledge.
Powertrain Warranty. Fabtech provides a 5/60 powertrain warranty on this product. Check the manufacturer's warranty for details since some limitations may apply.
Application. The Fabtech 2-inch Uniball Upper Control Arm System with Dirt Logic Coilover Reservoirs and Shock was designed to fit 2007-2013 Extended Cab and Crew Cab GMC Sierra models.
Shop All 1 to 2 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
Fabtech K1105DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

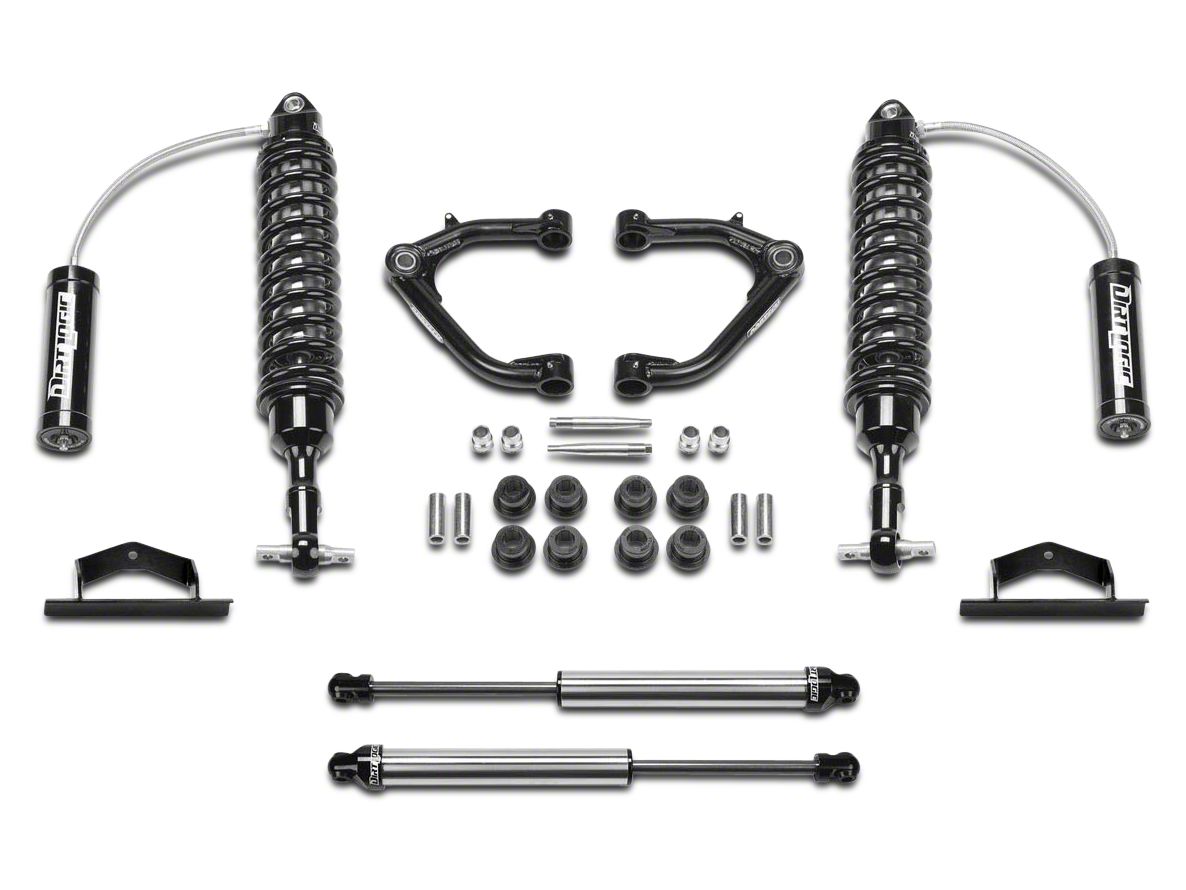

- (2) Control Arms
- (2) Dirt Logic Front Shocks
- (2) Dirt Logic Rear Shocks
- Mounting Hardware
Tech Guides:
4.6
Customer Reviews (24)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 1500
- 4.3L V6 - 07, 08, 09, 10, 11, 12, 13
- 4.8L V8 - 07, 08, 09, 10, 11, 12, 13
- 5.3L V8 - 07, 08, 09, 10, 11, 12, 13
- 6.0L V8 - 07, 08, 09, 10, 11, 12, 13
- 6.2L V8 - 07, 08, 09, 10, 11, 12, 13
