30 PSI Fuel Pressure Gauge; Tinted (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

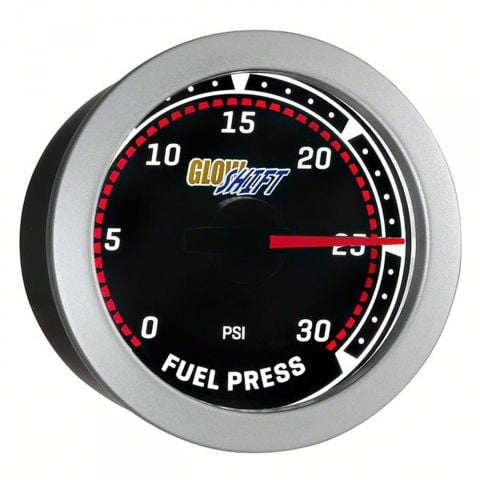

GlowShift's Tinted Series 30 PSI Fuel Pressure Gauge is the perfect accessory for anyone looking to keep a close eye on their diesel truck's fuel system pressure to ensure it's performing at optimal levels. If you find that your fuel pressure levels are running too low, this could be a direct result of a loss of horsepower and damage to your fuel pumps and/or injectors. This fuel pressure gauge reads from 0 to 30 PSI by utilizing the included electronic fuel pressure sending unit that installs directly to the fuel pump or lift pump for accurate gauge readings directly from the source.

GlowShift's Tinted Gauge Series has been revamped from our previous gauge model in both performance and style. Each electronic Tinted Series Gauge is driven by Stepper Motor Technology that allows for smooth and stable needle movement with instant feedback from the 1/8-27 NPT pressure sending unit. Each 2 1/16" (52mm) gauge face features an illuminated red needle that sweeps 270 degrees at startup with white LED backlighting. Connecting this gauge to your factory headlight switch allows it to dim 30% for easier monitoring during the nighttime. This diesel fuel pressure gauge is housed in a two tone gun metal gauge body with a brushed aluminum trim ring and a low profile, magnified tinted lens for a sleek style. Each Tinted Series Gauge features modular connections for plug and play connectivity, as well as all the necessary mounting hardware, installation instructions, free lifetime technical support and a one year limited warranty.

Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.

Dodge Cummins Note: A Snubber Valve is required when installing a 30 PSI Fuel Pressure Gauge into a 1986-2012 Dodge Ram Cummins. The Snubber Valve regulates, normalizes and eliminates fuel pressure spikes that are present during the initial ignition and startup on the Dodge Cummins Diesel Engine through the use of a regulator. High pressure fuel system spikes during startup are harmful and may cause early and unexpected failure of electronic fuel pressure sensors and/or sending units for fuel pressure gauges.

GM Duramax Note: If you are installing this gauge to a GM Duramax engine, an aftermarket lift pump is required for this gauge to function properly.

2 1/16" (52mm) Black Gauge Face with Magnified, Tinted Lens
Fuel Pressure Reading from 0 to 30 PSI
1/8-27 NPT Electronic Fuel Pressure Sensor
Red Illuminated Needle with White LED Backlighting
Stepper Motor Technology
Dimmer Wire Allows the Gauge to Dim 30%
Gauge Visor
Mounting Hardware
Installation Instructions
Free Lifetime Technical Support
One Year Limited Warranty
