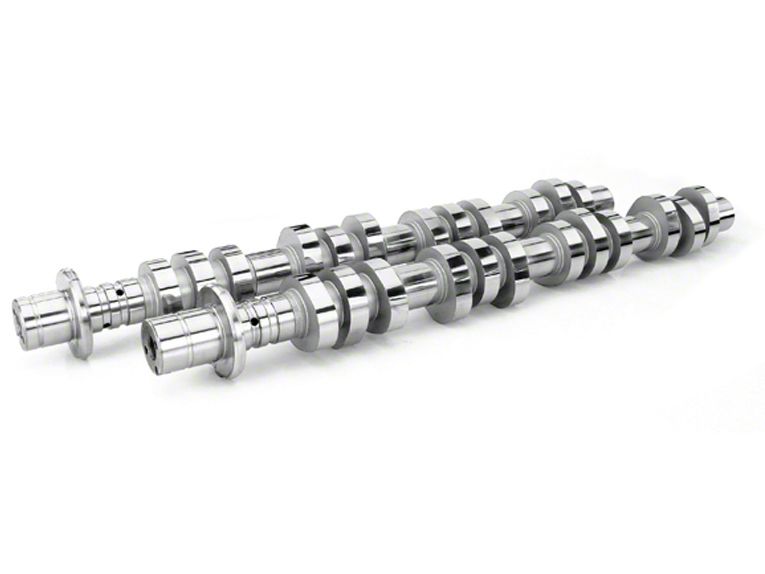

Comp Cams 102700
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation Info
Installation Time
(approx) a Day
Difficulty Level:
Mechanical expertise or professional installation required.
What's in the Box
Part Number: | 102700 | Grind Number: | XE278AH |
Lifter Type: | None - OHC | Engine Type: | FORD 4.6 and 5.4 SOHC MODULAR 2-V (1992-Present) |
RPM Range: | 2200 to 6200 | Valve Timing : | 0.05 |
Lobe-Center Angle | 113 | Intake Center Line: | 109 |
Intake | Exhaust | |
Valve Lash: | Hyd. | Hyd. |
Duration: | 278 | 282 |
Duration @ .050" Lift: | 242 | 246 |
Valve Lift: | 0.55 | 0.55 |
Lobe Lift: | 0.3 | 0.3 |
Valve Timing @ 0.05" Lift: | Open | Close |
Intake: | 12 BTDC | 50 ABDC |
Exhaust: | 60 BBDC | 6 ATDC |
