Features, Description, Q&A, Specs & Installation

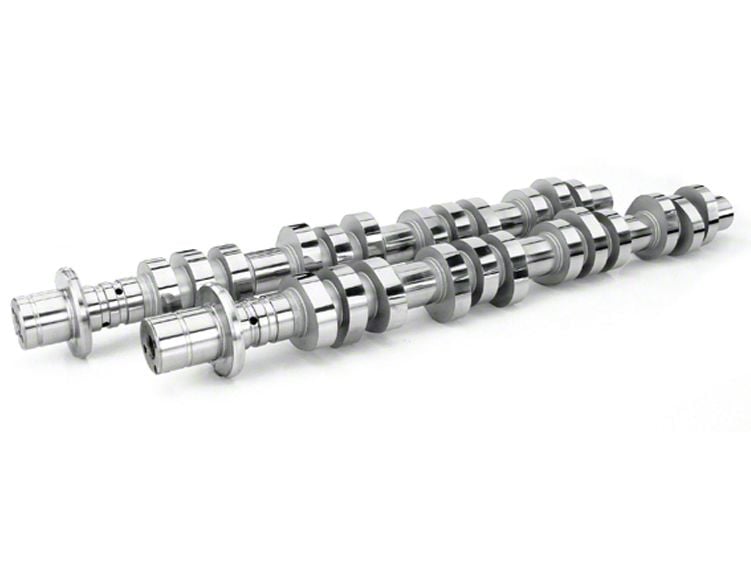

Comp Cams 102200
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation Info
Installation Time
(approx) a Day
Difficulty Level:
Mechanical expertise or professional installation required.
What's in the Box
Part Number: | 102200 | Grind Number: | XE268H |
Lifter Type: | None - OHC | Engine Type: | FORD 4.6 and 5.4 SOHC MODULAR 2-V (1992-Present) |
RPM Range: | 1600 to 5600 | Valve Timing : | 0.05 |
Lobe-Center Angle | 114 | Intake Center Line: | 110 |
Intake | Exhaust | |
Valve Lash: | Hyd. | Hyd. |
Duration: | 268 | 274 |
Duration @ .050" Lift: | 230 | 236 |
Valve Lift: | 0.5 | 0.5 |
Lobe Lift: | 0.274 | 0.274 |
Valve Timing @ 0.05" Lift: | Open | Close |
Intake: | 5 BTDC | 45 ABDC |
Exhaust: | 56 BBDC | 0 ATDC |
