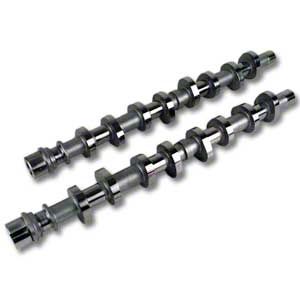

Comp Cams Stage 1 Xtreme Energy 226/230 Hydraulic Roller Camshafts (99-04 5.4L F-250 Super Duty)Find parts that fit my vehicle
Item SD55297
$0.00
Our Price
$798.95
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- More Power.
- More Aggressive Idle.
- Streetable Cam.
- Daily Driver Friendly.
Description
Ideal Upgrade. If you're ready to take the next step with modifications but don't want to go forced induction, consider a set of Comp Cams Stage I Xtreme Energy Camshafts. The perfect addition to your street-driven F-250, this cam is a perfect balance of drivability and power when you don't want to sacrifice either.
Power on Demand. The XE262AH Camshafts are a great balance of additional power delivered throughout your whole RPM range. And unlike more aggressive cams which may deliver bigger top end gains, the XE262AH doesn't force you to sacrifice power or torque on the low end.
Daily Driver Friendly. This camshaft is a great choice for daily driven 'Stangs with its slightly more aggressive idle and power profile. With a tune, this street-friendly camshaft will give you the additional power you want, without the lack of drivability sometimes experienced with more aggressive cams.
Application. This SOHC Camshaft is designed for 1999-2004 5.4L Ford F-250 Super Duty. Recommended for use with Comp Cams 26113 Valve Springs.
Power on Demand. The XE262AH Camshafts are a great balance of additional power delivered throughout your whole RPM range. And unlike more aggressive cams which may deliver bigger top end gains, the XE262AH doesn't force you to sacrifice power or torque on the low end.
Daily Driver Friendly. This camshaft is a great choice for daily driven 'Stangs with its slightly more aggressive idle and power profile. With a tune, this street-friendly camshaft will give you the additional power you want, without the lack of drivability sometimes experienced with more aggressive cams.
Application. This SOHC Camshaft is designed for 1999-2004 5.4L Ford F-250 Super Duty. Recommended for use with Comp Cams 26113 Valve Springs.
Comp Cams 102500
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Camshafts
Tech Specs
Comp Cam Data Sheet
| Part Number: | 102500 | Grind Number: | XE262AH |
| Lifter Type: | None - OHC | Engine Type: | FORD 4.6 and 5.4 SOHC MODULAR 2-V (1992-Present) |
| RPM Range: | 1400 to 5400 | Valve Timing : | 0.05 |
| Lobe-Center Angle | 113 | Intake Center Line: | 109 |
| Intake | Exhaust | |
| Valve Lash: | Hyd. | Hyd. |
| Duration: | 262 | 266 |
| Duration @ .050" Lift: | 226 | 230 |
| Valve Lift: | 0.55 | 0.55 |
| Lobe Lift: | 0.3 | 0.3 |
| Valve Timing @ 0.05" Lift: | Open | Close |
| Intake: | 4 BTDC | 42 ABDC |
| Exhaust: | 52 BBDC | -2 ATDC |
