Carli Suspension 2-Inch Backcountry Lift System with Carli SPEC 2.0 Remote Reservoir Shocks (17-19 4WD F-250 Super Duty, Excluding Diesel)Find parts that fit my vehicle

This Carli Suspension CS-FLVL-BC-CS-17-GAS 2.5 inch Backcountry lift system for the Ford F250 / F350 4wd gas models is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 13.5 inch tires (w/trimming). It is perfect for Ford owners wanting the best ride quality during on-road, highway, towing/hauling along with slow to mid speed off road use.

Featured in this lift kit system are 2.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 Remote Reservoir Shock Absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. 5/8 inch diameter hardened steel chrome plated shafts are also used.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Completing the front-end enhancements, this package incorporates Caster Shims to enhance steering responsiveness. Additionally, a custom High-Clearance Bump Stop Drop is provided to ensure the springs maintain proper clearance from the factory bump stop.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however you can choose between the Carli progressive rate 1" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 1" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec.

Features & Benefits:
2.5 inch front lift / 0 to 1 inch rear lift (optional rear lift)
Premium lift kit optimized for all conditions: on-road road quality, towing and slow to medium speed off-roading
Front linear rate coil springs - with reduced linear rate to improve ride quality
Carli SPEC 2.0 Remote Resi Front and Rear Shocks - 2" diameter aluminum body with remote reservoir
Shocks are fully serviceable and rebuild-able
Designed to improve ride quality and suspension performance
Optional Rear Add-a-Pack - Replaces factory overload springs, transforming the factory leaf spring pack into a progressive system (F250 only)
Optional Rear Progressive Leaf Springs - Provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec
Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
Stainless steel braided extended front brake hoses
Front Travel = 9" / Rear Travel = 13.8"
Lifetime warranty on components, 1 year warranty on shocks
Allows use of up to 35 inch x 12.5 tires or 37 inch x 12.5 (with trimming)

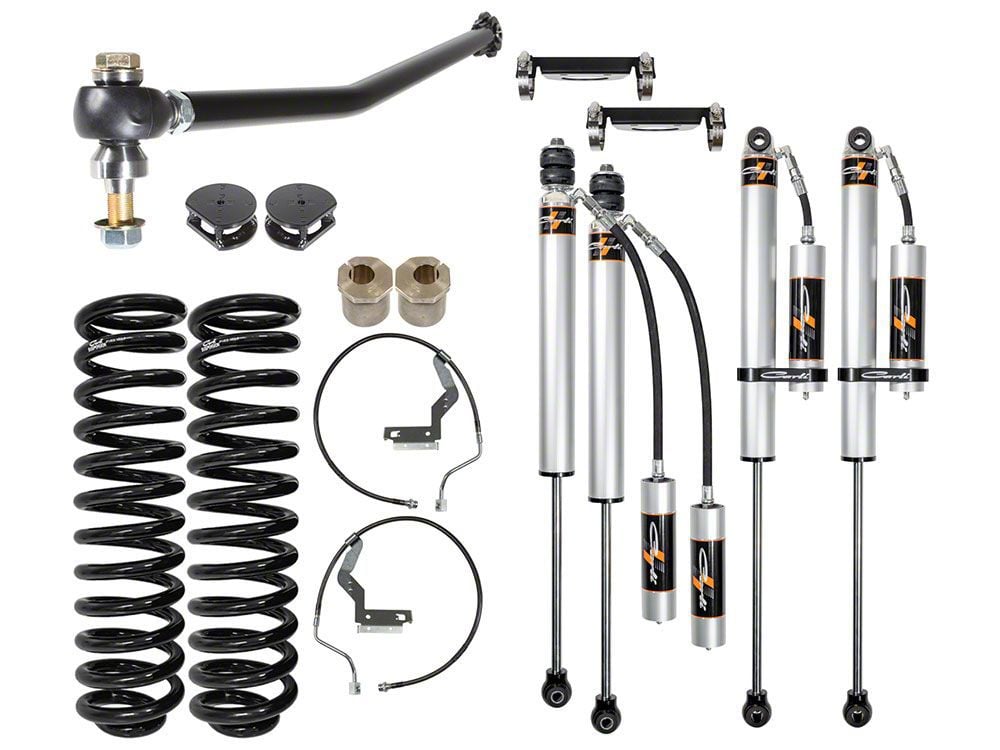

Components Included:
CS-FLC-11-GAS: Front Coil Springs
CS-FLVLSPKG-CS20RR-D: Carli SPEC 2.0 Remote Resi Shocks, Front and Rear, Resi Mounts
CS-FORDBBL-LVL-17-F: Front Brake Lines
CS-FCASTERSHIM-25: 2 degree Caster Shims
CS-FBDF-25-17: High Clearance Front Bump Stops
CS-FATB-17: Adjustable Track Bar
Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.

Fitment:

• 2017 Ford F-250
• 2018 Ford F-250
• 2019 Ford F-250
