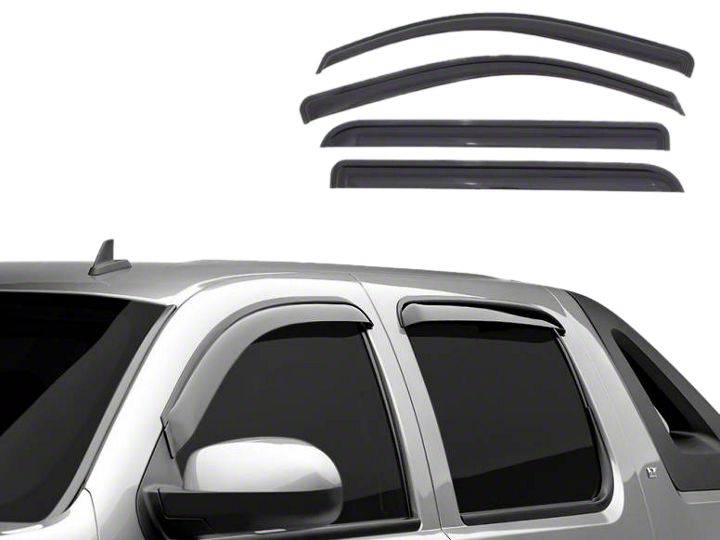

How to Install Black Horse Off Road In-Channel Smoke Rain Guards - Front & Rear (14-18 Sierra 1500 Crew Cab) on your GMC Sierra

Installation Time

1 hours

Tools Required

Car Wash Supplies
Clean Towel

View PDF Guide

Shop Parts in this Guide

Important Safety Information

• CAUTION - Before driving, ensure that the vent visor is properly secured to vehicle.

• Do not use automatic "brush-style car washes.

. Do not use cleaning solvents of any kind.

• Periodically check all components for tightness.

Preparation Before Painting / Installation

• A trial fit is recommended to ensure proper positioning and fit.

. Check fit of parts before painting as we will not accept the return of modified or painted parts.

- Wash and dry your vehicle to remove any debris and/or dirt from the installation area.

Installation Steps

NOTE: Actual application may vary slightly from illustrations.

Roli down windows. Glean the inner window channels

Remove the tape liner from the front flange. Peel back 2" (5cm) of tape liner from each end of top flange.

Insert visor into window channel, rear flange first. Rear flange inserts between the trim and the exterior surface.The front and top flange slides into the window channel.

Remove remaining tape liner by pulling on free ends. Raise window slowly and leave up for 24 hours to secure visor in window channel.

Install the rear visors using the same preparation and intanaliOn methods as the front visor. Nate that front & rear flanges fit between the window trim & exterior surface.
