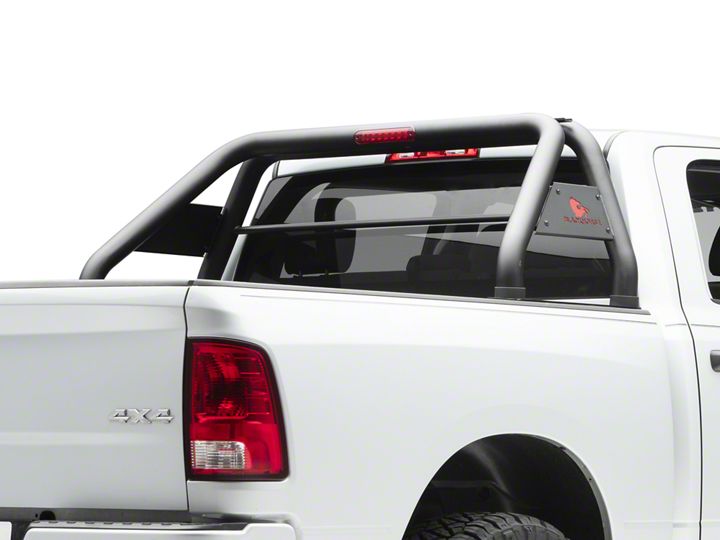

How to Install Black Horse Off Road Roll Bar - Black (09-17 w/o Ram Box) on your Dodge RAM

Please read the instruction completely for easy installation, which will also help you to avoid scratches or other potential damages to your appealing car.

The information shown here is for reference only and may differ from the product that you receive, however the goods are fitted in the same way.

Mild soap may be used also to clean the Product.

Please periodically check and retighten all the hardware and clean the investment for a refresh look.

Installation Fig.

Step 1: Verify all parts are present.

Step 2: Using wrench 9, install 1/2 main pipes and connecting plate 5 together with parts 10/11/13/14 as shown.

Step 3: Using wrench 9, install 3/4 decoration plate together with parts 10/11/13/15 as shown.

Step 4: Using wrench 7, install support plate 6 and gum cover 8 with part 12.

Step 4：Fix the roll bar on the trunk with parts 16/17/18/19 (need to drill the trunk if there’s no installation holes). Test and make sure that the roll bar is steadily fixed, and then tighten all the hardware.

Step 6：Installation is finished，pick up all tools

Any damages and losses caused by improper installation and application, goes beyond our quality warranty
