BDS 6-Inch Suspension Lift Kit with FOX 2.5 Coil-Over and 2.5 Performance Shocks (19-23 4WD Ranger w/ Factory Cast Steel Knuckles, Excluding Tremor)Find parts that fit my vehicle

Built to outperform BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits with FOX 2.5 Coil-over shocks. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your Ford Ranger truck up right with clearance for up to 35" tires.

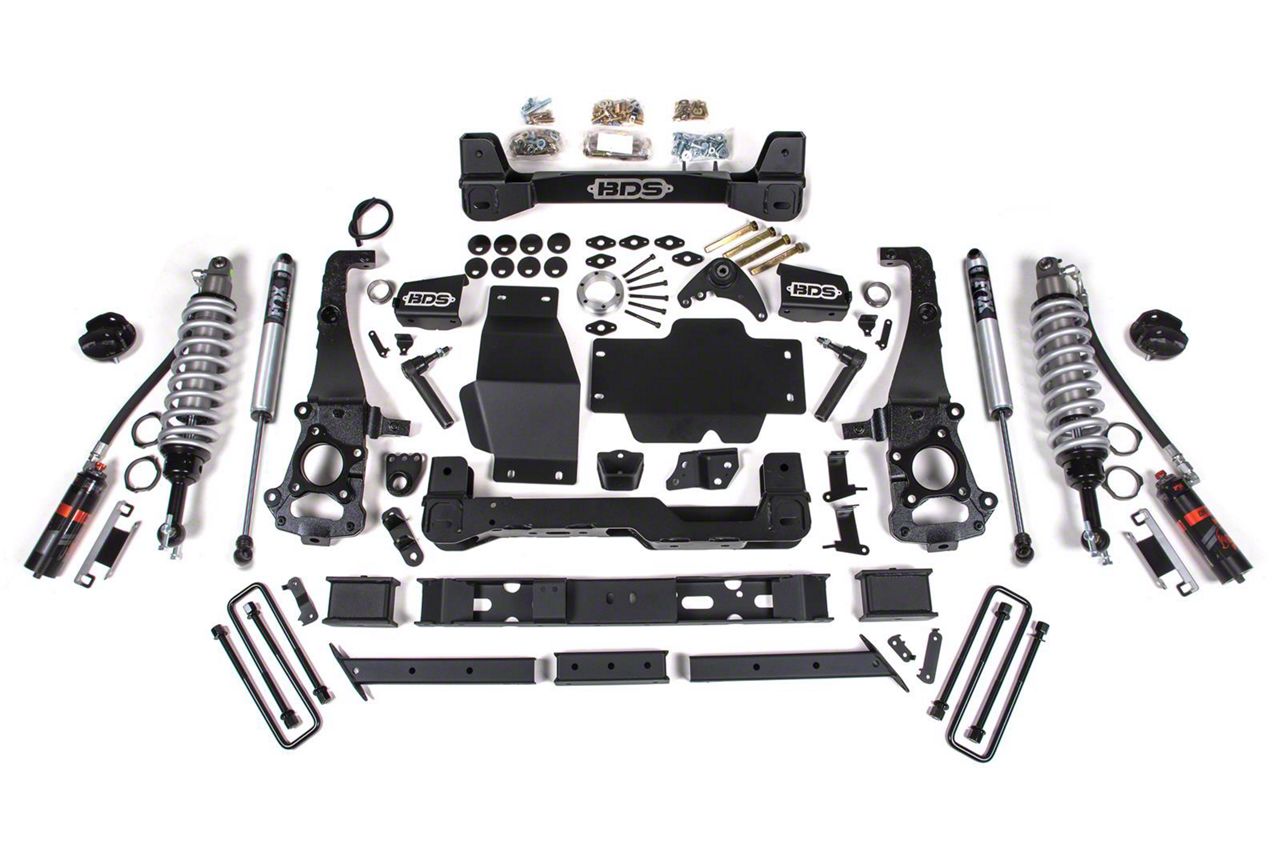

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers top mounted strut spacers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes a heavy duty replacement transfer case cross-member high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

DSC Adjustment

FOX 2.5 coil-overs are available with standard with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits:
FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
High clearance crossmembers improve strength and offroad capability
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance

Fitment:

• 2019 Ford Ranger
• 2020 Ford Ranger
• 2021 Ford Ranger
• 2022 Ford Ranger
