Find Braces & Bushings for your F-250

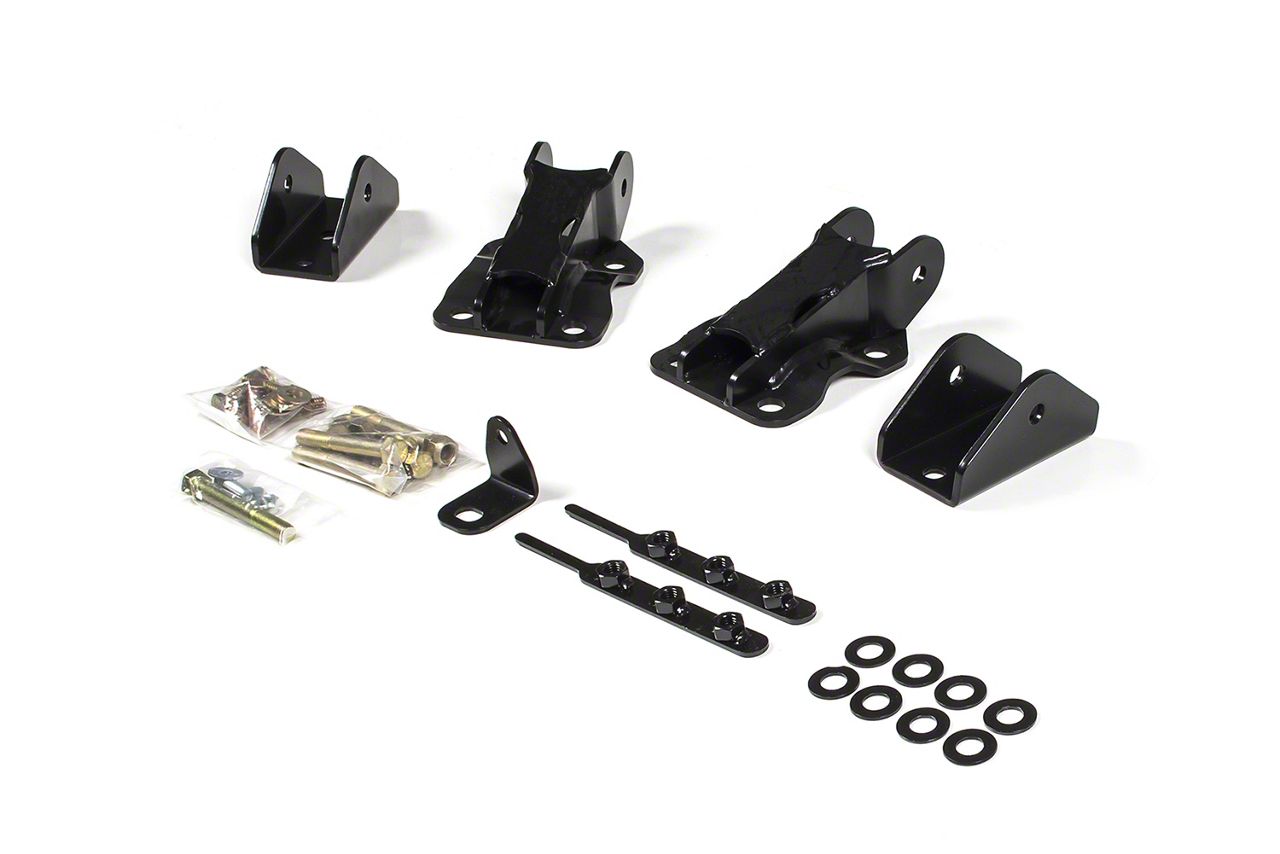

BDS Recoil Traction Bar Mounting Kit (17-22 4WD F-250 Super Duty SuperCab, SuperCrew w/ 6-3/4-Foot Bed)Find parts that fit my vehicle
Item SD57184
$227.16
On Sale
-5% $227.16 Was $238.99
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A
Features
- Mounting brackets are bolt-on only requiring minor drilling for frame mount installation
- Traction bar ends are greaseable and rebuildable
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
- Adjustable axle wrap control using dual-stage resistance springs
Description
Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank a single sided snap ring and 1-piece flex ball the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.
BDS BDS123416
