Find Transmission & Transfer Case for your Ram 1500

BD Power Xtrude Double Stacked Transmission Cooler with Fan and 1/2-Inch Lines (04-06 3.7L RAM 1500)Find parts that fit my vehicle

Item R150705
Product Image

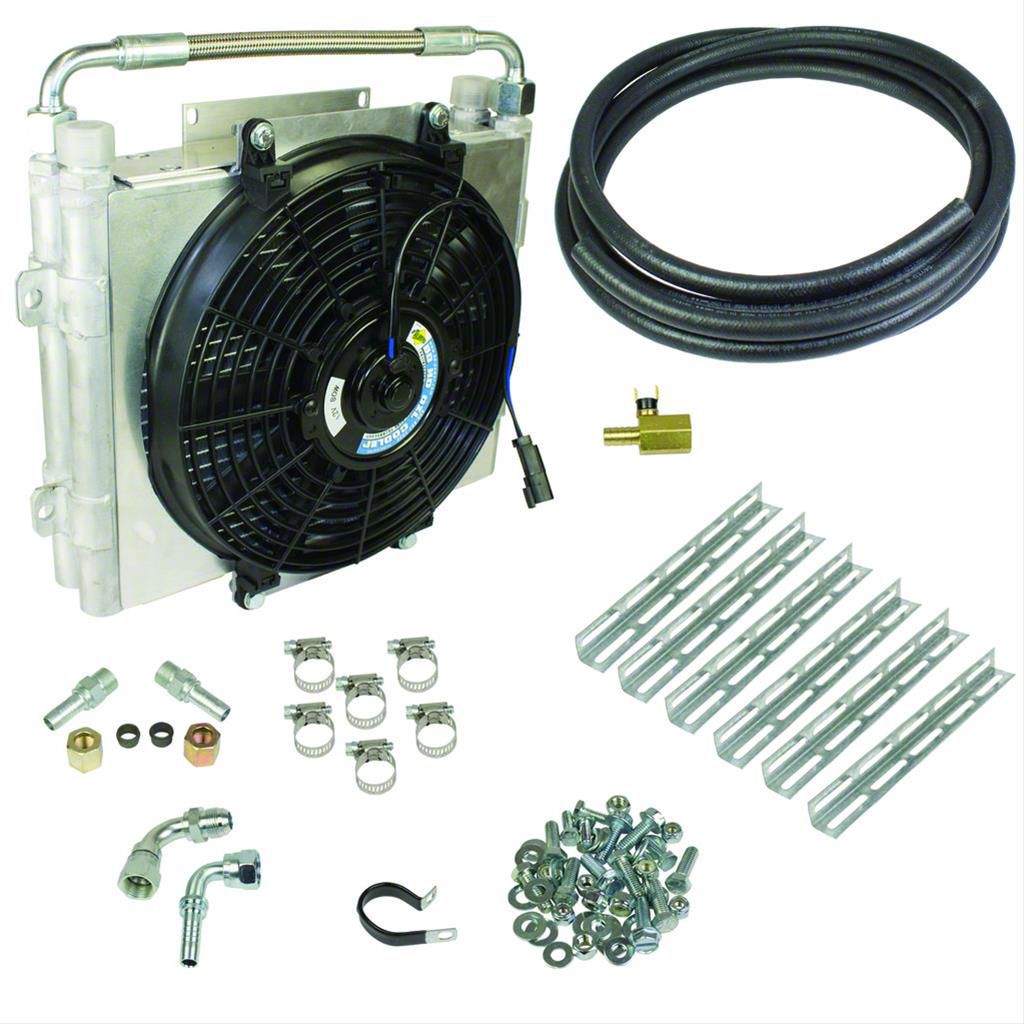

BD Power Xtrude Double Stacked Transmission Cooler with Fan and 1/2-Inch Lines (04-06 3.7L RAM 1500)
Verify parts fit and get product recommendations.
Ram 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
Want $10? Write one of the first 5 reviews 5.0 BD Power HVAC product ratings
Our Price

$1,019.95

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • 136% better temperature drop than XTRUDED single core kit
      • Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
      • Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
      • Double stacked cores deliver over 40,000 BTU/HR of cooling
      • Ford 5R110/6R140 - 1/2-inch Cooler Lines)
      • Furnace brazed rails have been tested to 300psi of pressure
      • Kits complete with all fittings, clamps, hoses and hardware
      • Large 5/8-inch ports prevents inlet/outlet restriction
      • Large surface area to transfer heat for external air flow cooling
      • Over 350% temperature drop versus the factory system
      • The pre-wired loomed harness with fuse and relay comes with plug-in connectors
      • Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
      • Turbulent oil flow design promotes a more complete cooling

      Description

      HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

      Fitment:

      Details

      BD Power 1030606-DS-12

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Reviews of BD Power HVAC Products (1)

      Brand Image

      Reviews of BD Power HVAC products have an average rating of 5.0 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 1500

      • 3.7L V6 - 04, 05, 06
