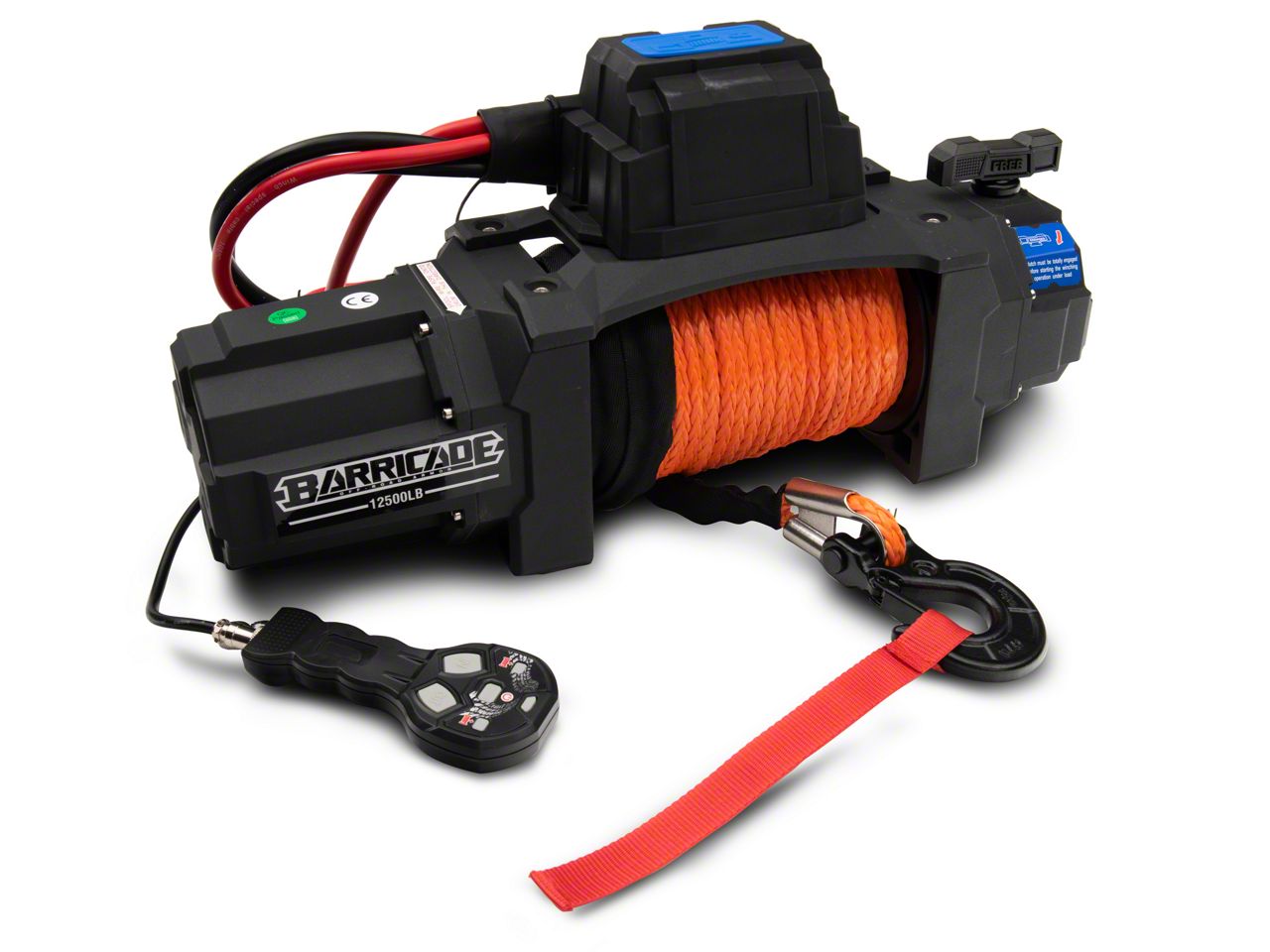

Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item S522956
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 12,500 lb. Single-Line Pulling Rating
- 6.6 HP 12-Volt Series Wound Electric Motor
- Three Stage Planetary Gear with 216:1 Gear Ratio
- Bright Orange Synthetic Rope - 85 Foot
- Wireless Remote
- Durable Black Powder Coat Finish
- Overall Dimensions: 21.17 x 6.38 x 7.72 Inches
- Mounting Bolt Pattern: 254mm x 114.3mm
- Weight: 66 Pounds
- Winch Cover Not Included - Sold Separately
- Universal Application - Fits all GMC Sierra 1500 Models
Description
Be Prepared. Whether you are a novice or a serious off-roader, you should take a page out of the Scout's hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your rig with a reliable recovery system like Barricade Off-Road's 12,500 lb Heavy Duty Winch. This Barricade Winch will help you to get out of the messiest situations.
Heavy Duty 12,500 Pound Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 horsepower series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 216:1 gear ratio, this Barricade Winch provides 12,500 pounds of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 12,500 pound Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the included bright orange synthetic rope while also keeping it from binding. This Barricade Winch also includes a wirless remote control allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 22.17 × 6.38 × 7.72 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade 12,500 Pound HD Winch with Synthetic Rope and Wireless Control features a universal designed allowing for use on all GMC Sierra 1500 models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds- 0 pounds - 33 feet per minute
- 4,000 pounds - 15.1 feet per minute
- 6,000 pounds - 13.1 feet per minute
- 9,500 pounds - 10.5 feet per minute
- 12,500 pounds - 9.2 feet per minute
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Winch cover not included - sold separately.
- Replacement Hardware – SKU U11219H
Barricade U10189
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 12,500lb Winch
- Orange Synthetic Rope - 85 Foot
- Hawse Fairlead
- Wireless Remote Control Lead
- Wiring Harness
- Rope Hook >
- Hardware
- Winch Cover NOT Included
