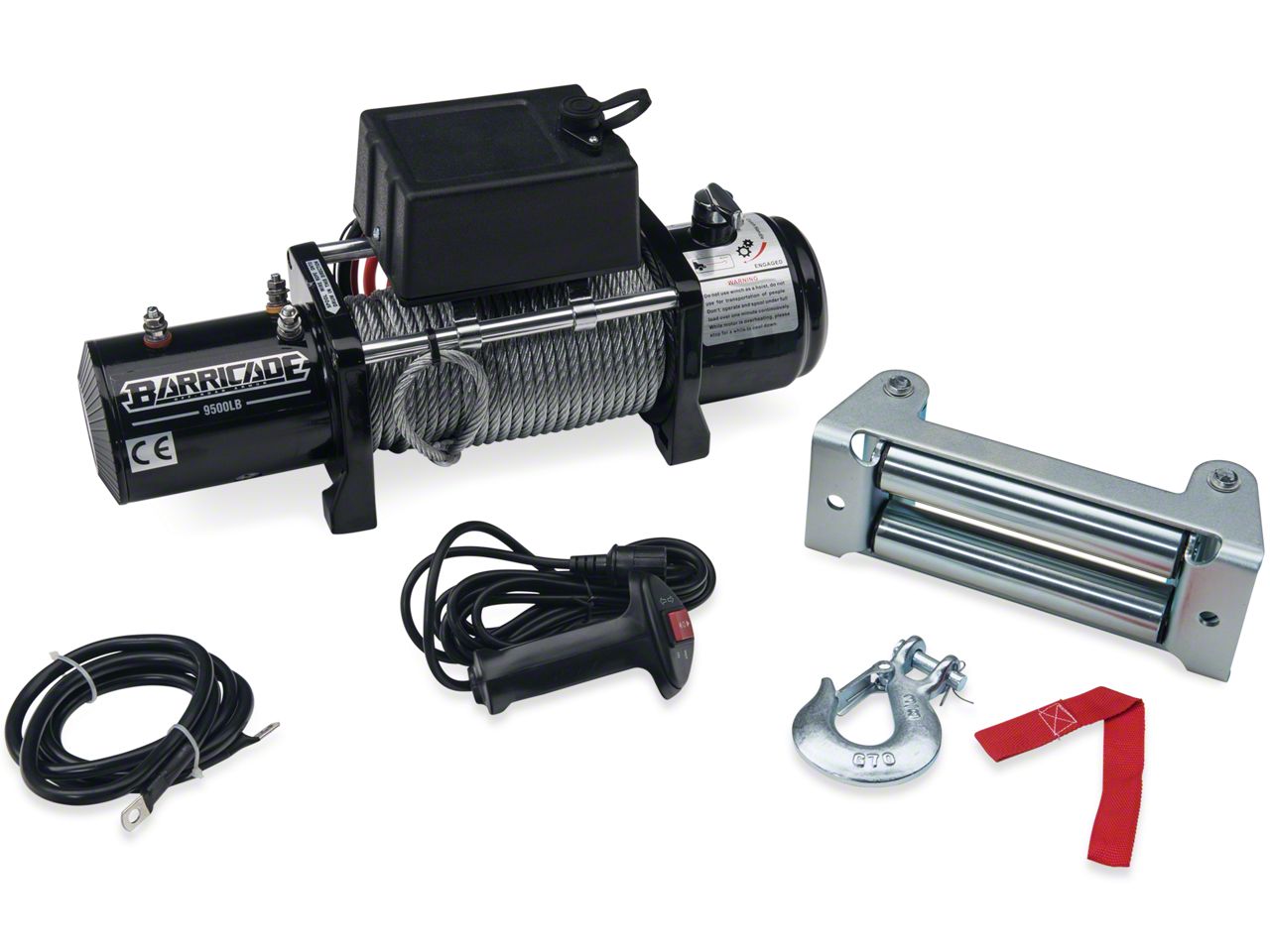

Barricade 9,500 lb. Winch (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

Pulling Power. If you take your GMC Sierra off-road, you know the importance of being prepared for any situation. It is for this reason you should outfit your Sierra with a reliable recovery system like Barricade Off-Road's 9500 lb Heavy Duty Winch. This Barricade Winch will provide you with the pulling power you need to get yourself or others freed from the deepest mud or biggest rock jam.

Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 195.4:1 gear ratio to provide 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum roller fairlead that helps reduce wear and tear on the 94 feet of 21/64" steel cable, as well as keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.

Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation.

Application. This Barricade Off-Road 9500lb Winch is designed for use on all 1999-2024 GMC Sierra 1500 models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

Line Pull Speeds

• 0 lbs. - 35.4 ft./min
• 2000 lbs. - 14.8 ft./min
• 4000 lbs. - 11.2 ft./min
• 6000 lbs. - 9.5 ft./min
• 8000 lbs. - 7.87 ft./min
• 9500 lbs. - 6.43 ft./min

• Replacement Hardware – SKU U2395H
