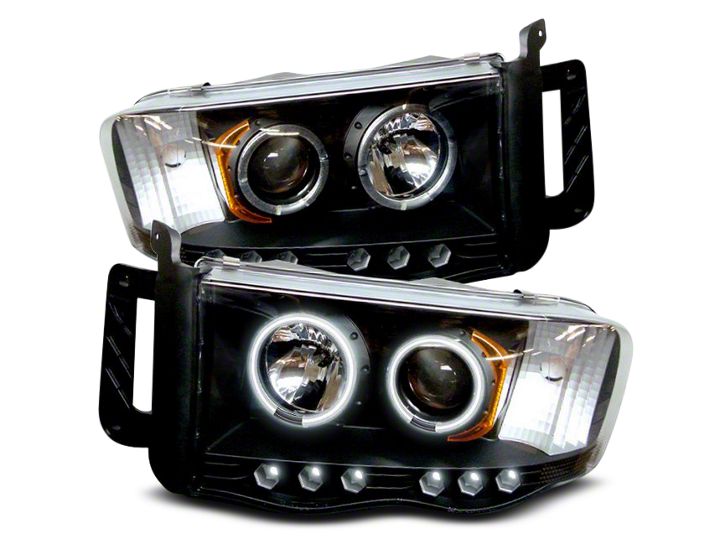

How to Install Axial Black Projector Headlights w/ CCFL Halos on your Ram

Connect the CCFL Inverter to the CCFL wires on the headlight. The inverter is a Snap-on plug.

The CCFL wires comes with a heat shrink wrap, use a heat gun or a lighter to shrink the plugs together. When using a lighter, make sure to heat on the wrap and not on the wires itself.

Connect the CCFL Inverter with the L.E.D. wires  Using the quick connect, connect the CCFL inverter Positive(white). Same goes with Negative wires

Use the Crimper to close the quick connects to­gether. Check the wiring after connecting, make sure it is connected properly.

Check all connections before installing the headlights onto the vehicle. Connect the Posi­tive and Negative wires to the battery terminal to see if all CCFL and L.E.D.’s are lid up.

Most users connect the CCFL/L.E.D.’s on the parking/run­ning lights. This instruction, we’re gonna connect to the Parking/Running lights.

First, locate the parking lights on your vehicle Head­light housing. Some Parking lights come with two(running lights, ground) or three(running lights,turn signal,ground) wires.

To determine which wires are what on the Parking lights, we use a volt meter.

The volt meter has a positive(red) and negative(black) needles. First turn on the parking light and signal on. Then Pinch the Negative needle to a ground or negative wire(as shown). Then Pinch the Positive wire to one of the color wires on the turn signal.

To understand how to read the volt meter in simple term; When the needle stays constant on high voltage, the wire that was pinch is a Running/Parking light. Meaning the parking light on your vehicle stays on whenever the lights are turned on.

If the needle bounces on the meter, the wire is a turn signal. The voltage to the turn signal pull high and low in order for the turn signal to blink.  We don’t recommend to

Once you locate the running wires, use the quick connects and connect the CCFL/L.E.D. Positive wires to the running lights.

Use the quick connect and connect the CCFL/L.E.D. Negative wires to the negatie wires on the Parking Lights.

Before putting the headlight back on, check the CCFL/L.E.D.’s make sure they all lid up.

You’ve just installed CCFL/ L.E.D.’s on your vehicle.
