ARB Intensity V2 22-Inch LED Light Bar (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

Item FR36917

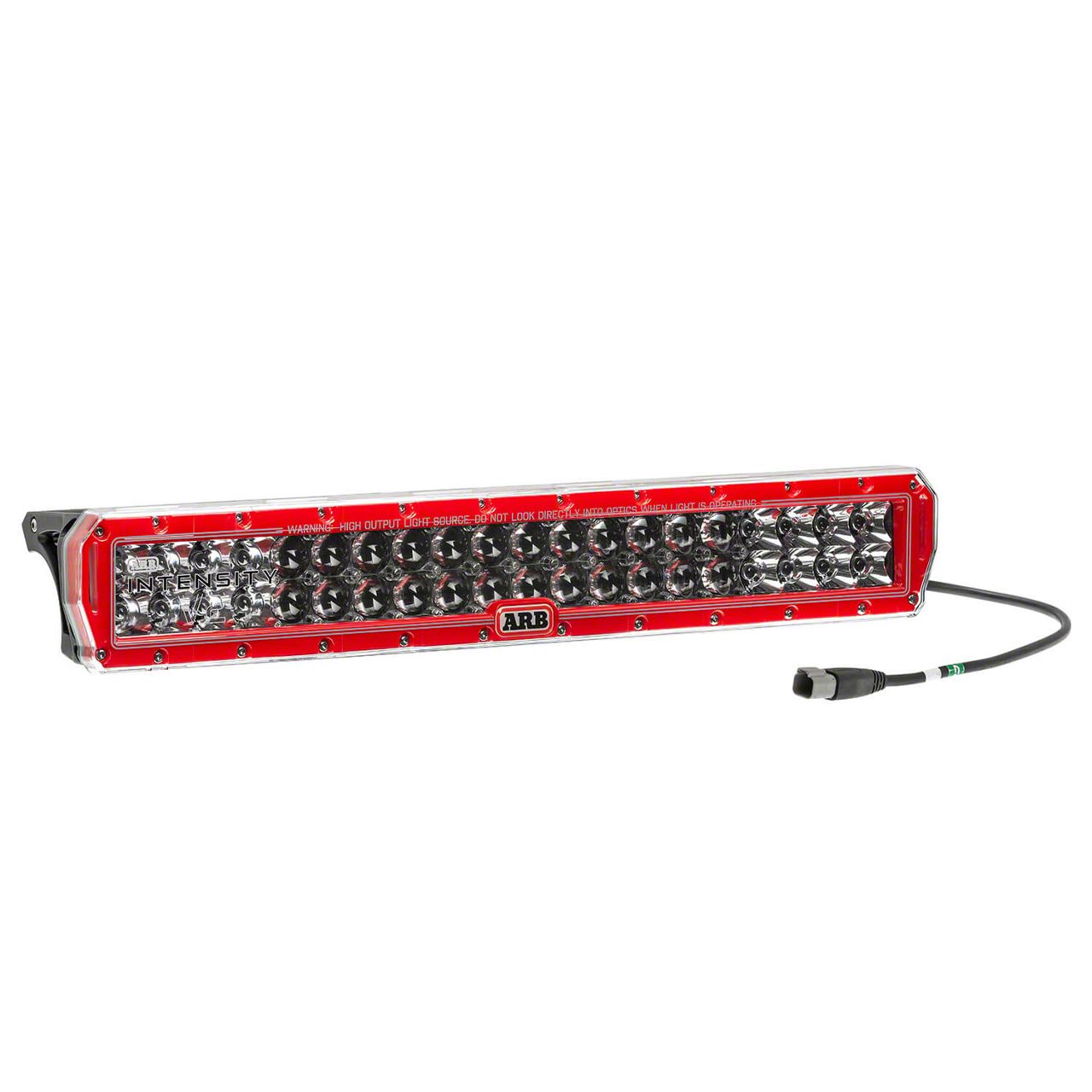

ARB Intensity V2 22-Inch LED Light Bar (Universal; Some Adaptation May Be Required)
Verify parts fit and get product recommendations.
Ranger Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$662.00

In Stock

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Description, Q&A

      Features & Specs

      Description


      The ARB Intensity V2 LED light bar utilizes Hyperspot optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs encased in a virtually indestructible polycarbonate lens and powder coated, extruded aluminum body with high-pressure die-cast end caps. Designed to integrate with the top tube of the bumper, the extruded alloy housing wraps around the tube, providing a low-profile integration with the bumper to maximize airflow to the cooling system and reduce obstructions. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off-road use, eliminating vibration while being adjustable so that it won’t interfere with aerial mounting tabs. Performance is paramount, with a heat sink that allows the light bar to dissipate heat quickly and operate at optimum efficiency even when the vehicle is stationary or at low speed. ;
      Features & Benefits
      High output OSRAM square LED's
      Powder-coated aluminum extruded body
      Dimensions - 560mm (22.1 in) x 91mm (3.6 in) x 125mm (4.9 in)
      25,080 Raw Lumens for the AR40CV2 Combo.
      9-36 Volts operating
      305 watts of power
      21A @ 14.4V (Requires new looms)
      1 Lux @ 926m (3038ft)
      6 degree Spread for Spot and 20 degree spread for Flood
      Input Cable Length 400mm (15.74 )
      Operating Temp -40C to 63C (-40F to +145F)
      Operating Temp -40C to 63C (-40?F to +145?F)

      ARB AR40CV2
