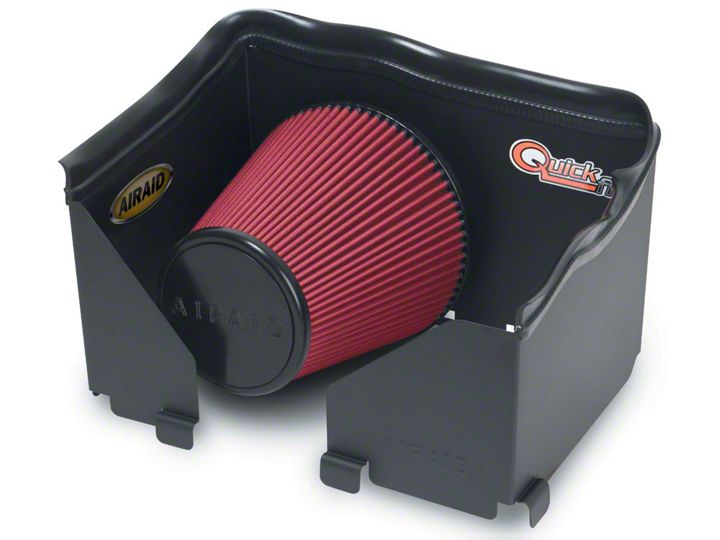

How to Install Airaid QuickFit Air Dam w/ Red SynthaMax Dry Filter on your Ram

1. Disconnect the negative battery cable!
Disconnect the factory breather hose from the air cleaner lid.

2. Unlatch 4 clips that hold down the factory airbox lid. Loosen the hose clamp on the factory intake tube where it connects to the airbox lid, then remove the lid.

3. Remove the factory air cleaner.

4. Install the Quick Fit Panel (#2) by slipping it into the factory intake tube, and then sliding it over the tabs on the factory airbox base. Adjust it for fit on top of the airbox base, and re-latch the 4 clips to hold the Quick Fit Panel securely in place.Apply the Airaid Foil Decal onto the Panel as shown.

5. Slide the factory intake tube all the way onto the Quick Fit Panel tube and tighten the hose clamp. Slip the #24 speed clamp(#4) over the factory breather hose and re-connect the factory breather hose to the nipple on the Quick Fit Panel. Squeeze the speed clamp to secure the breather hose.

6. Install the Airaid Premium Filter (#1) onto the tube of the Quick Fit Panel as shown, and tighten the hose clamp. Now install the weather strip (#3) on top of the Quick Fit Panel. (Hint: Start with the end of the weather strip at one corner, and work your way around to the other corner.)
