How to Install Airaid PowerAid Throttle Body Spacer on your Ram

1. Disconnect the negative battery cable!
A.) Disconnect the intake air temper atur e sensor .
B.) Loosen the hose clamp that secur es the flexible intake tube to the resonator.
C.) Loosen the bolt that secures the resonator to the intake manifold. Remove the resonator from the vehicle by lifting up on the front, and then pulling it towards the front of the vehicle.

2. Remove the four bolts that secure the throttlebody to the intake manifold. Remove the throttlebody from the intake manifold and set it aside. (No need to disconnect the wiring harness.)

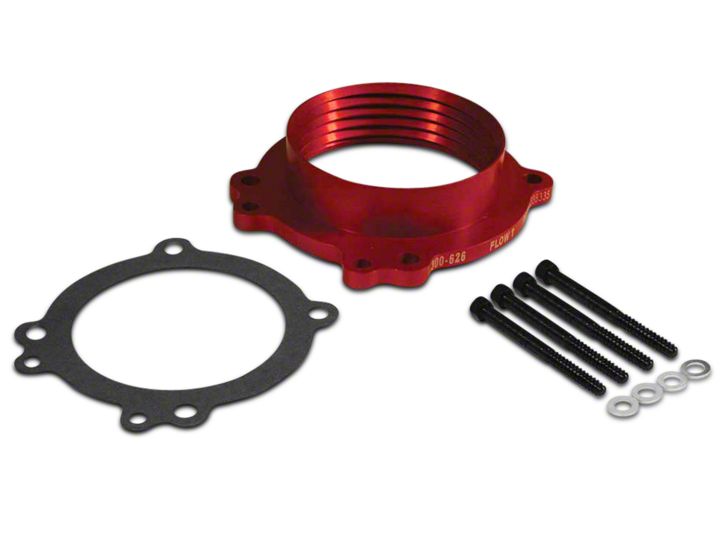

3. Install the Poweraid Spacer into the intake manifold as shown. Make sure the spacer is seated correctly over the two alignment pins on the intake manifold. *Note: Poweraid spacer must be installed with bore protruding into intake manifold away from throttle body. Incorrect installation will hinder performance.

4. Install the provided bolts and washers thru the throttlebody and Poweraid Spacer and tighten to the manufacturer's specifications.

5. Reinstall the resonator and tighten the bolt that secures it to the intake manifold. Reinstall the intake tube, tighten the hose clamp, and reconnect the intake temperature sensor.

Re-connect the negative battery cable!
