How to Install AFE Silver Bullet Throttle Body Spacer for Factory Intake or aFe Cold Air Intakes (03-08 5.7L RAM 1500) on your Dodge RAM

Tools Required
  • 5/16” nut driver or slotted screwdriver
  • Phillips screwdriver
  • 1/2” open end wrench
  • Medium size pliers
American Muscle

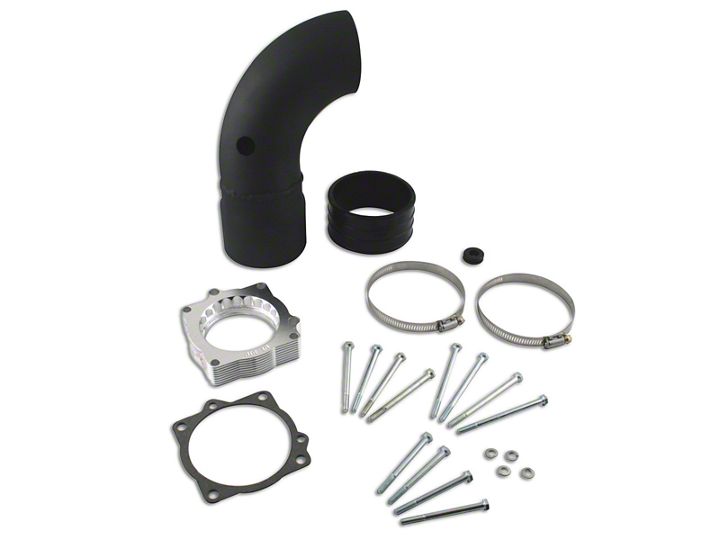

Shop Parts in this Guide

Stock vehicle


Loosen clamp on inlet tube to intake plenum


Disconnect electrical connector from temp sensor


Remove intake plenum mounting bolt


Remove intake plenum mounting bolt


Remove intake plenum from vehicle


View of intake plenum removed from vehicle


Remove temp sensor from intake plenum


Remove rubber seal from throttle body


Disconnect electrical connector from throttle body


Remove bolts (4) from throttle body


Remove throttle body from vehicle


Install throttle body on intake manifold. Place supplied gasket between throttle body and spacer.


Secure throttle body to intake manifold using supplied hardware.


Insert supplied grommet into hole on intake tube


Insert temp sensor into grommet in intake tube


Install supplied coupler and clamps on throttle body, do not tighten


Re-connect electrical connector to temp sensor and throttle body


Insert intake tube to factory accordion tube.


Insert intake tube into throttle body coupler. Tighten clamps (3) on both ends of intake tube


Installation complete
