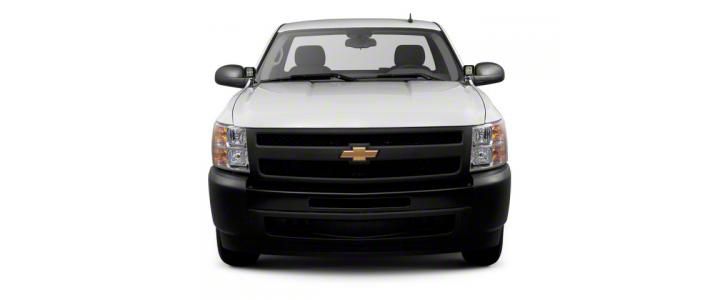

How to Install ZRoadz Hood Hinges Mounting Kit w/ Two 3 in. LED Light Cubes (07-13 Silverado 1500) on your Chevy Silverado

Installation Time

2 hours

Tools Required
  • Various Socket Set
  • Various Wrenches
  • Ratchet Tool
  • Ratchet Extensions
View PDF Guide
American Muscle
Shop Parts in this Guide

Parts included

- (1) Driver Side Light Mount Bracket
- (1) Passanger Side Light Mount Bracket

* Simulated Rendering, NOT Actual Parts.




HARDWARE INCLUDED

* APPLIES TO KIT PACKAGES ONLY

Z362051-KIT2
(2) - M8 - 1.25 x 20 Stainless Steel Hex Bolt
(2) - M8 Stainless Steel Nuts
(2) - M8 Stainless Steel Lock Washers
(1) - Bracket - L
(1) - Bracket - R

Z362051-KIT4
(4) - M8 x 12mm Hex Cap Screw
(2) - M8 - 1.25 x 20 Stainless Steel Hex Bolt
(6) - M8 Stainless Steel Nuts
(6) - M8 Stainless Steel Lock Washers
(2) - Dual Light Bracket Adapter
(1) - Bracket - L
(1) - Bracket - R

START HERE

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE INSTALLATION. Auto makers offer varied models to each vehicle and occasionally manufacture more than one body style of the same model. To assure your part is correct; our tech department can be contacted at [email protected] to verify fi tment and assist with technical questions. All other inquires can be directed to [email protected]. In the event you do not have internet access please call 844-653-8040

BEFORE YOU BEGIN

START HERE: Turn off engine, chalk tires with stop block, open the hood and disconnect the battery.

1) Identify the pair of Fender Core Support.

NOTE: There are actually three pairs on each side.

The Hood Hinge Brackets will mount to the pair in the very back closets to the windshield.


2) Loosen and remove the two bolts.

Put into place the provided ZROADZ Bracket Mounts.


3) Secure bracket to vehicle’s core support using the factory bolts. Repeat on opposite side of vehicle. At this point, carefully close the hood while checking for clearance and the ZROADZ Brackets are correctly positioned.


4) Mount LED Lights onto each of the brackets. For Now, Hand tighten mounting bolts.


STEP 5: Wire LED Light with a ZROADZ optional wiring harness kit (part# Z390020S-A) or by utilizing a compatible custom wiring harness. ZROADZ recommends LED Lights be wired with ZROADZ harness kit (part# Z390020S-A).


6) To adjust the angle of your Light Bar, rotate the LED(s) to adjust the angles till your desired light pattern is reached. You may than tighten the hardware and also mounting bracket to hood and secure everything into place. Note your tape marker under hood to check for proper alignment. Be careful not to over tighten the mounting hardware.

It is best to adjust the angle with the vehicle on level ground with lights facing a wall, garage door or other solid barrier. We recommend checking from a distance of 25’. Your installation is now completed.
