Find 3 Inch to 5 Inch Lift Kits for your F-150

Zone Offroad 4-Inch Front / 2-Inch Rear Suspension Lift Kit with FOX Shocks (21-25 4WD F-150 w/o CCD System, Excluding PowerBoost, Powerstroke, Raptor & Tremor)Find parts that fit my vehicle

Item T570041
Product Image
Zone Offroad 4-Inch Front / 2-Inch Rear Suspension Lift Kit with FOX Shocks (21-25 4WD F-150 w/o CCD System, Excluding PowerBoost, Powerstroke, Raptor & Tremor)
Verify parts fit and get product recommendations.
F-150 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
51 Reviews
Our Price

$1,677.06 kit

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Suspension Lift Kit
      • Lift Height: 4-Inch Front, 2-Inch Rear
      • Includes FOX Shocks
      • Maintain Ride Quality and Handling Performance
      • Clearance Up to 35-Inch Tires
      • Steel Construction
      • Powder-Coated Finish
      • Complete Kit for Easy Installation
      • Limited Lifetime Warranty
      • Five-Year/60,000-Mile Drivetrain Warranty
      • Fits 2021-2025 4WD Ford F-150 Models without CCD System, Excluding PowerBoost, Powerstroke, Raptor, and Tremor

      Description

      To Greater Heights. Stand out among the rest with an added lift height to your truck and a new aggressive look with the Zone Offroad 4-Inch Front/2-Inch Rear Suspension Lift Kit with FOX Shocks. Experience enhanced handling performance, better off-road protection, a more comfortable ride, and an eye-catching new look with a clearance that can handle up to 35 inches of tires.

      Heavy-Duty and Long-Lasting. This kit comes complete with all you need: highly durable cross-members and steering knuckles, shock absorbers, as well as strut spacers, and a rear block kit to level out the stance. The components are made of premium-quality steel and finished with powder coating for long-lasting protection from rust and corrosion.

      Installation. Advance mechanical expertise is required to install this kit which will take around 6-8 hours. To aid in a trouble-free installation, this kit comes complete with all the parts, accessories, hardware, and instructions needed.

      Warranty. A Limited Lifetime Warranty backs this product against manufacturing and material defects. A 5-Year/60,000-Mile Drivetrain Warranty is also included when you purchase this product.

      Application. The Zone Offroad 4-Inch Front/2-Inch Rear Suspension Lift Kit with FOX Shocks is compatible with all 2021-2025 4WD Ford F-150 models without CCD System, excluding PowerBoost, Powerstroke, Raptor, and Tremor.


      IMPORTANT NOTES

      • Will fit models with Auto 4wd that do NOT have the 4WD actuator hub assembly
      • Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.”
      • 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20’ wheels can be used with up to a 305/60R20 tire.
      • 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 18 - 20"wheels with 5.5-5.75" of backspacing is highly recommended for tire to frame crash bar clearance. 37" tires will require crash bar modification
      • Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
      • Block kits replace factory 1-1/4” block. Stock block will not be reinstalled.
      • Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
      •
      • Will not work with trucks equipped with CCD (Continuous Controlled Damping)
      • Does not fit diesel models.
      • Will not fit Tremor models.
      • Requires frame bracket modification
      • This system has not been tested on models equipped with Ford BlueCruise

      Fitment:

      Details

      Zone Offroad ZONF99F

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

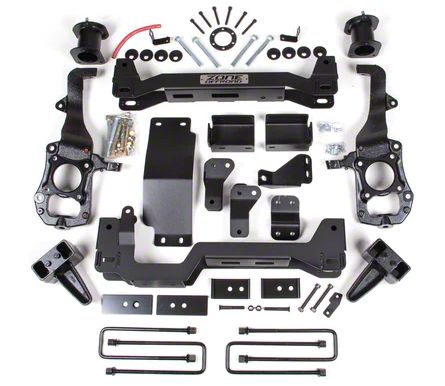

      What's in the Box

      • Frame Crossmembers - Front and Rear
      • Differential Drop Brackets
      • Strut Spacer - Front
      • Rear Lift Block & U-Bolt Kit
      • Skid Plate
      • Steering Knuckles
      • FOX 2.0 Adv Series IFP Shocks
      • Hardware
      • Installation Guide
      4.7

      Customer Reviews (51)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 2.7L V6 EcoBoost - 21, 22, 23, 24, 25
      • 3.0L V6 Power-Stroke - 21, 22
      • 3.3L V6 - 21, 22, 23
      • 3.5L V6 EcoBoost - 21, 22, 23, 24, 25
      • 3.5L V6 EcoBoost Limited - 21, 22, 23
      • 3.5L V6 EcoBoost Raptor - 21, 22, 23, 24, 25
      • 3.5L V6 PowerBoost - 21, 22, 23, 24, 25
      • 5.0L V8 - 21, 22, 23, 24, 25
      • 5.2L V8 Supercharged Raptor - 23, 24, 25
