How to Install Westin Oval Tube Mount Kit - Black on your F-150

STEP 1. Remove contents from box and check for damage. Verify all parts are present. Read instructions completely before
beginning.

STEP 2. Remove black tape and large rubber grommets over mounting holes located on the inside face of rocker panel.

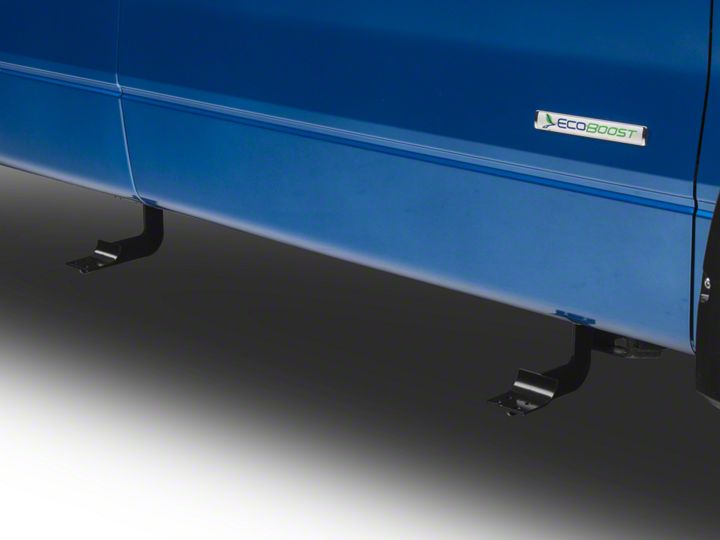

STEP 3. Install front and rear brackets as shown. Hand tighten. SEE FIGURE 1.

NOTE: Rear bracket is 1/2” longer than front bracket.

STEP 4. Place step bar on
saddle with long step pad forward and end cap screw facing inward. SEE FIGURES 4,5 AND 6.

STEP 5. Make sure step bar and brackets are properly aligned and tighten fasteners. Recommended torque values are 15
FT.LBS for 5/16” fasteners and 7 FT.LBS. for M6 fasteners.

FINISH PROTECTION
Westin products have a high quality finish that must be cared for like any other exposed finish on the vehicle. Protect the finish with a non-abrasive automotive wax, (e.g. Pure Carnauba) on a regular basis. The use of any soap, polish or wax that contains an abrasive is detrimental, as the compounds scratch the finish and open it
