Find Supercharger Kits & Accessories for your F-150
VMP Performance Gen3R 2.65L TVS Supercharger Kit (15-17 5.0L F-150)Find parts that fit my vehicle
Item T565724
$0.00
Our Price
$8,699.99 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Complete Gen3R Supercharger Kit
- Provides up to 750 Horsepower
- Generates up to 550 Foot-Pounds of Torque
- High-Quality Roots-Type Supercharger
- Includes Fuel Injectors, Intake System, and Heat Exchanger
- Does Not Have a CARB EO Number
- Includes a 1-Year Warranty
- Fits All 2015-2017 5.0L Ford F-150 Models
Description
FOR CLOSED COURSE COMPETITION USE ONLY. NOT INTENDED FOR STREET USE. THE SALE, USE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3)).

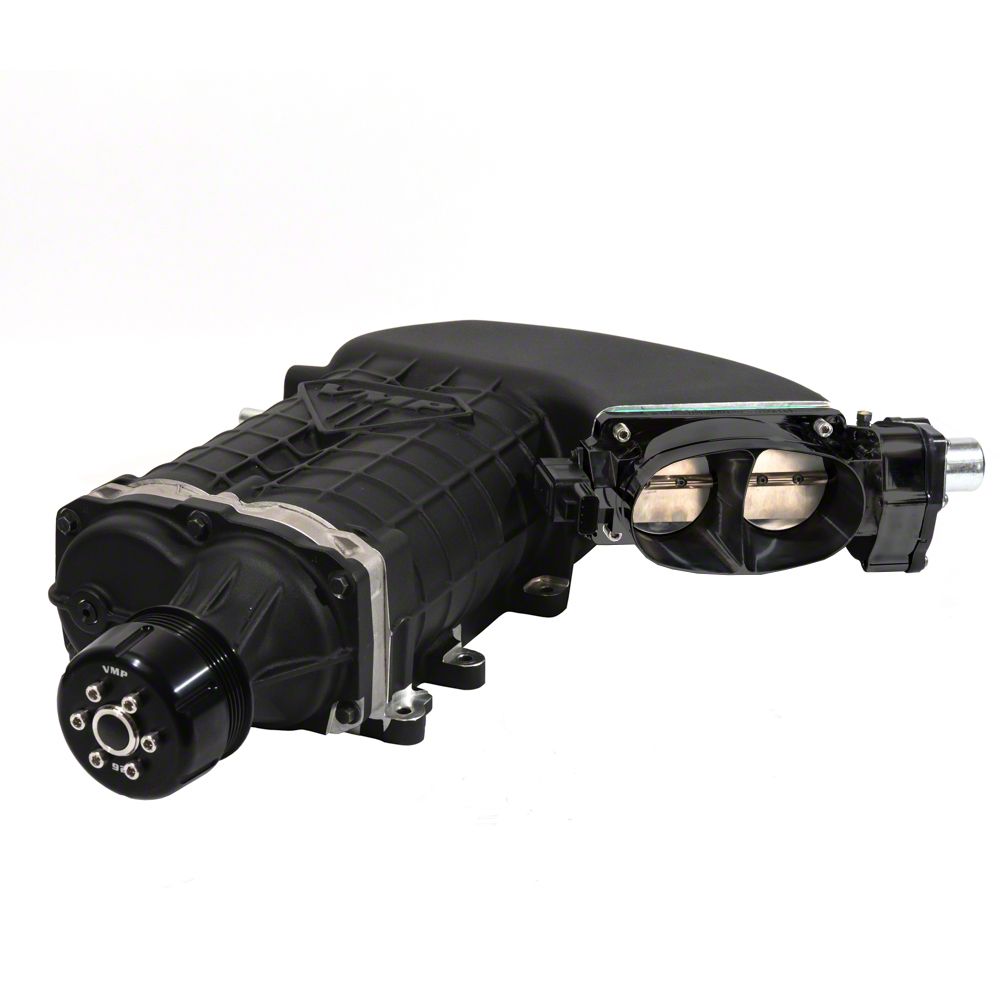

VMP 15-17 F150 5.0L GEN3R Supercharger Kit
VMP Performance’s line of superchargers does not end with just Mustangs. The same tire-shredding performance is available for your Ford F-150 5.0 L truck! With Ford’s switch to an aluminum-bodied F150 in 2015 the 1/2 - ton pickup shed over 700lbs, making it much quicker. Stop-light to stop-light, we guarantee the boost from a VMP Gen3 will surprise the vehicle next to you. On the street, or on the track, there is no replacement for the instant torque VMP’s TVS-based supercharger provides. Click on the video tab to see results from VMP’s own supercharged 2016 F150.
This kit starts with our latest head-unit, the VMP Gen3R 2.65L TVS. Everything you need to boost your 5.0L V8 truck is included.
Features
- Rated at 750 HP and 550 Ft/Lb TQ*
- Warrantied components
- Complete kit with custom tuning
- Easy to install at home in 8-12 hours by following our videos
- Maintains stock-like driveability
- Expandability - room to grow when you want to upgrade
The VMP Gen3R is the evolution of our original 2.65L design, a new high-flow case design and patent-pending port technology optimizes airflow and horsepower across a wide RPM range. Using Eaton Corp’s 2.65 L rotor-pack, it is one of the most efficient positive-displacement roots style compressors out there. The VMP Gen3R is perfect when you want more performance from your street truck, off-road machine, or bro-dozer. Whatever you choose to use your truck for, the VMP S/C kit will transform the performance of your F-150. In stock form the trucks dyno around 300-325 rear-wheel horsepower, the VMP Gen3 will boost power to 600-650 RWHP and beyond. VMP’s kits are fully upgradeable with larger throttle bodies and smaller pulleys; for when you choose to install supporting mods and desire even more power. Do you tow in the mountains? at 5,000 feet of elevation, 25% of your power is gone, effectively making your truck run like a naturally-aspirated V6. The boost from a VMP TVS supercharger makes up for that loss in air density. If you’ll be living and towing at high altitudes, you can choose to pulley your supercharger down to compensate.
This kit includes:
- VMP 2.65 GEN3R Supercharger
- 92 mm / 3.5 in supercharger pulley
- VMP cold air intake
- VMP Dual Fan Triple-Pass Heat Exchanger
- VMP Twinjet69 mm throttle body
- 56lb Injectors
- VMP PNP Fuel Pump Booster
- (1) VMP Tune for 91-93 Octane
- Please refer to the "VMP Supercharger Kit Tuning Support" section below for more information
Recommended parts:
We recommend NGK TR7ix plugs for supercharged coyotes
Application. The VMP Gen3R 2.65L TVS Supercharger Kit fits all 2015-2017 5.0L Ford F-150 models.
VMP Supercharger Kit Tuning Support
FAQ
What modifications / vehicles are supported in the supercharger kit's included tuning?
- The included tuning does support minor modifications such as:
- Longtube headers
- Thermostats
- Aftermarket transmissions (+ $100)
- Tire Size & Rear End Gear Ratio
- The included tuning does NOT support parts that are changed out from the kit, parts that are modified from it's intended to be used in the kit, or other major modifications such as:
- Aftermarket camshafts or changes in VCT functionality - See VMP Level 3 Custom Tuning
- Aftermarket fuel systems - See VMP Level 3 Custom Tuning
- Custom or modified cold air intakes - See VMP Level 3 Custom Tuning
- Engine swaps or aftermarket ECUs / control packs - See VMP Level X Custom Tuning
- The included tuning does NOT support vehicles that the kit is not intended for such as GT350s.
How and when will I receive my tune file?
- 3 -5 business days after the VMP Tune Order Form has been submitted, and all necessary information (Requested photos, stock files, strategy reads, etc) has been received by VMP.
- When purchasing an SCT device along with a supercharger kit, your tune file will be loaded to your device before shipment once the VMP Tune Order Form is submitted and all necessary information has been received by VMP.
- HP Tuner's device users and customers that already have an SCT device will receive their tune file via Email or via the HP Tuner's TDN phone application.
Does the included tuning allow for datalogging and tune revisions?
- Yes, VMP will review datalogs and provide tuning revisions to dial in the vehicle. This tuning support is available for 6 months after the file is sent, and is limited to a number of datalogs / revisions at VMP's descretion.
Is there a time period that I have to redeem the supercharger kit's included tuning?
- Yes, the included tuning must be redeemed within 6 months of purchase. We recommend filling out the VMP Tune Order Form before the installation is started so that you will have your file on hand once completed. We also recommend redeeming the supercharger kit's tuning even if you don't plan to use it, so you will have a back up tune file that you know will run and drive in the event you cannot receive proper tuning elsewhere.
Fitment:
DetailsVMP Performance VMP-SK1517FG3R
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Supercharger Unit
- (1) Set of Fuel Injectors
- (1) Set of Billet Fuel Rails
- (1) Throttle Body
- (1) Intake System
- (1) Heat Exchanger
- Installation Hardware
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 5.0L V8 - 15, 16, 17
