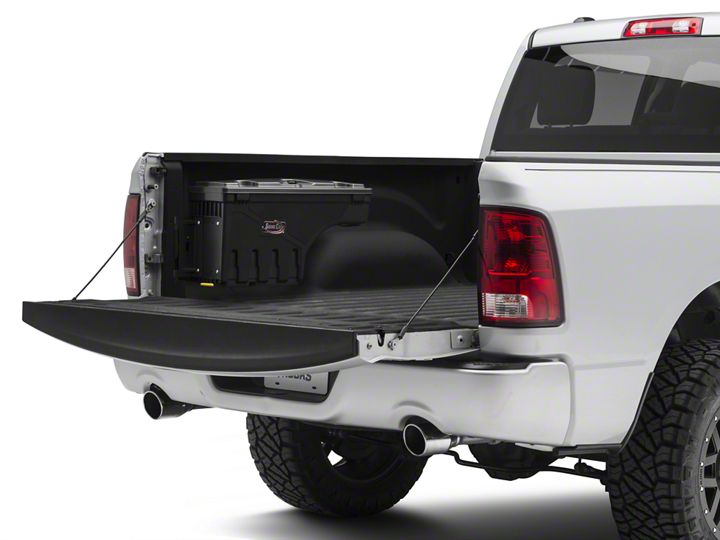

How to Install UnderCover Swing Case Storage System - Driver Side (02-18 RAM 1500) on your Dodge RAM

Included in Box:

· Tool box
· Bracket A (taller bracket w/ storage
box posts)
· Bracket B (longer skinner bracket with
bronze locking mechanism)
· (6) Mounting screws
· (2) Screw nuts
· (2) Keys

1. Remove the plastic/rubber covering from the 2 screw post on bracket A and slide
bracket B over the 2 screw post using the 2 nuts to secure it together.

2. Tighten using the 7/16 wrench until snug.

3. A-line the bottom of bracket A about 1 1⁄2 inches above the bottom bed of your
truck, with the pegs for the tool box facing upwards.

4. Draw marks inside of each of the 6 screw holes.

5. Set the bracket aside and drill through the truck bed side wall until you go
through for all 6 of your marks.

6. Re-position the bracket over the holes and screw in the mounting screws, they
will require force to get started.

7. After all 6 of your mounting screws have been screwed in double check to make
sure they are all tight, just be careful not to over tighten and strip the screw.

8. Position the holes in the tool box mount over the pegs on bracket A and slide it
down.

9. Push the tool box toward the side of your truck until in latches closed and your
done.

10. I recommend keeping the tool box locked, as well as putting a padlock in the
designated area so that no one can steal your brand new storage box.

Installation Instructions Written by AmericanTrucks Customer Garrett Friou on 4/17/18
