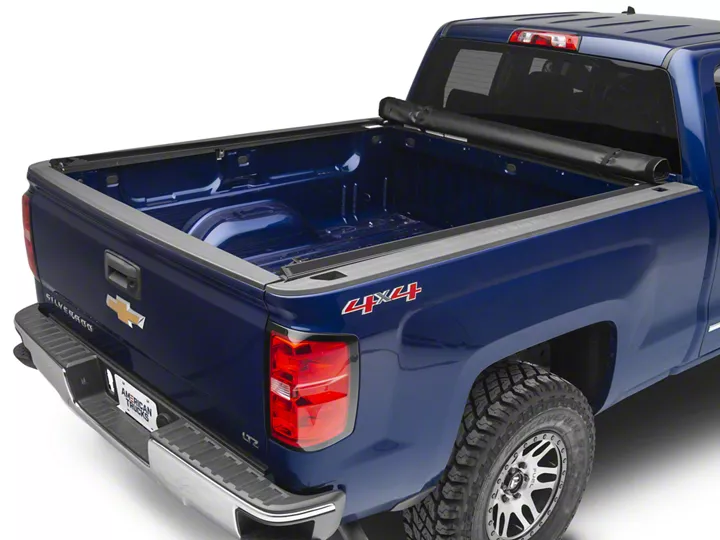

How to Install Truxedo Lo Pro QT Roll Up Tonneau Cover on your Silverado

Installation Time

1 hours

American Muscle
Shop Parts in this Guide

1. With side rails positioned as shown attach clamps and plastic shims to the side rails at the locations shown. Refer to detail A and B for plastic shim placements.

CAUTION: Note: If your truck has aftermarket or factory bed caps, use plastic shims, part number 1117097. Failure to do so may cause side rail to not sit level and or could cause damage to the vehicle. Contact customer sevice for information regarding shim kit 1117097.



CLAMPING INSTRUCTIONS FOR GM, PREFERRED METHOD

2. Disassemble stake pocket clamp assemblies by unscrewing the stake pocket clamp half from the female clamp half.



3. Insert stake pocket clamp half into stake pocket. Pull up slightly on bed cap cover to allow clamp to slip between plastic stake pocket and metal side rail. While holding stake pocket clamp half, insert male clamp half and bolt through the bolt hole of the stake pocket. Insert plastic shim in clamping location. Bolt clamp halfs together and tighten.

CAUTION: Tighten clamp assemblies securely on side rails before driving vehicle. Torque all clamp bolts to 8 FT Lbs.



CLAMPING INSTRUCTIONS FOR GM, SECONDARY METHOD

With side rails positioned as shown attach clamps and plastic shims to the side rails at the locations shown. Refer to detail A and B for plastic shim placements.

Use this clamping method if a spray-on, or drop-in bedliner covers the rear stake pocket holes.

Note: If your truck has aftermarket or factory bed caps, use plastic shims, part number 1117097. Failure to do so may cause side rail to not sit level and or could cause damage to the vehicle. Contact customer sevice for information regarding shim kit 1117097.​
