How to Install Traxda 1.5 in. Leveling Kit on your F-150

Always use caution handling ABS or wheel sensor wiring. Avoid tension of any kind on wiring harness as this may cause damage or failure.

1. Trucks are often not level side to side from the factory. Please measure before installation.

2. Re-torque all hardware to manufactures specifications

3. When aligning, to get the best tire wear use our supplied specifications. OEM specifications are for trucks with stock wheels and tires. Larger tires will wear differently.

4. All instructions are written with vehicle on a 2-post lift with tires removed.

Step 1
Loosen and remove the front shock. Remove sway bar mount from lower control arm. Separate upper ball joint from spindle. Allow the lower control arm to droop. Remove spring from vehicle.

Step 2

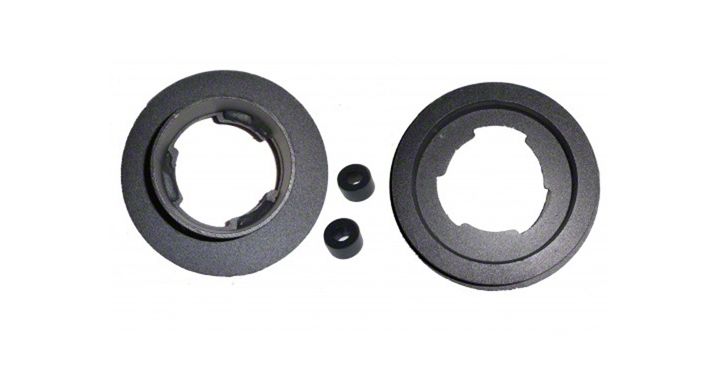

Use caution when removing spring from vehicle. With spring removed from vehicle, install TRAXDA part on spring as shown in Figure A. Reinstall the spring in the vehicle. Reattach upper ball joint to the spindle. Install shock spacer sleeve on shaft below lower washer and install shock.
