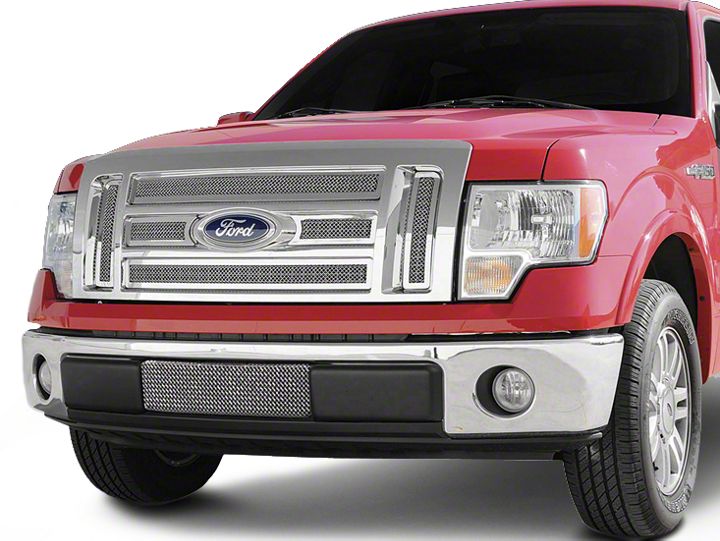

How to Install T-REX Upper Class Series 6-Piece Upper Overlay Grille - Polished on your F-150

Installation Time

30 minutes

Tools Required
  • 8mm Socket and Ratchet
American Muscle
Shop Parts in this Guide

PARTS LIST
(36) Washers
(36) 6/32 Nylon Lock Nuts
(1) Upper Class Grille


Step 1
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION. The installation can be done with the grille shell on the vehicle. Take one of the mesh grilles and insert it into the grille shell opening. There are 6 mesh grilles, 1 for each opening in the grille shell, make sure to use the correct mesh grille in the correct grille shell opening. The threaded studs on the back of the mesh grille will extend through the openings in the black plastic in the grille shell opening. (Fig 1)


Step 2
Once you have the mesh grille in the correct grille shell opening, add a washer and a 6/32 nylon lock nut to each of the threaded studs on the backside of the mesh grille. (Fig 2) Tighten the nuts with a 8mm socket and ratchet. Repeat this process to the remaining mesh grilles. Installation complete.
