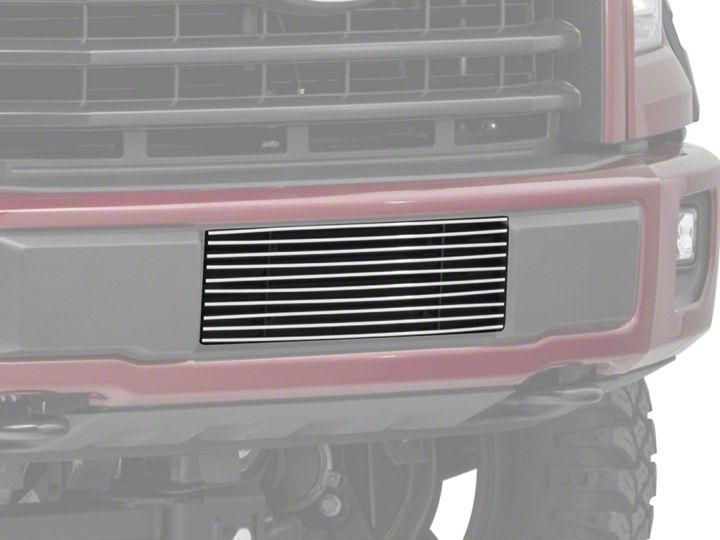

T-REX Billet Series Bumper Grille - Polished (15-16 All)

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE INSTALLATION.

Auto makers offer varied models to each vehicle and occasionally manufacture more than one body style of the same model. To assure your part is correct; our tech department can be contacted at [email protected] to verify fitment and assist with technical questions. All other inquires can be directed to [email protected]. In the event you do not have Internet access please call 1-800-287-5900.

Step 1: Front Bumper Removal
1) Turn off engine and chalk tires  with stop block. Open Hood.

SEE FIGURE 1 & 2
PRO TIP: Before you begin, use “3M Painters Tape” to  apply a protective guard around the work areas.  Attend to the fender and bumper valance. This will help protect the paint and finish of your vehicle.

Step 2:
2) Fit the Screw Anchor Clip over the  “L“ Bracket.

​

Step 3:
3) Configure the screw through the  T-REX Bumper Grille and into the mounting tab’s pre-determined hole.

Step 4:
4) Thread on the “L“ Bracket via the Screw Anchor Clip on the screw and align so that the “L“ Bracket will be prepared to fasten the Grille onto the vehicle’s lower bumper opening bottom lip.

Step 5:
5) Square up the new T-Rex bumper grille to the vehicle’s lower bumper opening. You may note that there is two welded tabs pointed up and also you “L“ Brackets pointed Down.

Step 6:
6) Insert grille. L-Brackets will pinch the lower bottom lip when the screws are tightened. The new T-Rex bumper grille is now mounted and secure.

Step 8:
​8) At this point you want to look over you work and examine the gap alignments around all edges and in between the new T-REX Grille and the vehicle components and body lines. Carefully close the hood for a complete visual inspection. If adjustment is needed, you can loosen the top mounts and shift side to side for even gaps.
