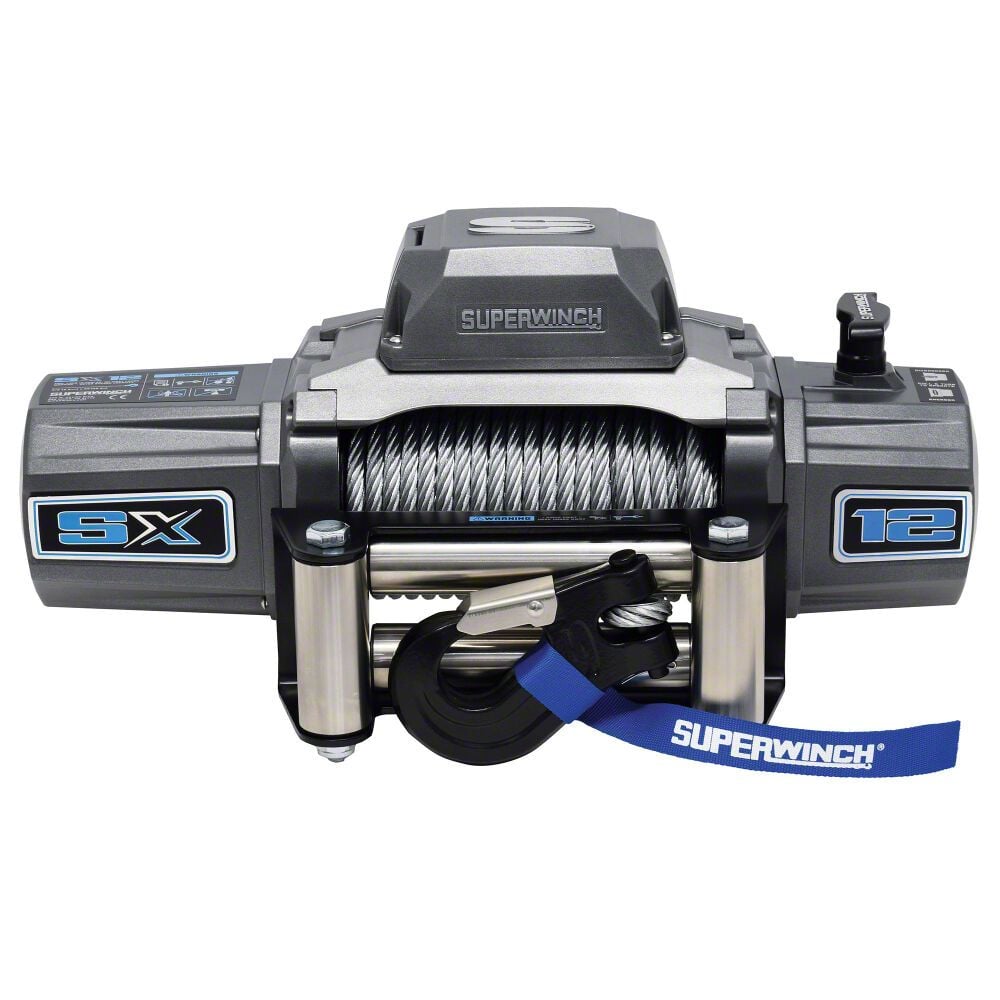

Superwinch 12,000 lb. SX12S Winch (Universal; Some Adaptation May Be Required)
Item SHR32724
$640.29
On Sale
-5% $640.29 each Was $673.99
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Reliable 12,000 lb. SX12S Winch
- Built-In Pull-and-Turn Clutch Handle
- Utilizes Rechargeable Lithium-Ion Battery
- Relocatable Die-Cast Aluminum Control Box
- Full 100% Load-Holding Automatic Mechanical Brake Built
- Precise 3-Stage Planetary Gearing Design (with 231:1 Ratio)
- Mounting Bolt Pattern: 10-Inch x 4.50-Inch (254mm x 114.3mm)
- Includes 12-Foot Hand-Held Wired Remote (with Flashlight)
- Line Speed: 68 Amps Motor Draw / 23.4 FPM (7.13 MPM)
- Incorporated 4-Way Stainless Steel Roller Fairlead
- Robust Clevis Pinned Latched Hook Integration
- Rated Single Line Pull (Lbs): 12000 Pounds
- Steel Wire Rope Material Construction
- Robust Steel Material Construction
- Integrated 6.0 HP Sealed Motor
- Patented Drum Light Feature
- Voltage: 12V DC
- Built-In Clevis Winch Hook
- Graphite Powder-Coated Finish
- IP68 Waterproof Rated Composition
- Engineered for Universal Applications
Description
Sturdy. Elevate your off-road recovery capabilities with the Superwinch 12,000 lb. SX12S Winch, is a powerhouse designed for universal applications. This winch boasts a robust 6.0 HP sealed motor and a sturdy steel wire rope, ensuring reliability and strength for the toughest pulls. With a rated single-line pull capacity of 12,000 pounds, it's ready to tackle any challenge.
Functional. The winch features a precise 3-stage planetary gearing design with a 231:1 ratio, providing efficient and controlled winching. The built-in pull-and-turn clutch handle, along with a relocatable die-cast aluminum control box, offers versatility and ease of use. Enjoy the convenience of a 12-foot hand-held wired remote with a built-in flashlight for nighttime operations.
Waterproof. The winch is equipped with a full 100% load-holding automatic mechanical brake, ensuring safety during use. Its IP68 waterproof-rated composition and graphite powder-coated finish guarantee durability in all weather conditions. The Superwinch SX12S is the ultimate solution for adventurers seeking reliability, power, and performance.
Installation. Putting this Superwinch 12,000 lb. SX12S Winch on your ride is easy and requires xxx drilling.
Warranty. There is a Limited Lifetime Mechanical and 7-Year Limited Electrical Warranty on this product.
Application. This Superwinch 12,000 lb. SX12S Winch fits universal applications.
Superwinch 1712200
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Winch
