How to Install Stainless Works 1-7/8 in. Headers w/ Off-Road Y-Pipe - Factory Connect on your F-150

Installation Time

1 days

American Muscle
Shop Parts in this Guide

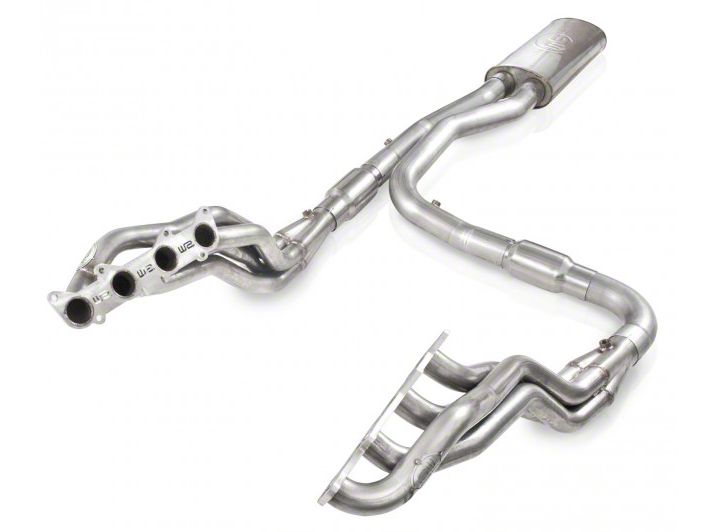

Thanks for purchasing Stainless Works Muscle Flow Headers for your Ford F-150 5.0L.
We have gone to great pains to make sure that our exhaust systems fit and sound great.
Please follow these steps to ensure that your installation goes as planned.

1. Stainless Works recommends the use of Hi-Temp RTV silicon gasket maker as an
option to or in conjunction with the use of factory gaskets. The recommended
RTV is Valco Sensor-Safe aluminum All-in-one or Permatex P/N 101BR,
available at NAPA and other retailers.

2. Disconnect the battery before starting work on the exhaust system for your
vehicle.

3. Your exhaust system can be installed by a weekend warrior but the use of a lift is
recommended for ease of installation. If using a jack, the vehicle must be placed
on a level hard surface and jack stands are required for safety reasons.

DISASSEMBLY

4. Raise and support the vehicle.

5. Remove the air box and inlet.

6. Loosen the factory exhaust at the 2 bolt flange (2) 10 mm bolts.

7. Loosen clamp at slip fit connection point (behind the 2 bolt flange connection
point) and remove the front section of pipe with resonator between the 2 bolt
flange connection and slip joint.

FOR CONNECTION TO STAINLESS WORKS EXHAUST

8. Remove exhaust from all hangers then remove from truck.

9. Remove skid plate on left side of transmission cross member, (4) 8mm bolts.

10. The following instructions are required only if you are planning to save the
factory exhaust, otherwise skip to line #20.

11. Remove 10 mm nut and 8 mm nut from drive shaft heat shield.

12. Remove (12) 10 mm bolts from front drive shaft and remove.

13. Remove (2) 6 mm bolts holding left and right heat shields to transmission cross
member.

14. Support transmission and transfer case with jack stands.

15. Remove (2) 12 mm nuts from transmission mount.

16. Remove (4) 12 mm bolts and nuts from cross member and remove cross member.

17. Remove (1) 10 mm bolt from left Y-pipe hanger.

18. Loosen clamp on left head pipe.

19. Unplug all O2 sensors.

20. Remove (2) 10mm nuts from left and (2) 10 mm nuts from right head pipes and
remove head pipes.

21. Reinstall cross member and mount and tighten.

22. If you are not planning to save the old exhaust, you can simply cut hangers from
Y-pipe to simplify removal of manifold pipes.

FOR CONNECTION TO ANY EXHAUST SYSTEM

23. Remove remaining (2) 6 mm bolts from right heat shield and slide heat shield
back toward the rear of the vehicle.

24. Remove starter and wires (1) 6 mm nut (2) 8mm nuts and (3) 8 mm bolts.

25. Mark steering shaft for later reinstallation to same markings, and remove (1) 10
mm bolt from upper U-joint and move out of the way.

26. Remove (2) 14mm nuts from right motor mount.

27. Raise motor with jack.

28. Remove right and left heat shields on manifolds (4) 6 mm bolts two per side.

29. Remove (16) 10 mm nuts, eight per side from manifolds and remove manifolds.

30. Remove all (16) 10 mm studs from heads.

31. Seal headers with RTV, allow the RTV to get tacky (about 15 minutes) and install
using remaining studs and nuts. Torque to OEM specifications.

32. Lower the motor and tighten nuts.

33. Re-install starter.

34. Re-install axle shield.

35. Re-install steering shaft.

36. Re-install right heat shield.

37. Re-install air box

38. Re-install (1) 6 mm bolt back in left heat shield at cross member.

39. Install left lead pipe to header with (1) 3” clamp.

40. Install catalytic converter or cat eliminator to left lead pipe.

41. Install rear left lead pipe to cat with 3” clamp with wire hanger.

42. Re-install left hanger to transmission grommet with (1) 3” clamp.

43. Install right catalytic converter or cat eliminator to header with one 3” clamp.

44. Re-install all skid plates.

45. Remove O2 sensors from old pipes and re-install in new pipes. Note that an O2
extension is provided for use with the left rear O2 sensor- install now.

46. Install and secure the wires away from the driveshaft using zip ties.

47. Re-install all skid plates.

FOR HEADERS TO FACTORY EXHAUST

48. Install factory Y-pipe using (2) 3” clamps.

49. Reconnect to factory exhaust using 2 1/2" clamps.

FOR HEADERS TO STAINLESS WORKS EXHAUST

50. Install X-pipe resonator using (2) 3” clamps.

51. Then follow instruction for catback installation omitting Y-pipe installation in the
cat back.

52. Reconnect battery. Be sure to have adequate clearance around all wires, hoses and
lines. If anything is in contact with the exhaust system, it will melt. Make
sure to have at least ½” of clearance and wrap any suspect areas with DEI thermal
barrier wrap.

53. After double checking for clearance and making sure all lines, wires and hoses are
secured, drive the car for 10-20 miles and re-check all clamps and clearances.
Your system maybe tack welded at the joints/clamps to reduce shifting of the
system during heating and cooling cycles. Make certain to disconnect the battery
before performing any welding.
