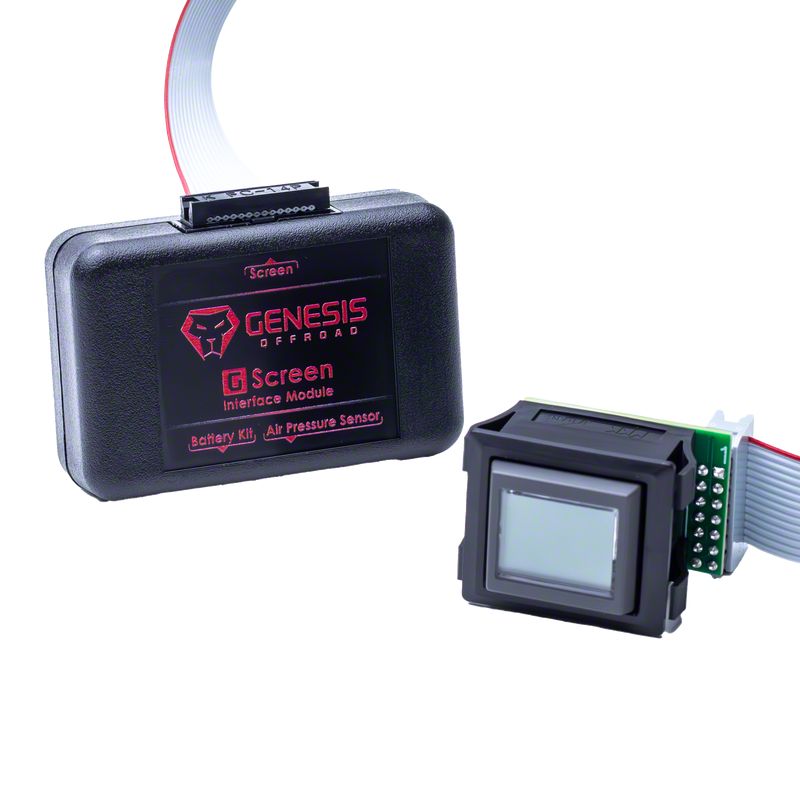

G Screen Monitoring System

for Gen 3 dual battery systems

Keep an eye on the status of your dual battery system

Monitors voltage levels of both batteries.
Remote status indicator - shows if the batteries are connected or disconnected.
Remote boost button - jump start the engine from inside the cab if your cranking battery is dead.

Background changes color to visually show your battery status at a glance

• Green - both batteries are fully charged, and they are connected together
• Yellow - the batteries are below 12.7v, and they are disconnected
• Red - at least 1 battery is below 12v. The screen will blink red a few times per minute to get your attention

Background light turns off after 45 seconds of inactivity

• Preserves battery power
• No glare while driving at night
• Voltage and status is still visible, but without the backlighting

Main Battery Voltage

Holding this screen down for 3 seconds will turn off the screen. Tap once to turn the screen back on.

Aux Battery Voltage

Holding this screen down for 3 seconds will turn off the screen. Tap once to turn the screen back on.

Status Screen:

AUTO mode - the system will automatically connect / disconnect the batteries based on the voltage levels

AUTO OFF - the batteries are isolated from each other

AUTO ON - the batteries are connected together

Hold screen down for 3 seconds to access the Boost menu

When the background turns white, tap the screen to cycle through the menu

Stop tapping to select the desired mode
