Roush R2300 650 HP Supercharger Kit; Phase 2 (15-17 5.0L F-150)Find parts that fit my vehicle
Item T549824
$0.00
Our Price
$23,549.97
Out of Stock
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features
- ROUSH R2300 2.3L TVS® Supercharger
- 650 HP @ 6500 Rpm and 585 lb-ft Torque @ 4000 Rpm
- 75mm Supercharger Pulley
- ROUSH Cold Air Intake System
- Twin 60mm Throttle Body with Spacer
- ROUSH Designed Fuel Rail with 47-Pound Injectors
- ROUSH Flash Voucher Card
- Three-Year/36,000 Mile Limited Parts Warranty
- CARB EO Number: D-418-27 or D-418-39
- Fits 2015-2017 5.0L F-150s
Description
Add More Power! From factory the 5.0L F-150 comes with a respectable 385 horsepower and 387 lb-ft of torque, but when you feel that is just not enough and you need something more, that is where the folks from Roush Performance steps in with their Phase 2 Supercharger Kit. By installing their R2300 TVS Supercharger, your mild matter Coyote will become a wild beast, with a ground pounding 650 horsepower and 585 lb-ft of torque.

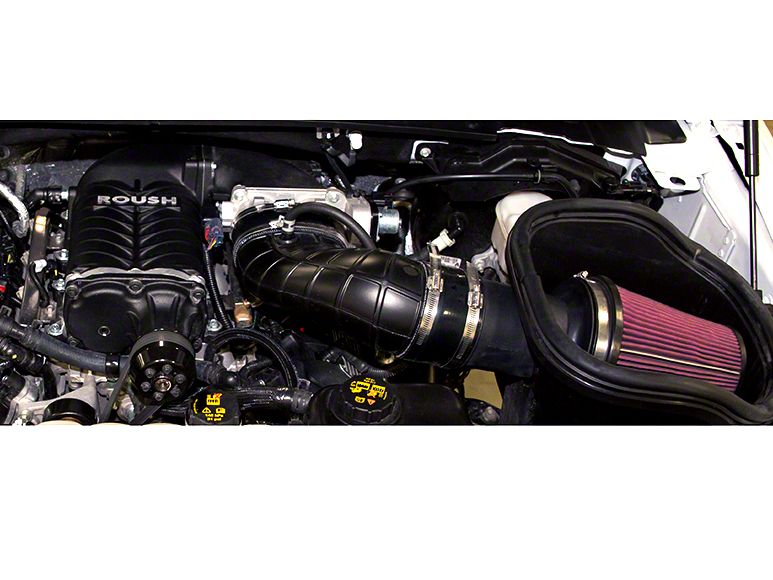

Monstrous Blower Developed by Roush. This complete package transforms your 5.0L F-150 into a tire-shredding beast. This kit comes complete with a 2.3L TVS® Supercharger in a black finish, a large aluminum intercooler, a low temp radiator, an oversized coolant degas bottle, a cold air intake system, a twin 60mm throttle body with matching spacer, a 75mm supercharger pulley and unique ROUSH designed 47-pound fuel injectors.
New High-flow Technology. The ROUSH R2300 Phase 2 Supercharger features Eaton's new cutting edge Twin Vortices Series technology (TVS) rotating assembly that delivers more power and better fuel economy in a smaller package for uncompromising performance. This a roots-type, positive displacement supercharger features twin 4-lobe rotors that are twisted 160-degrees to greatly enhance thermal efficiency, enabling higher volume capacity, and higher operational speeds.
Roush Performance Quality - Guaranteed. Roush is known for a rich tradition of excellent racing performance engineering at the highest level of OEM quality and design. This Supercharger kit features a limited 3-year/36,000 mile warranty.
CARB Certified. This kit is CARB certified with EO numbers of D-418-27 for model years 2015-2016 and D-418-39 for 2017.
ROUSH PCM Calibration. As part of this Phase 2 Package, you will receive a ROUSH® PCM Flash Voucher Card, which is used to obtain the specific calibration needed for your F-150 and requires ROUSH Diagnostic Tool (RDT) software and a J2534 Pass-Through device to upgrade your PCM (software and pass-through device not included). If you don't have access to a pass-through device, you have the option of sending your PCM back to Roush, where they will flash your PCM for an additional $100 fee.
Application. This Roush R2300 Phase 2 Supercharger Kit is specifically designed for use on the 2015-2017 F-150s powered by the 5.0L 4V Coyote engine.
Monstrous Blower Developed by Roush. This complete package transforms your 5.0L F-150 into a tire-shredding beast. This kit comes complete with a 2.3L TVS® Supercharger in a black finish, a large aluminum intercooler, a low temp radiator, an oversized coolant degas bottle, a cold air intake system, a twin 60mm throttle body with matching spacer, a 75mm supercharger pulley and unique ROUSH designed 47-pound fuel injectors.
New High-flow Technology. The ROUSH R2300 Phase 2 Supercharger features Eaton's new cutting edge Twin Vortices Series technology (TVS) rotating assembly that delivers more power and better fuel economy in a smaller package for uncompromising performance. This a roots-type, positive displacement supercharger features twin 4-lobe rotors that are twisted 160-degrees to greatly enhance thermal efficiency, enabling higher volume capacity, and higher operational speeds.
Roush Performance Quality - Guaranteed. Roush is known for a rich tradition of excellent racing performance engineering at the highest level of OEM quality and design. This Supercharger kit features a limited 3-year/36,000 mile warranty.
CARB Certified. This kit is CARB certified with EO numbers of D-418-27 for model years 2015-2016 and D-418-39 for 2017.
ROUSH PCM Calibration. As part of this Phase 2 Package, you will receive a ROUSH® PCM Flash Voucher Card, which is used to obtain the specific calibration needed for your F-150 and requires ROUSH Diagnostic Tool (RDT) software and a J2534 Pass-Through device to upgrade your PCM (software and pass-through device not included). If you don't have access to a pass-through device, you have the option of sending your PCM back to Roush, where they will flash your PCM for an additional $100 fee.
Application. This Roush R2300 Phase 2 Supercharger Kit is specifically designed for use on the 2015-2017 F-150s powered by the 5.0L 4V Coyote engine.
Fitment:
DetailsRoush 421984
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- TVS2300 Supercharger
- 75mm Supercharger Pulley
- Twin 60mm Throttle Body
- ROUSH Designed Fuel Rail with 47 lb. Injectors
- ROUSH Cold Air Intake System
- High Capacity, Low Restriction Air Filter
- Large Aluminum Intercooler
- Low Temperature Radiator
- High Capacity Degas Bottle
- Heavy-Duty First Sheave FEAD System
- ROUSH Flash Voucher Card
- All Necessary Hardware
- Installation Instructions
4.7
Reviews of Roush Intake Products (500+)
Reviews of Roush Intake products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 5.0L V8 - 15, 16, 17
