Roush R2300 590 HP Supercharger Kit; Phase 2 (11-14 6.2L F-150, Excluding Raptor)Find parts that fit my vehicle
Item T527301-AA
$0.00
Our Price
$7,749.99
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Phase 2 Kit - 590 Horsepower and 590 ft./lb. of Torque
- ROUSH R2300 2.3L TVS® Supercharger
- Cold Air Induction w/ 100mm MAF Tube
- Twin 60mm Throttle Body & Spacer
- Unique High Flow Fuel Rail w/ 47 lb. Injectors
- Air-to-Water Intercooler System
- ROUSH Flash Voucher Card
- 3 Year / 36,000 Mile Limited Parts Warranty
- For Automatic Transmissions Only
- CARB EO Number: D-418-23
- Fits 2011-2014 6.2L F-150s, Excluding Raptors
Description

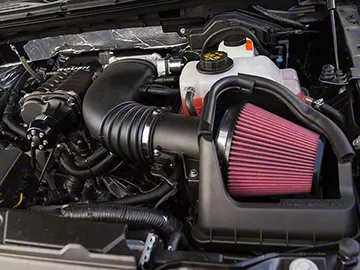

Unleash More Power. Add this ROUSH R2300 TVS® Phase 2 Supercharger Kit to your 6.2L F-150 and feel the instant throttle response and increased power throughout the entire power band. With the addition of this supercharger, your 6.2L 2V would produce 590 Horsepower and 590 ft./lb. of Torque, which is a gain of 179 HP and 156 ft./lb. over stock. You'll be wondering why you didn't install this Phase 2 Calibrated Supercharger Kit sooner.
R2300 2.3L TVS® Roots Supercharger. This Phase 2 Kit will transform your 6.2L F-150 into a tire-shredding beast. Kit comes with a 2.3L TVS® Supercharger with a black finish, upper and lower aluminum intake manifolds, an air-to-water intercooler, low temp radiator, coolant degas bottle, ROUSH® cold air induction system with 100mm MAF tube, twin 60mm throttle body with matching spacer, 80mm supercharger pulley, unique high flow fuel rail with 47 lb. injectors and all necessary fasteners, wiring, brackets, hoses and clamps for installation.
High-Flow Technology. The ROUSH R2300 2.3L TVS® Supercharger features Eaton's cutting edge Twin Vortices Series (TVS) rotating assembly that is designed to offer increased power and improved fuel economy in a smaller package for uncompromised performance. This roots-type, positive displacement supercharger features twin four-lobe rotors that are twisted 160-degrees. This combination will greatly enhance thermal efficiency, enabling higher volume capacity and higher operational speeds.
ROUSH PCM Calibration. As part of this Phase 2 Package, you will receive a ROUSH® PCM Flash Voucher Card, which is used to obtain the specific calibration needed for your F-150 and requires ROUSH Diagnostic Tool (RDT) software and a J2534 Pass-Through device to upgrade your PCM (software and pass-through device not included). If you don't have access to a pass-through device, you have the option of sending your PCM back to Roush, where they will flash your PCM for an additional $100 fee.
CARB Certified. Best of all, this Roush R2300 Phase 2 Supercharger Kit is 50-state smog legal under Carb EO# D-418-23.
Roush Performance Quality - Guaranteed. This Supercharger Phase 2 Kit is protected by ROUSH's Limited 3 Year / 36,000 Mile Parts Warranty from date of purchase on ROUSH components only and does not include labor. This kit also features the ROUSH® logo, showing that serious performance lies within when you raise your hood.
Application. This Roush R2300 2.3L TVS® 590 HP Phase 2 Supercharger Kit is specifically designed for use on the 2011-2014 F-150s equipped with the 6.2L 2V V8 engine.
R2300 2.3L TVS® Roots Supercharger. This Phase 2 Kit will transform your 6.2L F-150 into a tire-shredding beast. Kit comes with a 2.3L TVS® Supercharger with a black finish, upper and lower aluminum intake manifolds, an air-to-water intercooler, low temp radiator, coolant degas bottle, ROUSH® cold air induction system with 100mm MAF tube, twin 60mm throttle body with matching spacer, 80mm supercharger pulley, unique high flow fuel rail with 47 lb. injectors and all necessary fasteners, wiring, brackets, hoses and clamps for installation.
High-Flow Technology. The ROUSH R2300 2.3L TVS® Supercharger features Eaton's cutting edge Twin Vortices Series (TVS) rotating assembly that is designed to offer increased power and improved fuel economy in a smaller package for uncompromised performance. This roots-type, positive displacement supercharger features twin four-lobe rotors that are twisted 160-degrees. This combination will greatly enhance thermal efficiency, enabling higher volume capacity and higher operational speeds.
ROUSH PCM Calibration. As part of this Phase 2 Package, you will receive a ROUSH® PCM Flash Voucher Card, which is used to obtain the specific calibration needed for your F-150 and requires ROUSH Diagnostic Tool (RDT) software and a J2534 Pass-Through device to upgrade your PCM (software and pass-through device not included). If you don't have access to a pass-through device, you have the option of sending your PCM back to Roush, where they will flash your PCM for an additional $100 fee.
CARB Certified. Best of all, this Roush R2300 Phase 2 Supercharger Kit is 50-state smog legal under Carb EO# D-418-23.
Roush Performance Quality - Guaranteed. This Supercharger Phase 2 Kit is protected by ROUSH's Limited 3 Year / 36,000 Mile Parts Warranty from date of purchase on ROUSH components only and does not include labor. This kit also features the ROUSH® logo, showing that serious performance lies within when you raise your hood.
Application. This Roush R2300 2.3L TVS® 590 HP Phase 2 Supercharger Kit is specifically designed for use on the 2011-2014 F-150s equipped with the 6.2L 2V V8 engine.
Please Note. Roush Supercharger Systems are built to order for our customers and because of this, there can be a 2 to 4 week lead time on orders once your information is received.
Shop All Truck Parts And Accessories
Shop All Truck Engine Parts And Accessories
Shop All Truck Superchargers Kits And Accessories
Roush 421432
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- R2300 TVS Supercharger
- Upper and Lower Intake Manifolds
- Air-to-Water Intercooler System
- Dual-Core Low Temp Radiator
- Degas Bottle
- Twin 60mm Throttle Body w/ Spacer
- High Flow Cold Air Induction System
- 100mm MAF Tube/Housing
- Fuel Charging Assembly
- High Flow Fuel Rail w/ 47lb Injectors
- Supercharger Pulley
- ROUSH Flash Voucher Card
- All required fasteners, wiring, brackets, hoses & clamps
4.7
Reviews of Roush Intake Products (500+)
Reviews of Roush Intake products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 6.2L V8 - 11, 12, 13, 14
Does Not Fit Raptors.
