How to Install Rough Country 2.5 in. Leveling Strut Extensions on your Ford F-150

2004-14 Ford F150 2.5” Suspension Kit

Thank you for choosing Rough Country for all your suspension needs.

Rough Country recommends a certified technician install this system. In addition to these instructions, professional knowledge of disassemble/reassembly procedures as well as post installation checks must be known. Attempts to install this system without this knowledge and expertise may jeopardize the integrity and/or operating safety of the
vehicle.

Please read instructions before beginning installation. Check the kit hardware against the parts list on the last page. Be sure you have all needed parts and know where they go. Also please review tools needed list and make sure you have needed tools.

PRODUCT USE INFORMATION

As a general rule, the taller a vehicle is, the easier it will roll. Seat belts and shoulder harnesses should be worn at all times. Avoid situations where a side rollover may occur.

Generally, braking performance and capability are decreased when larger/heavier tires and wheels are used. Take this into consideration while driving. Do not add, alter, or fabricate any factory or after-market parts to increase vehicle height over the intended height of the Rough Country product purchased. Mixing component brands is not recommended.

Rough Country makes no claims regarding lifting devices and excludes any and all implied claims. We will not be responsible for any product that is altered. If question exist we will be happy to answer any questions concerning the design, function, and correct use of our products.

This suspension system was developed using a 35X12.50X18, tire with factory wheels. Note if wider tires are used, offset wheels will be required and trimming will be required.

Most 2011 and newer vehicles will require the EPAS (Electronic Power Assist Steering) plugs to be disconnected prior to beginning installation of this kit. See installation instructions. Failure to disconnect these plugs may result in damage to the EPAS module resulting in an error message being displayed, which will
require replacement of the EPAS module.

NOTICE TO DEALER AND VEHICLE OWNER

Any vehicle equipped with any Rough Country product should have a “Warning to Driver” decal installed on the inside of the windshield or on the vehicle’s dash. The decal should act as a constant reminder for whoever is operating the vehicle of its unique handling characteristics.

INSTALLING DEALER - it is your responsibility to install the warning decal and forward these installation instructions on to the vehicle owner for review. These instructions should be kept in the vehicle for its service life.

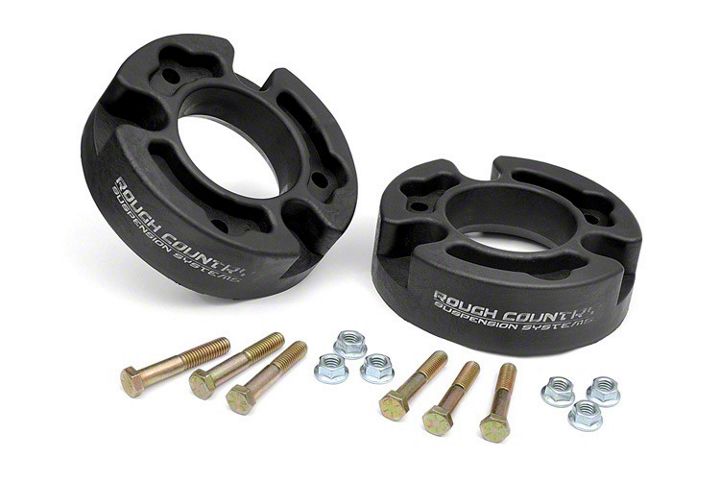

Kit Contents:

2-Front Strut Extensions

1-Kit Bag that includes

6-3/8x2” Bolts

6-3/8” Flange Lock Nuts

INSTALLATION INSTRUCTIONS

1. Jack up the front of the vehicle and support the vehicle with jack stands, so that the front wheels are off the ground.

2. Remove the front tires/wheels., using a 21mm deep well socket.

3. On 2011-up models and if equipped, remove the EPAS (Electronic Power Assist Steering) Plugs as shown located on the steering assembly by the front differential. See Photo 1 & 2. This must be done BEFORE installation is started.

4. Place jack stand under the knuckle for support. Remove nut, using a 21mm wrench. Using a hammer hit the knuckle as shown to allow the ball joint to separate from the upper control arm. See Photo 3. Do not allow the knuckle to pull out far enough that it pulls the shaft out of the differential.

5. Using a 21mm wrench remove the nut from the steering linkage. Using a hammer hit on the side of the knuckle as shown, where the steering linkage is connected and remove from knuckle. Push linkage forward to make room for installation. Retain factory hardware. See Photo 4.

6. Remove the sway bar nut and bushings using a 15mm wrench. Retain factory hardware. See Photo 5.

7. Using a 15mm wrench, remove the nuts on the upper strut tower that holds the assembly in place. See Photo 6. One nut can be left on the upper bolts to hold the strut in place.

8. On 04-13 models using a 29mm socket, and 1 1/16”, wrench, remove the strut bolt from the lower control arm and remove the strut assembly from the vehicle. Retain the factory lower bolt for reassembly. Note the direction of the bolt for reassembly. See Photo 7.

9. On 2014 models use a 18mm socket to remove the lower strut nuts from the bottom of the control arm. See Photo 8. Next use a air chisel with a rounded blunt nose tool and dislodge the studs from the strut bar pin. Retain factory hardware. See Photo 9.

10. Locate the supplied 3/8”x2” bolts. Place into spacer as shown in Photo 10. It may be necessary to lightly tap the bolts to get the hex bolt head into the hex hole.

11. Install the new strut spacer on the strut with stock hardware using a 9/16” socket. Torque to 30 ft/lbs. See Photo 11. Install the strut assembly into the strut tower and secure with the supplied 3/8” flanged lock nuts using a 9/16” wrench. Torque to 30 ft/lbs. See Photo 12.

12. On 04-13 models install the lower strut bolt in the original position that it was removed. Using a 29mm socket, and 1 1/16” wrench, torque to factory specs.

13. On 2014 models install the factory studs back into the barpin on the lower mount of the strut. It may be necessary to hit the top of the strut with a hammer to seat the splines before tightening the factory nuts with a 18mm.

14. Using a floor jack, raise the lower control arm and connect the upper ball joint on the upper control arm to the spindle. Using a 21mm wrench, torque to manufacturer specs. If ball joint turns while tightening, use a 3/8” wrench to hold the ball joint.

15. Reinstall the steering linkage nut using a 21mm wrench.

16. Repeat steps 3-14 on opposite side of vehicle.

17. Using a 15mm wrench, reinstall sway bar bushings and nut using factory hardware. Torque to factory specs.

18. Install the wheels / tires, using a 21mm deep well socket.

19. If removed, reconnect the EPAS plugs.

20. Jack up the vehicle and remove the jack stands. Lower the vehicle to the floor and torque all bolts to factory specifications.

21. Vehicle will have to have a front-end alignment.

22. If the rear block kit & shocks was ordered with the kit please proceed to the next section.

REAR INSTALLATION INSTRUCTIONS

1. Chock the front wheels.

2. Jack up the rear of the vehicle and place jack stands underneath the frame rail. Lower the

3. Remove the tires and wheels.

4. Remove rear shocks using a 15mm, and 18mm wrench. Save the stock hardware it will be used later.

5. Place the floor jack underneath the axle and remove the stock u-bolts. Lower the axle down to allow the blocks to be installed in between the stock block and the spring perch. Install the new u-bolts and secure with fasteners provided.

6. Assemble the rear shocks 650377, (RCX PART # 660564) and install in the stock position with stock hardware, using a 15mm and 18mm wrench. Note: RCX 2.2 series shock absorbers are designed to run inverted with the body of the shock absorber on the frame mount and the piston rod on the axle end.

POST INSTALLATION INSTRUCTIONS

1. Check all fasteners for proper torque. Check to ensure there is adequate clearance between all rotating, mobile, fixed and heated members. Check steering for interference and proper working order. Test brake system.

2. Perform steering sweep. The distance between the tire sidewall and the brake hose must be checked closely. Cycle the steering from full turn to full turn to check for clearance. Failure to perform inspections may result in component failure.

3. Re torque all fasteners after 500 miles. Visually inspect components and re torque fasteners during routine vehicle service.

4. Readjust headlights to proper settings.

MAINTENANCE INFORMATION

It is the ultimate buyers responsibility to have all bolts/nuts checked for tightness after the first 500 miles and then every 1000 miles. Wheel alignment steering system, suspension and driveline systems must be inspected by a qualified professional mechanic at least every 3000 miles
