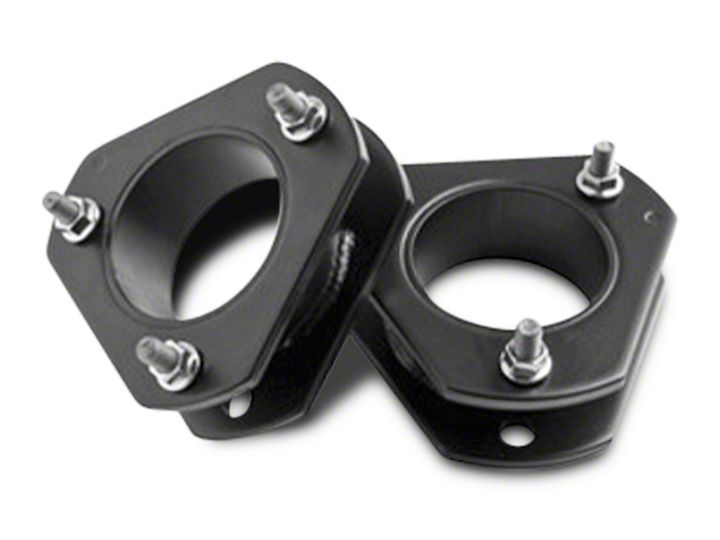

ReadyLIFT 3.0 in. Front Strut Leveling Kit (04-15 2WD; 04-08 4WD)
Shop Parts in this Guide
Place vehicle on level ground and measure.
Lift vehicle securely and remove wheels/tires.
Remove lower sway bar endlink hardware.
Loosen upper ball joint nut, but do not remove.
Loosen upper strut mount nuts.
Carefully strike spindle as shown to separate ball joint.
Pull down and remove upper ball joint nut.
Loosen lower strut bolt/nut and remove.
Remove top strut mount nuts and remove assembly.
Attach strut extension spacer with OE hardware and tighten.
The next (4) steps are for the T6 Billet spacers install only..
Apply thread locker to the studs and tighten in spacer
Place spacer rotated 180 degrees onto strut assembly
Using OE hardware, tighten spacer and reinstall in vehicle.
Use provided hardware to re-attach top of strut to vehicle.
Reconnect lower strut mount and torque to spec.
Use jack and pry bar to reattach upper ball joint to spindle.
Tighten upper ball joint and torque to spec.
Reconnect lower sway bar endlinks and torque to spec.
Install wheels/tires torque to spec., measure and align
