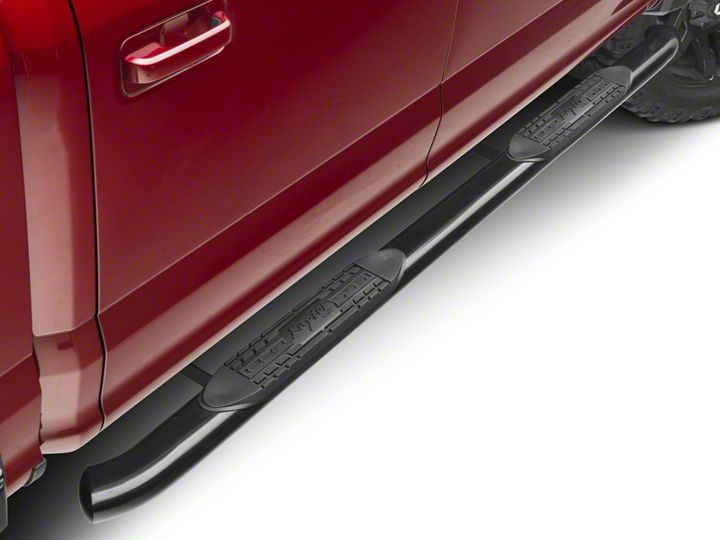

Raptor Series 4 in. OE Style Curved Oval Side Step Bars - Black (15-16 SuperCab, SuperCrew)

Installation Time

2 hours

Tools Required
  • Ratchet
  • Torque Wrench
  • 13mm Socket
  • 6mm Hex Bit
American Muscle
Shop Parts in this Guide


Torque Specifications


For Rocker Panel Mount Installations

M8 through M12 bolts and nuts are set to 15-20 ft. lbs.


Note: When installing the brackets and bars, all hardware must be left loose until all the items are attached.






STEP 6. Place the Step Bar and the Rubber Gaskets onto the Brackets. Each Step Bar is marked Driver and Passenger.


STEP 7. Install the Step Bar onto each Bracket using two (2) M10 X 30MM Button Head Bolts, two (2) M10 Lock Washers and two (2) M10 Flat Washers.


Tighten until the split lock washer is flat against bracket and snug. DO NOT over tighten and strip the threaded insert in the tube.


Repeat these steps for passenger side installation. When all hardware is in place, everything must be tightened. See Page 1 for Torque Specifications.
