Find Leveling Kits for your F-150

Rancho 2-Inch Front Level-IT System (14-20 4WD F-150, Excluding Raptor)Find parts that fit my vehicle

Item T546280
Product Image

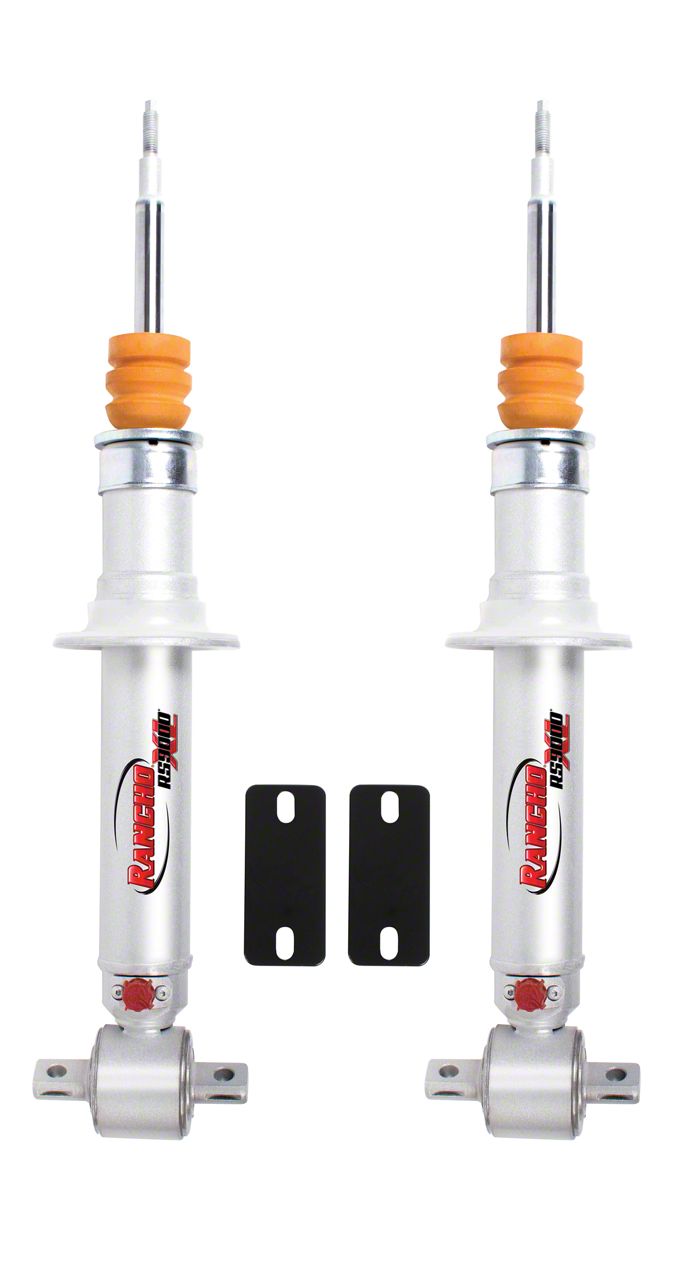

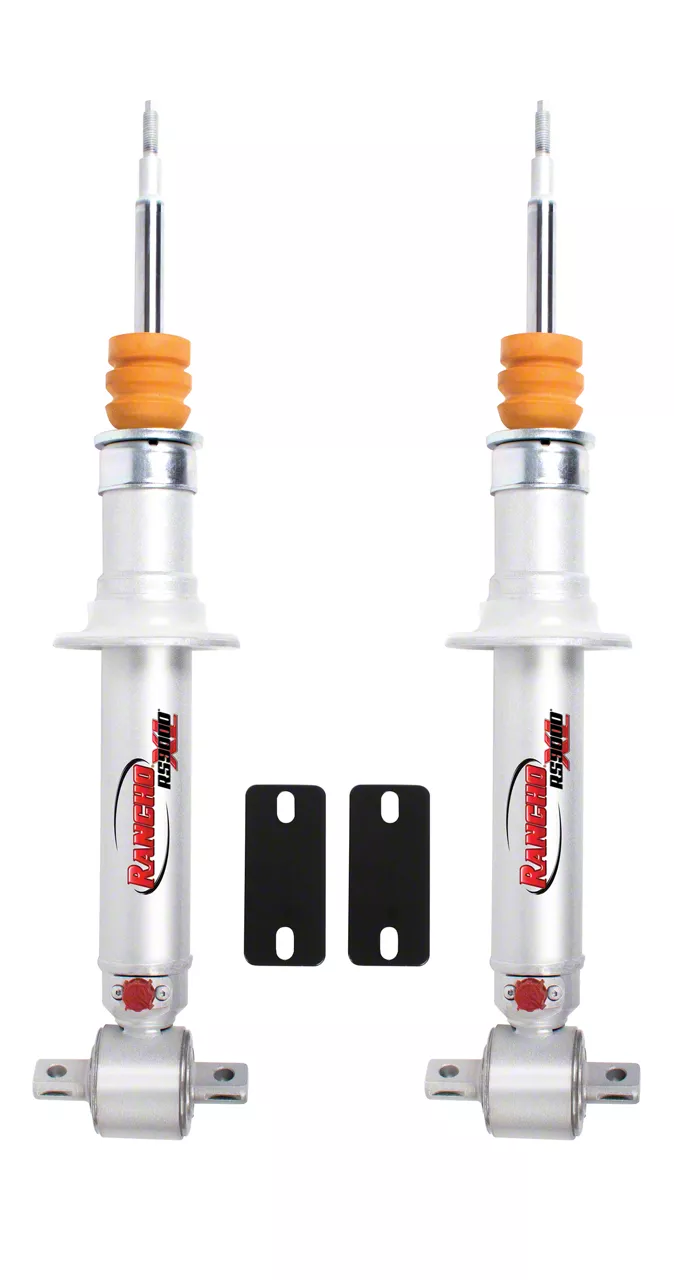

Rancho 2-Inch Front Level-IT System (14-20 4WD F-150, Excluding Raptor)
Video Thumbnail
Review & Install - Rancho 2-Inch Front Level-IT System Video   See All Product Videos (1)
Verify parts fit and get product recommendations.
F-150 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
8 Reviews
Our Price

$357.67 kit

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Add Local Installation

    $999.00
    Wards Auto Repair LLC
    11 miles away · 25 Reviews ·
    How it works
    Loading Indicator

    Frequently Bought Together

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Levels Ride Height and Increases Ground Clearance
      • Provides 2-inch of Front Lift
      • Accommodates Tires up to 33-inch Tall
      • Nine Position Adjustable Damping
      • Tri-Tube Gas Pressurized Struts
      • Direct Bolt-On Replacement
      • Includes (2) RS9000XL Struts and Sway Bar Spacers
      • Must Re-use OE Springs and Top Mounting Components
      • Limited Lifetime Manufactures Warranty
      • Fits 2014-2020 4WD Ford F-150 Models, Excluding Raptor

      Description

      Level It System. Level out the front of your 2014-2020 F150 with the Rancho “Level It” system. This kit provides an inexpensive, fast and easy kit to level your F-150's ride height. This kit features (2) RS9000XL 9-position adjustable series Leveling Struts, (2) sway bar spacers and needed mounting hardware to provide superior on road comfort and off-road performance. The sway bar spacers correct end link angles for roll and sway control of your F-150. The kit was designed with 33-inch tires in mind, and lifts the front by 2-inches. This kit will allow the reuse of OE Wheels and Tires.

      Nine Position Adjustable Damping. The adjustable option of the included Rancho RS9000XL Front Struts allows you to adjust damping with just a twist of a knob giving you 9 Struts in one. The adjustment knob provides a clear understanding of each tuning level with settings 1-3 = on/off-road flexibility, 4-6 = similar to RS5000 Struts, and 7-9 = performance/towing flexibility. This damping adjustability will elevate the overall handling and performance of your vehicle both on and off-road, giving you the confidence you need to put your F-150 through its paces.

      Quality Construction. Manufactured using a gas pressurized tri-tube design, the included Rancho Struts feature a 18mm nitro-carburized piston rod with a 1-1/4-inch diameter sintered iron piston to provide heightened control. Rancho Struts feature a larger, 2-3/4-inch diameter Strut body that allows for increased fluid capacity to operate cooler with increased vehicle control. The combination of all-weather fluid and low-friction, self-lubricating seals help prolong performance and allow for quicker rebound and smoother compression during the Strut cycle. The Strut is completed in durable, white powder coated finish for impressive good looks and long lasting durability.

      Direct Bolt-on Replacement. Rancho designed their Front Level-IT System to be a direct bolt on replacement for your F-150’s factory Struts. However, you must re-use the OE Springs and top mounting components for installation. Trimming or modification may be required to provide proper clearance for 33-inch tires. Please note that an alignment, by a qualified shop, is highly recommended after installation.

      Application. This Rancho 2-Inch Front Level-IT System is designed to fit 2014-2020 4WD Ford F-150 models, excluding Raptor.

      Fitment:

      Details

      Rancho RS66504R9

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (2) RS9000™XL 9-position Adjustable Struts
      • (2) Sway Bar Spacers
      • Mounting Hardware
      • Re-uses OE Springs and Top Mounting Components
      4.9

      Customer Reviews (8)

      Brand Image

      Reviews of Rancho Suspension products have an average rating of 4.7 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 2.7L V6 EcoBoost - 15, 16, 17, 18, 19, 20
      • 3.0L V6 Power-Stroke - 18, 19, 20
      • 3.3L V6 - 18, 19, 20
      • 3.5L V6 - 15, 16, 17
      • 3.5L V6 EcoBoost - 14, 15, 16, 17, 18, 19, 20
      • 3.5L V6 EcoBoost Limited - 19, 20
      • 3.5L V6 EcoBoost Raptor - 17, 18, 19, 20
      • 3.7L V6 - 14
      • 5.0L V8 - 14, 15, 16, 17, 18, 19, 20
      • 6.2L V8 - 14
      • 6.2L V8 Raptor - 14
