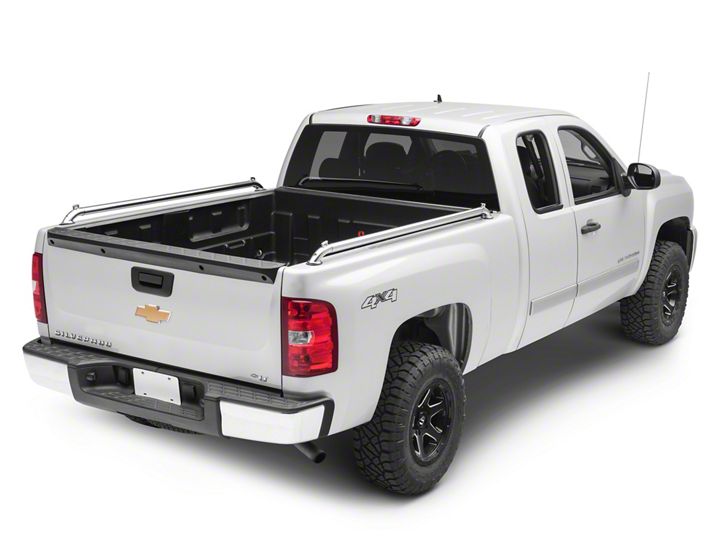

How to Install Putco Pop Up Locker Side Bed Rails on your Silverado

1. Pre‐installation preparation.

Verify the kit contents (check against parts listing). Remove the protective wrapping from the castings, tubes, and bolt kit.

2. Assemble the Locker casting with all bolts and gaskets.

Install the Allen head bolt through the hole in the Pop‐Up Locker casting, plastic oval gasket, and rubber expander. Screw the threaded back plate onto the bolt and snugly tighten the plate against the rubber expander.

3. Install Pop‐Up Locker casting and tubes.

Insert the back plate and rubber expander into the stake pocket hole until the black gasket sits on top of the truck bed. Place an oring on the end of the casting and slide a tube over the casting. Slide a standard casting (with an o‐ring installed) in the opposite end of the tube. Install a casting in the front stake pocket hole. Note: Pre‐2007 Toyota Tundra trucks require spacers to be placed under the plastic cap at the rear stake pocket holes (two per side).

4. Complete rail casting and tube installation.

Tighten each Allen headed bolt (front and rear castings). Continue tightening the bolts until the rail is securely attached to the truck bed.
