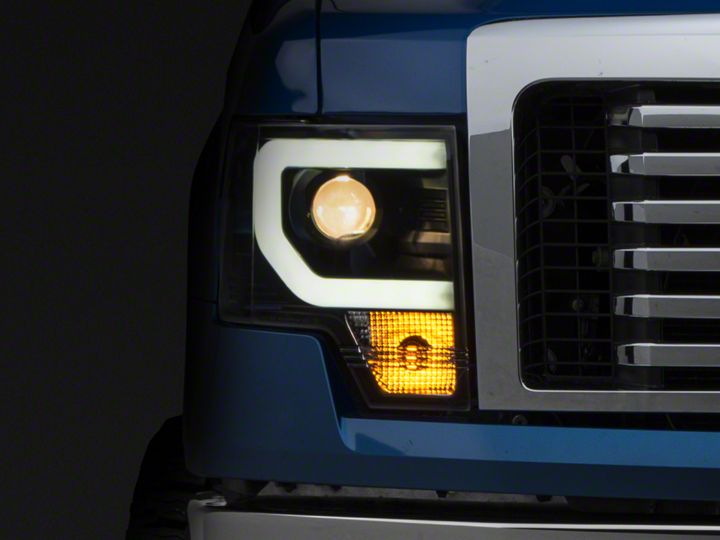

How to Install Axial Black Projector Headlights w/ DRL LightBar (09-14 F-150 w/o Factory HID) on your Ford F-150
Installation Time
30 minutes
Tools Required
- Flat Head Screwdriver
- 1/2 inch Ratchet with 10mm Socket
Shop Parts in this Guide
Installation Instructions:
1. Unbolt the Factory Headlight assembly by removing the 3 10mm screws, and the plastic screw holding the rubber flap in place.
2. Pull out the Factory Headlight assembly.
3. Disconnect the factory wiring from the Headlight assembly.
4. Remove the Factory Headlight assembly.
5. Remove new assembly pair from the box.
6. Disconnect factory turn signal.
7. Plug in light wiring.
8. Reinstall 3 10mm screws.
9. Test all connections.
10. Repeat the same procedure for the passenger side for a finished product.
Installation Instructions Written by AmericanTrucks Customer Andrew Siegwalt 01/07/2019
