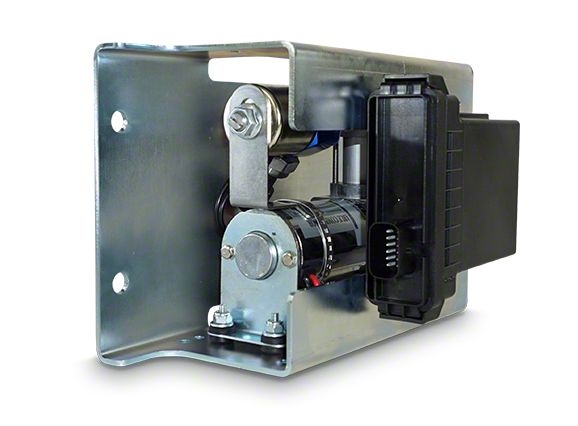

Pacbrake Quickie Mount Single Channel Wireless Control with SD Compressor (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

Description. HP10472-QM Wireless Controls features

Military grade solenoids Designed to withstand extreme environments.

Waterproof and debris resistant Demand a Pacbrake IP67 rated controller.

Don't experience the irreparable debris clogs of other leading products! Our compressor has accessible components that allow easy serviceability and replacement of parts.

Smarter App An easy to use app that reads real time pressure feedback within each air spring and provides more of the data you need. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.

Faster Fills Up to 10% faster than the leading competition.

Ultra Easy Install Pre-installed push-to-connect air fittings and pre-assembled wiring connectors reduce installation time.

Pacbrake Wireless Controls are a universal fit. They fit the frame of any vehicle, work with any air spring on the market. They can also be easily installed with common mechanic tools - no lines or wires to the cab and no drilling required!

The kit comes with everything required for install:

Air compressor, controller, solenoid block, pressure sensors and harnesses

Free Phone app (For use with Android 4.3+ or Apple iOS 10.3+ mobile device)

Air lines, pressure connectors and mounting hardware

HP10472-QM Wireless Controls come with 2 year warranty

Refer warranty terms and conditions for additional details.

Product Specifications:

MAX WORKING PRESSURE / DUTY CYCLE

827.4 kPa [120 psi], 9% @ 689.5 kPa [100 psi]

MAX CONTINUOUS RUN TIME

5 Minutes ON / 55 Minutes OFF

RATED FLOW

29 L/min [1.02CFM] @ 0kPa [0 psi]

INDEPENDENT / SIMULTANEOUS FILL

Simultaneous

INGRESS PROTECTION

IP55 Compressor, IP67 Electric Connectors

WEIGHT

1.09 kg [2.41 lbs]

AMBIENT OPERATING TEMPERATURE RANGE

-40ºC to +70ºC [-40ºF to +158ºF]

NOMINAL SUPPLY VOLTAGE 12 VDC MAX CURRENT DRAW

11 Amps
