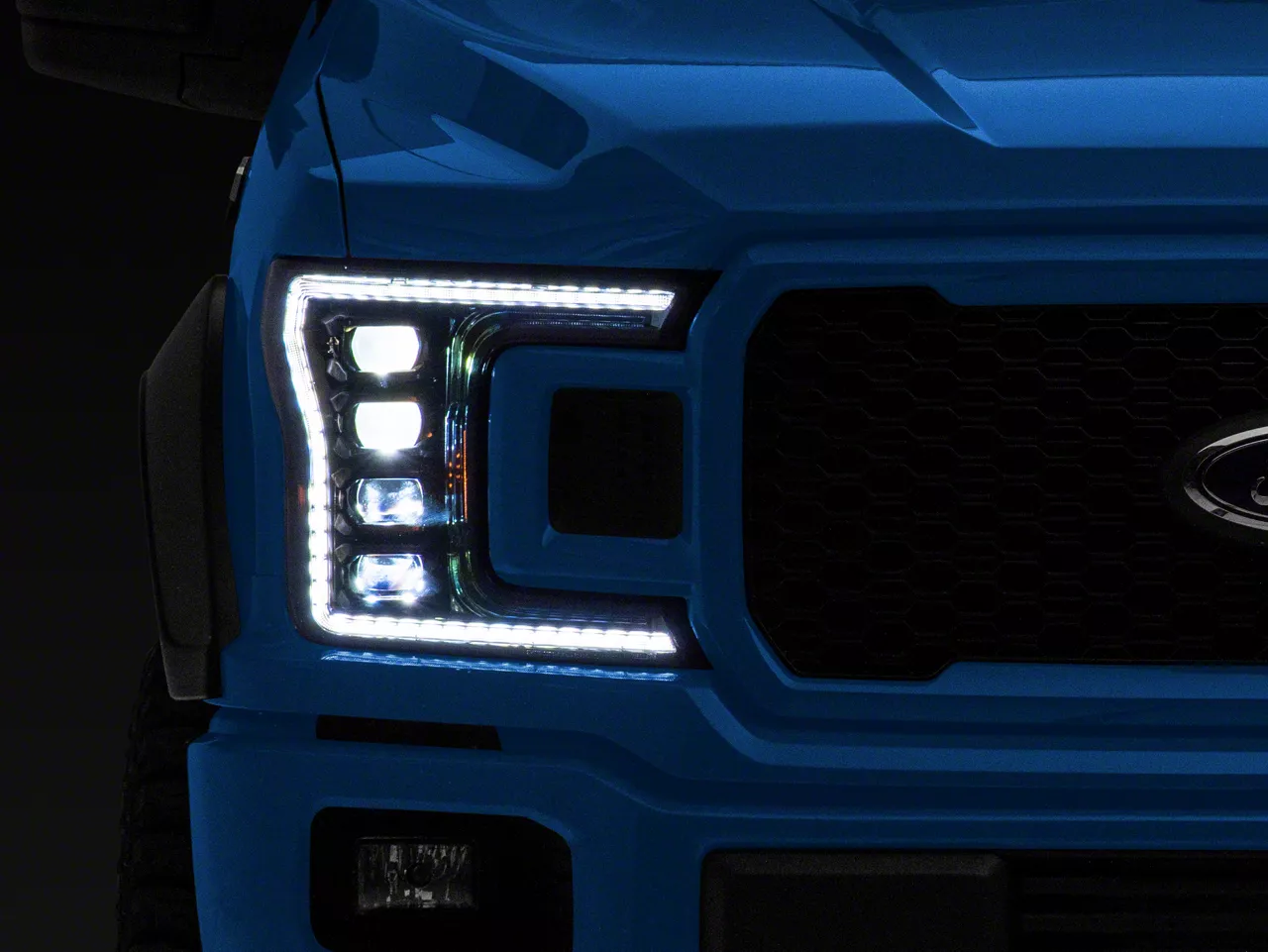

Morimoto XB LED Headlights; Black Housing; Clear Lens (18-20 F-150, Excluding Raptor)Find parts that fit my vehicle
Item T546744
F-150 Sales Tech
Verify parts fit & get product recommendations
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
347 Reviews
4 Answers
Our Price
$1,675.00 pair
Ship to: Enter Zip
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Save with Open Box
From $502.50
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Get Up To $700 Back!
Frequently Bought Together
Product Videos
(1)Justin: If you're looking for one of the nicest headlight upgrades available for your 2018 through 2020 F-150 at home, then you might wanna consider the Morimoto XB Gen 2 projectors that we're talking about here today. Now, these DOT-approved lights will pack a whopping 2,600 lumens total, thanks to the included LED projectors, along with the white daytime running lights, all for that mid $1,600 price point. Install's gonna get a solid two out of three wrenches here on the difficulty meter, guys, and take about an hour or two to complete from start to finish. But if you hang with me for a bit, we'll walk you through that job later in the video. So, if you didn't already know the Morimoto XBs are gonna be the cream of the crop when looking at aftermarket headlights, and sure the price is certainly going to reflect that.Now, these are not going to be entry-level options, and I think that's pretty evident right upfront. But let's talk about what you are getting here for the money guys, and on the surface again, I think you're getting one of the highest quality aftermarket options currently available here at americantrucks.com. This does include the PPS plastic housing with built-in aluminum heat sinks, all topped off with an impact-resistant polycarbonate lens, which does, by the way, also have a UV coating baked in to help prevent any fading or yellowing over the years. Now, all together, the housing and the lens everything sealed up well enough to achieve a waterproof of an IP67, which is very impressive for a set of headlights by themselves. And it's pretty much the standard for light bars, cube lights, things like that. Now, this particular set does feature the combination of the black housing with that clear lens, which I think is certainly one of the more popular options here on the site.But if you did wanna check out some other options, Mori offers them with a smoked lens and also a clear option as well. Again, feel free to check those out here on the site if you haven't already. But inside the housing and lenses is really where the magic happens with the Morimoto XB. So let's start by breaking down your quad Kuria optic projectors here, which are going to allow for equal parts illumination and appearance. Appearance, pretty straightforward, right? They just look awesome. A heck of a lot cooler than the factory halogen headlights. Now, as far as your top two projectors go, those are gonna function as your low beams,while the bottom two of the four will serve as your high beams. Now, performance gonna be night and day difference compared to those factory halogen headlights, thanks to the LED technology again, combined 2,600 total lumens at that 5,500K color temperature. So that's a bright white light, maybe a small touch of blue.Now Morimoto even goes as far as saying that these are going to outperform the factory F-150 LED headlights for this year range, which is very impressive. But the standard lighting really is only a fraction of the total package here at the XBs. You're also getting those white LED daytime running lights that are done in a very factory manner, basically going around the outside of the headlights themselves. Now they're not diffused like the previous generation trucks, but instead, they do look very similar to that of the higher-end LED OE Ford headlights. And they do look very sharp here in the Morimotos as well.Now, those daytime running lights also feature a built-in turn signal to the top portion, which can either function as a solid blink or a sequential pattern, which absolutely looks killer. And you can change this on your preference. Can't forget also that that sequential pattern plays into the startup sequence that the Morimoto XBs provide anytime you lock or unlock your truck, it's a small feature, but it's one that I just think is really cool. Finally, guys, the XBs are backed by a solid five-year warranty in case of any issues. Now, if you do have a halogen-equipped truck, these are gonna be completely plug-and-play, as we're about to show you with our detailed walkthrough and tool breakdown right now. Check it out.Man: Tools for this install, a pop clip removal tool, a T25 Torx bit a 7, 8, 10, 13-millimeter socket, as well as an extension and a ratchet or electric ratchet. Hey, guys, today we have our 2018 F-150. I'm gonna show you how to get your stock headlights out so we can place our new ones in, and I'm gonna show you how to do that right now. Now, in order to get our stock headlights out, there are a few pieces that we need to remove, including the bottom fascia, the grille itself, and the radiator cover. We're gonna start with the radiator cover.Taking your clip removal tool, remove the pop clips from the top of the radiator cover. Now, remember to hang on to them as we will be reusing them to place our radiator cover back on. Now, there is one that's easy to miss on the side of the intake inlet. Make sure to get that one as well. With your clips removed, you can now remove your radiator cover. And if your truck is equipped with an active grille, make sure to unplug that harness as well. Now, before we can remove our grille, we do need to remove the bottom fascia underneath the headlight. Grabbing your 7-millimeter socket, remove these two bolts on the inside of the fascia. And repeat that on the other side.With your fascia bolts removed, pull forward on your fascia to release it from the truck. Now, moving back to the top of the grille, grab your 10-millimeter socket and remove the four bolts located on the top. And finally, taking your 13-millimeter socket, remove the one bolt on each side to release your grille. And repeat that on the other side. To remove the grille, just pull forward towards yourself. Now it's time to remove our headlight bolts. We're gonna start with the first one here being an 8-millimeter socket. The next one would be a 10 and the remaining would be a 10 as well.Now there are two more 10-millimeter bolts located on the side as well, remove those. And finally, two more 10-millimeter bolts located at the top of the headlight. Now we can remove our headlight and unplug your headlight harnesses. Now that we have our stock headlight out, we do need to transfer over the bottom mounting bracket, I'll show you how to do that now. Taking your T25 Torx bit, remove the three screws on the bottom side of that mounting bracket.Now take your bracket and place that onto your new headlight. And secure it with your stock hardware. Now we can take our headlight and plug it back in to our harnesses, and place it back into the truck. And secure it with your stock hardware. And remember to place your hardware underneath the headlight as well. And remember your inner one is an 8-millimeter bolt. Now repeat those steps on the other side.With your new headlights in place, you can replace your grille. Plug in your harnesses, and secure it with the stock hardware. And don't forget to replace the 13-millimeter bolt at the bottom of the grille under the headlight. Repeat that on the other side as well. And now you can secure the fascia underneath the headlight. And finally, secure the hardware on your fascia. And now replace your radiator cover. And don't forget the pop clip next to the intake inlet.And that's gonna wrap it up for our review and install of the Morimoto XB LED Headlights with Black Housing and Clear Lens, fitting the '18 to 20 F-150 without projector headlights. Thanks for watching guys. And for more videos just like this, keep it right here at americantrucks.com.
View Full TranscriptNow Playing
2018-2020 F150 Morimoto XB LED Headlights; Black Housing Review & Install
13:22
Subscribe: New F150 videos daily!
Subscribe to our YouTube Channel
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Projector Style Headlights
- Enhanced Brightness Over OEM for Better Visibility
- White LED DRL Accent Lights
- Sequential Turn Signal Indicator
- UV-Coated Clear Polycarbonate Lenses
- Black ABS Plastic Housings
- DOT and SAE Compliant
- Plug-and-Play Installation
- Sold as a Pair, Driver and Passenger Side Included
- 5-Year Warranty
- Fits 2018-2020 Ford F-150 Models
| Brand | Morimoto |
| Headlight Type | Projector |
| Headlight Housing Color | Black |
| Headlight Lens Color | Clear |
| Headlight Style | Aftermarket Style |
Description
Modern XB Styling. These Morimoto XB LED Headlights are the ideal aftermarket headlight upgrade that offers unparalleled performance, and good looks. With an impressive design, these Headlights will not only update the appearance of your F-150's front end, but they will also easily outperform the factory lights, providing you with more intense illumination, for safer nighttime driving.
Superior Illumination. Employing a projector lens design with a quad LED setup, these Morimoto Headlights will light up the road ahead with a bright focused beam for better nighttime visibility. The stylish white LED Daytime Running Light (DRL) accents ensure that you are visible day or night by distracted drivers. While the amber LED sequential turn signal indicators bring an updated look to your F-150.
Quality Construction. Manufactured from OEM grade materials, these Morimoto Headlights are assembled to precise standards for long-lasting quality. These Projector Headlights feature black ABS plastic housings with UV-treated, crystal clear polycarbonate lenses and modern LED lighting. Each housing is weather-sealed to prevent dirt and moisture from harming the state of the art electronics found inside.
DOT/SAE Compliant. These Projector Headlights will not only bring a fresh new look to your F-150, but they also meet or exceed the strict guidelines set forth by the U.S. Department of Transportation (DOT) and the Society of Automotive Engineers (SAE), making them legal for street use.
Plug and Play Installation. Morimoto designed their XB LED Projector Headlights to be a direct plug and play replacement for your F-150's original factory housings. Installation can normally be completed in about an hour. Be sure to have your headlights properly aligned before driving at night.
Application. These Morimoto XB LED Headlights; Black are designed to fit 2018-2020 Ford F-150 models. Driver and passenger side lights are included.
Superior Illumination. Employing a projector lens design with a quad LED setup, these Morimoto Headlights will light up the road ahead with a bright focused beam for better nighttime visibility. The stylish white LED Daytime Running Light (DRL) accents ensure that you are visible day or night by distracted drivers. While the amber LED sequential turn signal indicators bring an updated look to your F-150.
Quality Construction. Manufactured from OEM grade materials, these Morimoto Headlights are assembled to precise standards for long-lasting quality. These Projector Headlights feature black ABS plastic housings with UV-treated, crystal clear polycarbonate lenses and modern LED lighting. Each housing is weather-sealed to prevent dirt and moisture from harming the state of the art electronics found inside.
DOT/SAE Compliant. These Projector Headlights will not only bring a fresh new look to your F-150, but they also meet or exceed the strict guidelines set forth by the U.S. Department of Transportation (DOT) and the Society of Automotive Engineers (SAE), making them legal for street use.
Plug and Play Installation. Morimoto designed their XB LED Projector Headlights to be a direct plug and play replacement for your F-150's original factory housings. Installation can normally be completed in about an hour. Be sure to have your headlights properly aligned before driving at night.
Application. These Morimoto XB LED Headlights; Black are designed to fit 2018-2020 Ford F-150 models. Driver and passenger side lights are included.
Fitment:
DetailsMorimoto LF501.2-ASM
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Right Hand/Passenger Side Headlight
- (1) Left Hand/Driver Side Headlight
4.8
Customer Reviews (347)
Review Summary
Installation Time: Afternoon
Installation Cost: $150.00
Mar 13, 2025
2019 XLT -
Installation Time: Shop Install
Great addition
These LED headlights are awesome. Super bright DRL. The projector headlights do not blind on coming but provides clear visibility for your lane and to the sides.
Visibility 5/5
Fit 5/5
Quality 5/5
Bang For Your Buck 5/5
Oct 5, 2024
2019 XLT - BradPerek
Installation Cost: 175
Installation Time: Shop Install
Fantastic lights
These lights are a fantastic upgrade from the stock halogen lights. They also add the daytime running light function which the OEM lights lack. The one thing to note if there is an extra wire that runs from the lights to the engine bay fuse box to provide power to the DRLs. The stock halogen light harness does not have the required power connectors. The kit also includes adapters for the OEM LED harness. The lights fit perfectly and they are of very high quality.
Visibility 5/5
Fit 5/5
Quality 5/5
Bang For Your Buck 5/5
Oct 2, 2024
2020 XLT - ConnorMc
Installation Time: Afternoon
Morimoto XB Led Headlights
These headlights are everything and more, honorably bright at night giving me confidence in getting where I need to safely, while also looking STUNNING, instructions where pretty straight forward on the wiring aspect, plug and play and a plug and play fuse tap for the DRL, can’t wait to purchase more Morimoto products and support a brand worth investing in
Visibility 5/5
Fit 5/5
Quality 5/5
Bang For Your Buck 5/5
Jul 15, 2024
2020 XLT - Dponce
Installation Time: Afternoon
Awesome addition
Headlights are awesome. Nice and bright. Changes the look in the front.
Visibility 0/5
Fit 0/5
Quality 0/5
Bang For Your Buck 0/5
Jul 11, 2024
2020 XLT - CJWalls
Installation Time: Afternoon
2024 Knight Rider
Beautiful Setup. Truck truly stands out! The light output from both the headlights and grill is phenomenal. If you're thinking about doing it, go for it!!!!
Visibility 5/5
Fit 5/5
Quality 5/5
Bang For Your Buck 3/5
May 3, 2024
2018 Lariat - DALSR
Installation Time: Full Day
Great lights
These lights were a great addition to my truck. The black housing really looks good on a black truck.Some kind of installation directions would help.
Fit 5/5
Quality 5/5
Bang For Your Buck 5/5
Visibility 5/5
Mar 6, 2024
2018 XL - Mytoy
Installation Time: Less than 1 Hour
Morimoto Xb led headlights
Very happy with how bright , they are brighter then the f-150 leds, love them !
Visibility 5/5
Fit 5/5
Quality 5/5
Bang For Your Buck 5/5
Jan 5, 2024
2018 XLT - Nathang912
Installation Cost: 150
Installation Time: Shop Install
Old Man Eyes
My 2018 stock halogen lights have been terrible since driving it off the lot 5 years ago and my old man eyes have had enough of it!!! These Motimoto LEDs are amazing. I went from dreading night driving to being the first one out the door now!! Well worth the $$$.
Visibility 5/5
Fit 5/5
Quality 5/5
Bang For Your Buck 5/5
Dec 1, 2023
2018 XL - KSB
Installation Time: Afternoon
Head lights
Wonderful product, really like the way they look on my truck and shine down the road. No complaints so far.
Visibility 0/5
Fit 0/5
Quality 0/5
Bang For Your Buck 0/5
Oct 8, 2023
2020 Lariat - FrankWilson
Installation Time: Less than 1 Hour
Awesome product
Really wakes the look of my truck up, easy plug and play installation took about and hour but I work on F-150s all the time. so glad to get rid of the OEM halogen lights, I put LEDs all the way around my truck.
Visibility 5/5
Fit 5/5
Quality 5/5
Bang For Your Buck 3/5
Questions & Answers (4)
5 Top Rated Questions
Q: Does this head light come with any bulbs?
A: Yes, bulbs are included.
Q: Is this the 2nd gen model where all 4 projectors are low beam and the bottom 2 double as high beam?
A: Yes, these Morimoto XB LED Headlights are the Gen2 upgrade.
Q: It says that there is a rebate on these morimoto Xb headlights was wondering what the rebate is?
A: Morimoto has a buy back program. You would follow the link to their site to see if they are in need of your application at this time.
Q: Can the turn signal just flash instead of being sequential? I’m flashy but not that flashy
A: You would have to reach out to Morimoto directly for this one.
Will It Fit My F-150
- 2.7L V6 EcoBoost - 18, 19, 20
- 3.0L V6 Power-Stroke - 18, 19, 20
- 3.3L V6 - 18, 19, 20
- 3.5L V6 EcoBoost - 18, 19, 20
- 3.5L V6 EcoBoost Limited - 19, 20
- 3.5L V6 EcoBoost Raptor - 18, 19, 20
- 5.0L V8 - 18, 19, 20
