How to Install Husky Custom Molded Rear Mud Guards on your Silverado

Package Contents

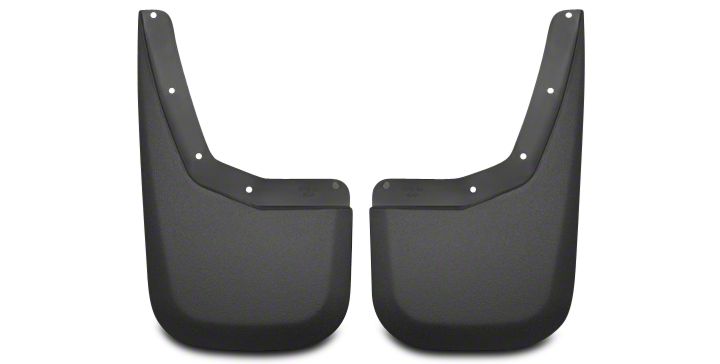

• Driver & passenger side rear mud guard
• #8 SEM Screw (8)
• Paint Protection Film (1 set)
• Instruction sheet

NOTE: It may be necessary to remove the wheels depending on the tools being used for installation.  Determine which mudguard you have by locating the part number molded in the mounting flange  (5779 LH 5779 RH).

1. Clean and degrease the mud guard location area on the fender before installation.

2. Hold mud guard to fender and mark and drill an 1/8” hole at location B.

3. Install mud guard to rear fender with a #10 SEM screw at location B (Figure 1). Check fit and parallel and adjust accordingly before tightening.

4. Mark and drill 1/8” holes at location A, C, and D.

5. Install #10 SEM screws at locations A, C, and D.

Note: If painting mud guards, perform a mud guard test fit to ensure correct fit and application prior to painting.

1. Clean mud guard with a soap and water solution to remove dirt and other contaminates.

2. Sand painting surface with 320 grit sand paper.

3. Apply a coating of flexible primer-adhesion promoter.

4. Apply a flexible paint as directed by the paint manufacturer.

PAINT PROTECTION FILM  INSTALLATION INSTRUCTIONS

NOTE: The Paint Protection Film is a precut template of film used to protect the mud guard mounting surfaces of your  fenders against wear. The templates (left and right side) can be removed from the backing liner by folding the  liner at the center cut of the template, separating the film sides and peeling the film templates from the backing  liner.

1. Position mud guard on fender to indicate placement location of paint protection film.

2. Clean the placement area of fender with a clean cotton cloth and a petroleum distillate based cleaner such as DuPonts Prep-Sol Brand Solvent Cleaner or 3M Brand Adhesive Cleaner and dry.

3. Mix a wetting solution of 1 pint of water with 4 drops of liquid dishwashing detergent.

4. Mark correct position of film by placing mud guard against fender. Make sure film extends beyond edge of mud guard contour a minimum of an 1/8”.

5. Remove protection film from liner and flood adhesive side of film with wetting solution (use a spray bottle or sponge).

6. Thoroughly wet film placement location of fender with wetting solution.

7. Position the adhesive side of film on fender and flood with wetting solution.

8. Check location of film with mud guard and reposition as necessary.

9. Using a sponge, squeegee any air bubbles and wrinkles from film.

10.Allow film to dry before installing mud guard.
