      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Improves Horsepower, Torque and Overall Performance
      • Does Not Include any Pre-loaded Tunes or Calibrations
      • HP Tuners MPVI3 Tuning Device Included
      • Includes 4 Universal Credits
      • M8 Connector, USB-C and Bluetooth 5.0 Connectivity
      • PROLINK+ Compatibility
      • Adjust a Multitude of Parameters with VCM Editor
      • Diagnose, Data Log and Monitor with VCM Scanner
      • Windows PC is Required for Installation and Use
      • Fits 2020 3.5L EcoBoost Ford F-150, Excluding Limited & Raptor Models

      Description

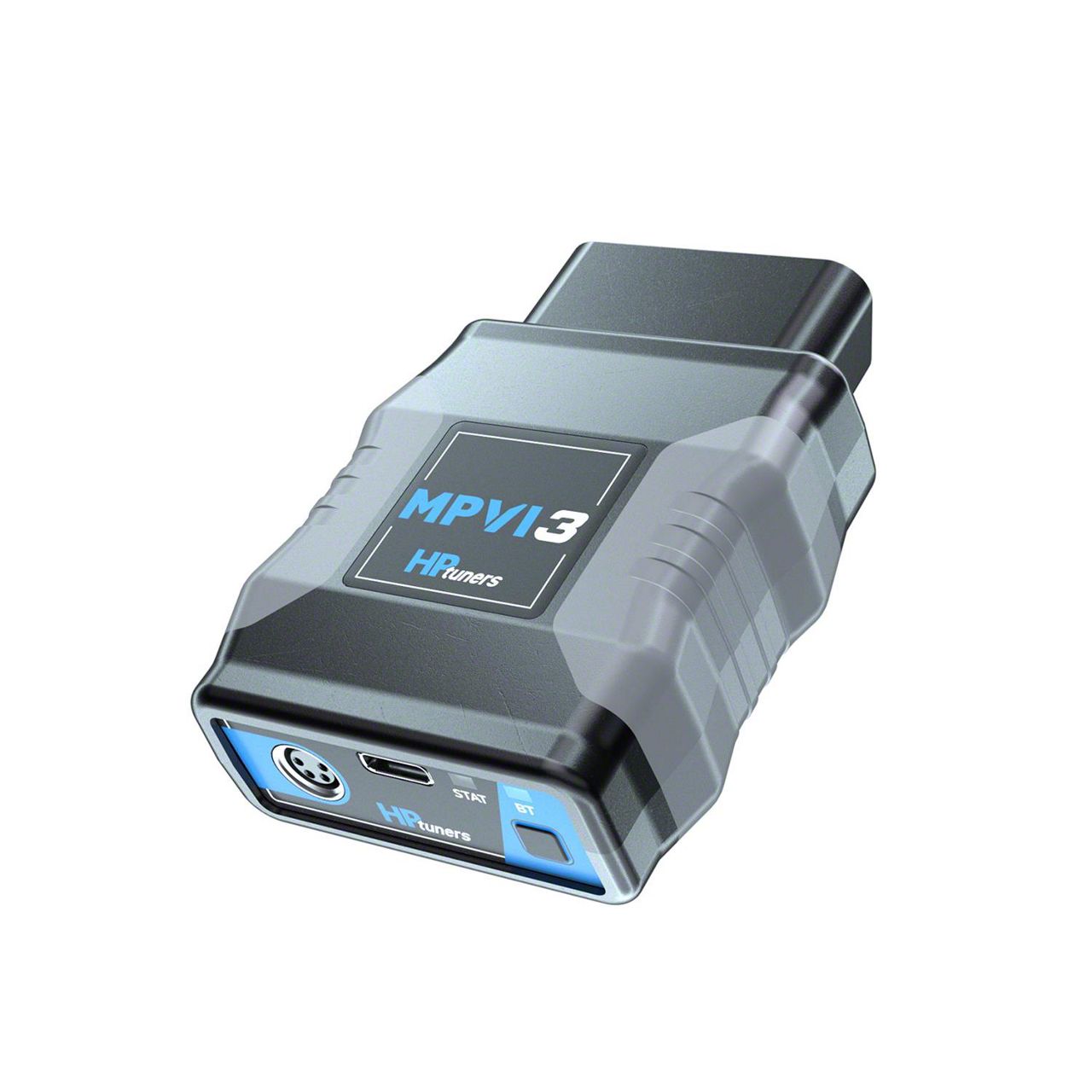

      HP Tuners MPVI3. HP Tuners MPVI3 is an OBDII compatible interface that lets you scan, log and calibrate your vehicle. Think of the MPVI3 as a tune delivery device only. The MPVI3 allows you to easily install a professionally calibrated and personalized tune on your vehicle with the ability to view and edit the tune. The MPVI3 works with the entire VCM Suite of programs, including VCM Scanner and VCM Editor. The MPVI3 Device features a 4-pin M8 Connector, a USB-C input, as well as Bluetooth 5.0 pairing.

      VCM Scanner. The most feature rich scan tool on the market, the MPVI3 when used with the VCM Scanner software will allow you to view, chart, and log diagnostic data in real time through the vehicle’s OBDII port. The HP MPVI3 can also be used as a diagnostic code reader and to configure fans, closed loop, gear select, timing, air fuel ratio and more in real time. Save yourself time and money by reading and clearing your own Diagnostic Trouble Codes (DTCs) rather than paying a dealer to do the same. It's as easy as a few simple steps using the VCM Scanner software.

      VCM Editor. The MPVI3 when used with the VCM Editor software will allow you to adjust a multitude of complex parameters such as torque strategies, spark tables, fueling, RPM limits, fan activations, transmission shift points and pressures, exhaust valve control, speedometer settings and many more. Finally, you write these changes back to the various vehicle control modules via the MPVI3. Intended for use by experienced tuners only as there are no built-in safeties.

      Optional Upgrade. Need to view more data with your MPVI3 from a wideband sensor, boost gauge, or other additional sensors? Get equipped with the PROLINK+ cable (sold separately), enabling users to wire in and record up to 2x analog signals (from a wideband sensor, map sensor, etc.) and 1x CAN bus signal simultaneously. Now standard with Pro Feature Set, MPVI3 is fully compatible with the PROLINK+ cable straight from the box. *PROLINK+ is not required for MPVI3. The PROLINK+ cable must be wired in for use.

      Application. This HP Tuners MPVI3 Tuner with 4 Universal Credits is designed to fit 2020 3.5L EcoBoost Ford F-150, Excluding Limited & Raptor models. Note the MPVI3 does not include any pre-loaded tunes or calibrations.

      Fitment:

      Details

      HP Tuners M03-000-04

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) HP MPVI3 Tuning Device
      • (4) Universal Credits
      5.0

      Customer Reviews (1)

      Brand Image

      Reviews of HP Tuners Tuner products have an average rating of 4.3 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 3.5L V6 EcoBoost - 20
      • 3.5L V6 EcoBoost Limited - 20
      • 3.5L V6 EcoBoost Raptor - 20
