GruvenParts Brass Power Folding Mirror Gear (09-14 F-150 w/ Standard Mirrors)Find parts that fit my vehicle

Item T585347
Product Image
Verify parts fit and get product recommendations.
F-150 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$29.99 each

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

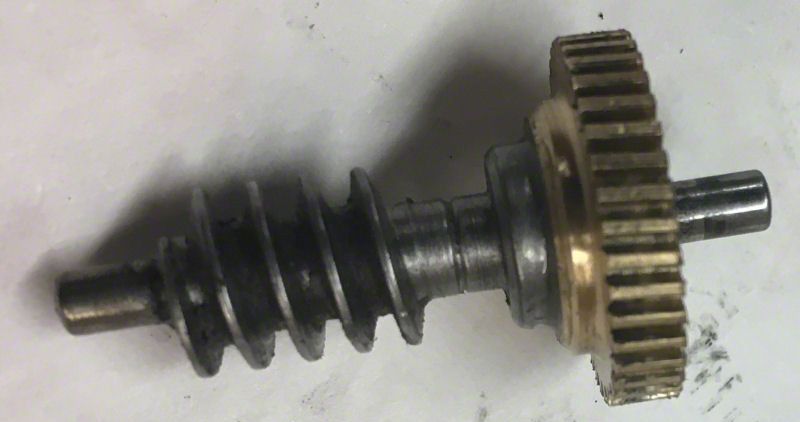

      • GruvenParts Brass Power Folding Mirror Gear
      • Precision Machined for Durability
      • Replaces OEM Plastic Gear
      • Made from High-Quality Brass
      • Improves Power Folding Mirror Function
      • Robust and Wear-Resistant
      • Enhances Longevity of Mirror Mechanism
      • Direct Fit for Easy Installation
      • Does Not Include Spiral Shaft
      • Fits 2009-2014 Ford F-150 models with Standard Mirrors Models

      Description

      • Does not include the spiral shaft.
      • The gear needs to be bonded onto the existing spiral shaft.
      • 24 hour JB Weld epoxy is recommended.

      ** NOTE - YOU CAN USE ROTOR CLIP P/N TX-75ST-PA if you damage the OEM spring retaining lock ring while dismantling the unit.

      GruvenParts.com is pleased to announce this replacement strengthened BRASS spur gear for the folding mirrors on the 2009-2014 Ford F150 and 2007-2014 Ford Expedition with the non-towing power folding mirrors.  As many have discovered, the folding mirror assembly on these trucks suffers from a thin, weak, plastic spur gear mounted to the main drive shaft.  The plastic spur gear cracks at the slightest impact or just wears out over time causing an inoperable folding mirror.  Unfortunately, Ford will only sell you the complete folding mirror assembly, which is very expensive and time consuming to install.  And that time and $ would be wasted on another faulty mirror assembly with a weak, plastic spur gear that will also soon fail.

      GruvenParts.com has addressed this issue by designing a strengthened spur gear made from solid gear BRASS with a thicker cross section to eliminate the stress concentrations which cause fatigue cracking. Our solid brass spur gear is intended to be installed on the OEM worm shaft using epoxy.  We have thoroughly tested our redesigned spur gear using an OEM mirror assembly and computerized test equipment.  Our test samples barely showed any wear whatsoever, and the testing did include random wacks against the mirror, jamming the mirror operation as it was folding, and manually stressing the mechanism all in an attempt to break the gear.  Each sample was tested approximately 5,000 open/close cycles.

      Application. This GruvenParts Brass Power Folding Mirror Gear fits 2009-2014 Ford F-150 models equipped with Standard Mirrors. Does not include the spiral shaft.

      Fitment:

      GruvenParts F150

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Folding Mirror Gear
