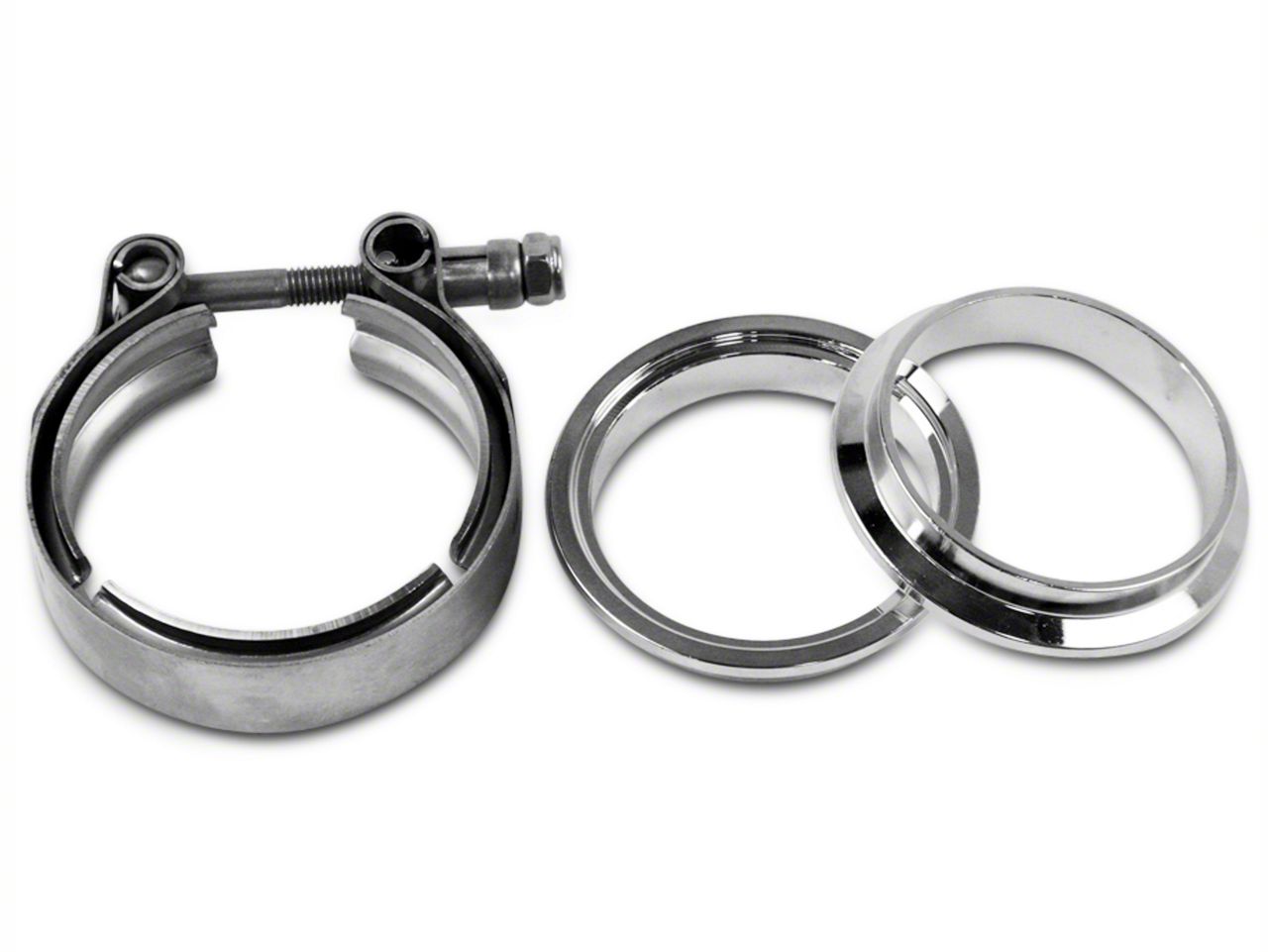

Granatelli Motor Sports 2.50-Inch Mating Male to Female Interlocking Flange with V-Band Exhaust Clamp; Stainless Steel (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item T530962
$60.15
On Sale
-10% $60.15 kit Was $66.83
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Specialty Exhaust Clamps, Interlocking
- Stainless Steel Including Hardware
- 2.5in (63mm)
- Polished Stainless
- Sold as a Set For One Exhaust Connection
- Stainless V-band Clamp Included
- Allows For Easy Disassembly Once Installed on an Exhaust
- Provides Quick and Easy Installation For Frequent Exhaust Removal and Installation
- Direct Bolt-On Design
- Any 2.5in (63mm) Exhaust
Description
Interlocking Flanges. The Granatelli Motorsports Male to Female interlocking flanges with V-Band clamp is a necessity for quick and easy removal and installation of exhaust systems. Splice this set up in before the muffler, and pair it with a Granatelli Motorsports 45 degree turn down for extra performance at the track. Install the Interlocking flanges at the header collector to allow for complete exhaust swaps with ease. Removal and installation is a breeze with the easy to use V-Band clamp, and reduce the chance of leaks with the interlocking system.
Durable Design. Made out of durable and corrosion resistant stainless steel, this interlocking flange system is ready to make a lasting difference on your exhaust system. To complement the interlocking flanges, the V-Band clamp is also made out of stainless steel to avoid breaking bolts when removing the clamp, and ensuring proper function for time to come.
Installation. To install the interlocking flanges, both sides are required to be welded to the existing exhaust system. Start by mating both sides of the flanges, lock in place with the V-Band clamp. Tack the flanges to the exhaust pipe and remove the V-Band clamp. Now the flanges can be finished welded. Once welded, the V-Band clamp allows for quick and easy removal and installation.
Application. The GMS 2.5 in. Mating Male to Female Flange w/ V-Band Exhaust Clamp - Stainless Steel fit 1997-2025 Ford F-150 models.
Durable Design. Made out of durable and corrosion resistant stainless steel, this interlocking flange system is ready to make a lasting difference on your exhaust system. To complement the interlocking flanges, the V-Band clamp is also made out of stainless steel to avoid breaking bolts when removing the clamp, and ensuring proper function for time to come.
Installation. To install the interlocking flanges, both sides are required to be welded to the existing exhaust system. Start by mating both sides of the flanges, lock in place with the V-Band clamp. Tack the flanges to the exhaust pipe and remove the V-Band clamp. Now the flanges can be finished welded. Once welded, the V-Band clamp allows for quick and easy removal and installation.
Application. The GMS 2.5 in. Mating Male to Female Flange w/ V-Band Exhaust Clamp - Stainless Steel fit 1997-2025 Ford F-150 models.
Shop All Truck Parts And Accessories
Shop All Truck Exhaust
Shop All Truck Exhaust Accessories
Granatelli Motor Sports 308525-1
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Female Flange
- (1) Male Flange
- (1) V-Band Clamp
